BatteryMINDer ® Models 12248 & 24041
Rev. C-082713 Page 14 P/N VDC12248/24041-MNL

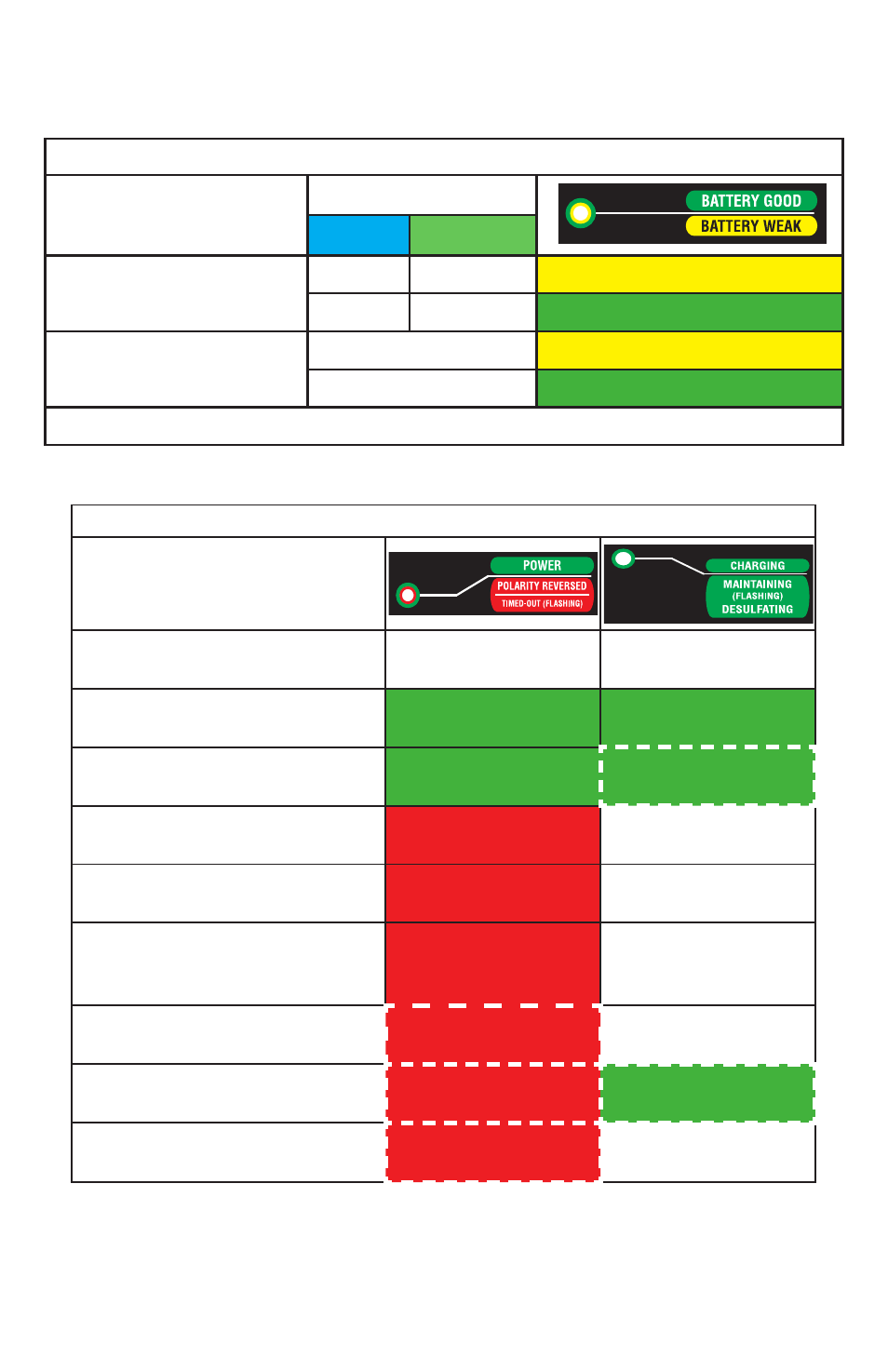

LED INDICATOR FUNCTIONS
Battery Condition Table
Battery Condition
Battery Voltage (Vb)
Battery Condition Indication
12248 24041
BEFORE full charge
<11 <22
>11 >22
AFTER full charge
Low Voltage
Normal Voltage
*To REBOOT: Disconnect A.C. wall power, disconnect D.C. Battery power and wait 10 seconds
LED Status Table
LED Status
(Power/Error and Charging/
Maintaing LEDs)
POWER
ERROR
CHARGE - FLOAT
A.C. power disconnected, battery
connected correctly
OFF OFF
At SoftStart mode, Bulk charge mode
or Absorption mode
ON ON
Float charge mode ON FLASHING
A.C. power connected Reversed
Battery Polarity
ON OFF
A.C. power connected, charger out-
put clip shorted
ON OFF
A.C. power connected, battery
voltage <10.5V ( 12248 ) or <21.0V
( 24041 )
ON OFF
Timed-out when in SoftStart or Bulk
mode
FLASHING OFF
Timed-out when in Absorption mode
& Forced to Float mode
FLASHING FLASHING
Battery Fault / Battery Weak FLASHING OFF
