BatteryMINDer © Model 12248-A-ODY
Rev. D-050509 Page 12 P/N VDC12248-A-ODY-MNL

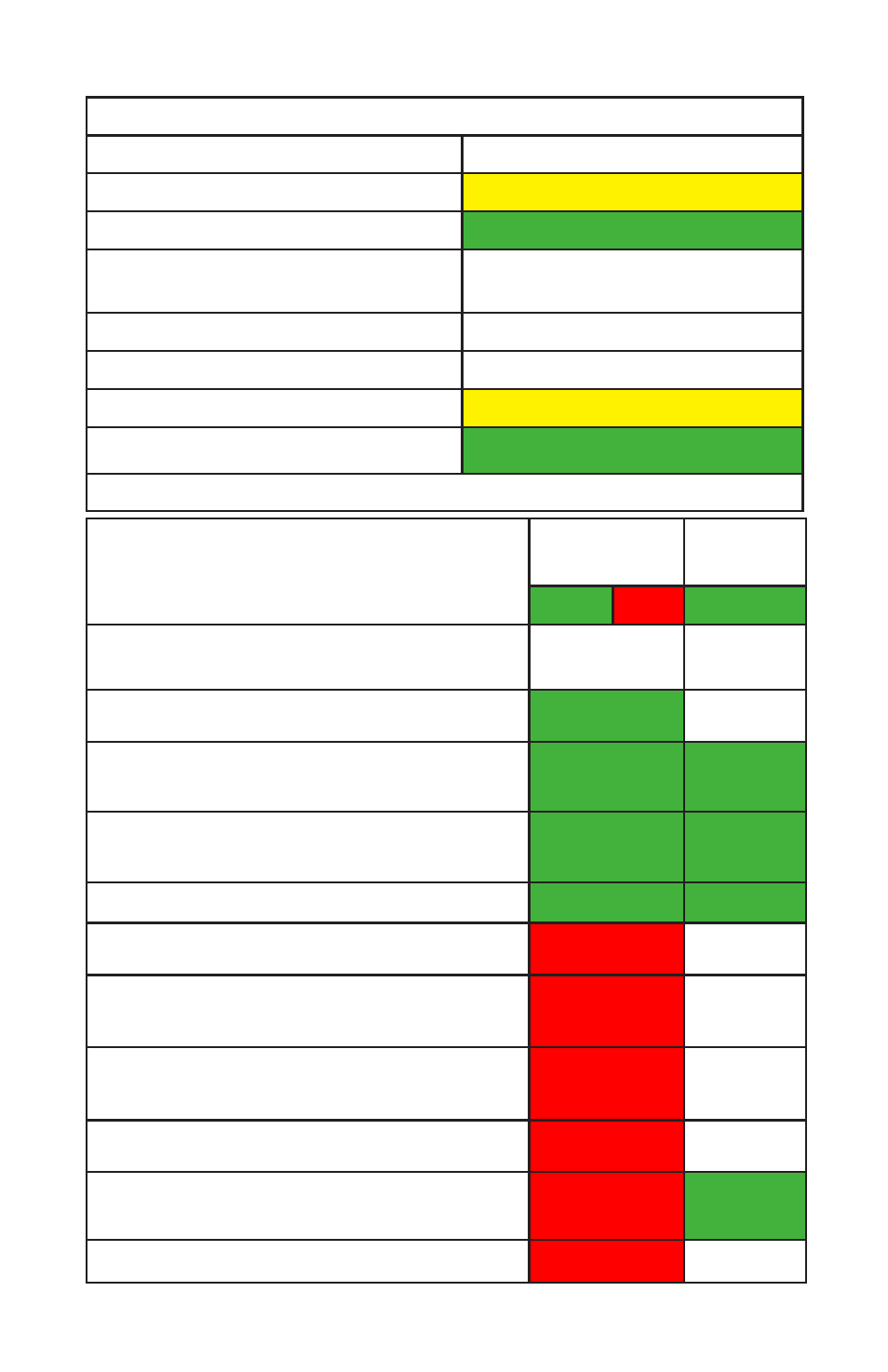

LED INDICATOR FUNCTIONS - TABLES 3 (TOP) &4 A&B (BOTTOM)
Battery Condition Indication
Battery connected before charge:Vb<11V YELLOW
Vb<11V
GREEN
If pressing Reset Button in the charging
stage
STOPS CHARGING AND ALLOWS
RESET OF ALL SELECTIONS
Battery sulphation checked: Vb<11V YELLOW
Vb<11V GREEN
Battery sulphation checked: Vb<12.85V* YELLOW
Vb<12.85V*
GREEN
*12.85-V for AGM-ODYSSEY battery
LED Status - (Power / Error and Charge LEDs)
POWER /
ERROR
CHARGE
- FLOAT
GREEN RED GREEN
A.C. power disconnected, battery connected
correctly
OFF OFF
A.C. power connected, battery connected GREEN OFF
A.C. power connected, battery connected (press
start button)
GREEN ON
At Soft Start mode, Bulk charge mode,
Absorption mode
GREEN ON
In Sulphate check mode Float charge mode GREEN FLASH
A.C. power connected Reversed Battery Polarity RED ON OFF
A.C. power connected, charger output Clip
shorted
RED ON OFF
A.C. power connected, battery voltage is less
than 3V
RED ON OFF
Timed-out when in SoftStart or Bulk mode RED FLASH OFF
Timed-out when in Absorption mode & Forced
to Float mode
RED FLASH FLASH
Battery Fault / Battery Weak RED FLASH OFF
