B&K Precision 310 - Datasheet - Manual

Digital Milli-Ohm Meter
Model 310
Data Sheet
www.bkprecision.com Technical data subject to change
© B&K Precision Corp. 2012
v0913122012

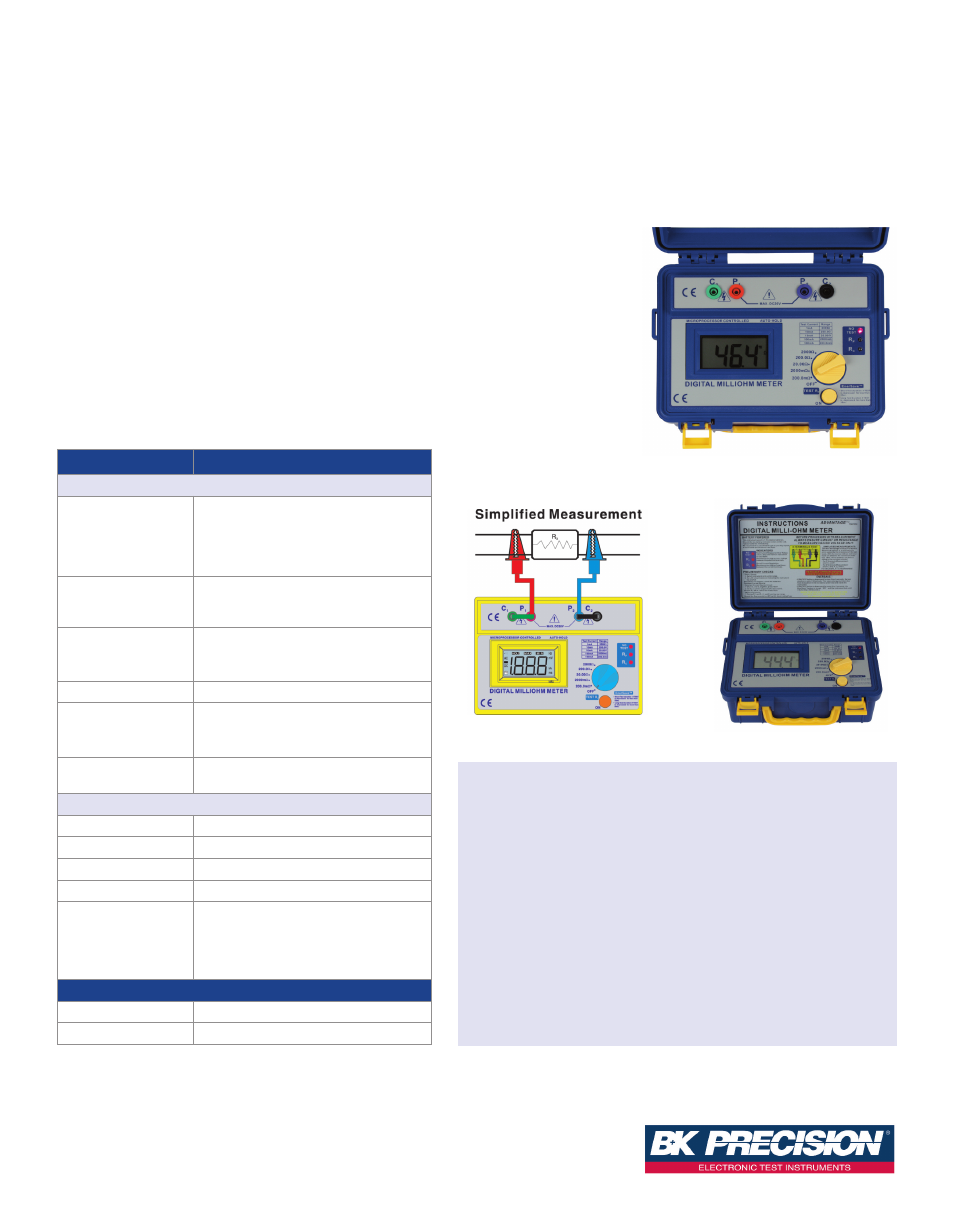

The model 310 Digital Milli-Ohm Meter is used
to ensure continuity and integrity of a wire,
cable, conduit or any electrical connection. The
310 has a display resolution of 100 micro-ohms
and has a professional four wire Kelvin test lead
set included to ensure accurate readings. The
heavy duty case has a rubber seal to make the
unit water resistant and a convenient shoulder
strap. Features & Benefits
■ Four wire Kelvin lead measurements
■ Over-voltage and over-temperature protection
■ 5 ranges with 100 µΩ max. resolution
■ Water resistant case with shoulder strap
■ Auto Power Off
■ IEC/EN 61010-1 / CE
■ Included: 4-wire Kelvin leads, carrying case
with shoulder strap and batteries
Specifications 310
Electrical
Measuring ranges
0-200.0 mΩ in steps of 100 µΩ
0-2000 mΩ in steps of 1 mΩ
0-20.00 Ω in steps of 10 mΩ
0-200.0 Ω in steps of 100 mΩ
0-2000 Ω in steps of 1 Ω
Accuracy
±0.5% of reading ±2 digits over the operating
temperature range -15° C to +55° C,
with the supplied test leads.
Test current
1 mA => 2000 Ω range
10 mA => 200 / 20 Ω ranges
100 mA => 2000 m / 200 mΩ ranges.
Test current accuracy ±0.3%
Protection fuses
Supply: 1.5 A, HBC, 5 x 20 mm, DIN
Current: 1 A, HBC, 5 x 20 mm, DIN
Voltage: 0.5 A, HBC, 5 x 20 mm, DIN
Safety
LVD BS EN 61010-1
EMC BS EN 50081-1, BS EN 50082-1
Mechanical
Bump test IEC68-2-29
Vibration test IEC1010, clause 8.3
Drop test IEC1010, clause 8.4
Impact test IEC1010, Clause 8.2
Rated environmental
conditions
Indoor use
Pollution degree 2
Altitude up to 2000 meter
Relative humidity 80% max.
Ambient temperature 0°C~40° C
One Year Warranty
Weight 3.4 lbs (1.542 kg)
Dimensions (WxHD) 9.82” x 4.33” x 7.48” (250 x 110 x 190 mm)
The model 310 Digital milli-ohm meter, with its measuring range of 100 µΩ
to 2000 Ω, is suitable for a wide range of applications such as:
- Measuring the winding resistance of electric motors, generators and transformers
- Bond testing in mines, aircraft, railways, ships, domestic and industrial wiring
installations
- Measuring the ring main continuity testing in industrial and domestic wiring i
installations
- Measuring resistance in electronic equipment such as shunts, pcb tracks, switch
and relay resistance
- Checking compression joints on overhead lines
- Testing and maintenance of switchboard /sub-station equipment on such items
as fuses, joints, contacts and bonds
Applications
