Data Sheet
Model 302
Phase & Motor Rotation
Meter

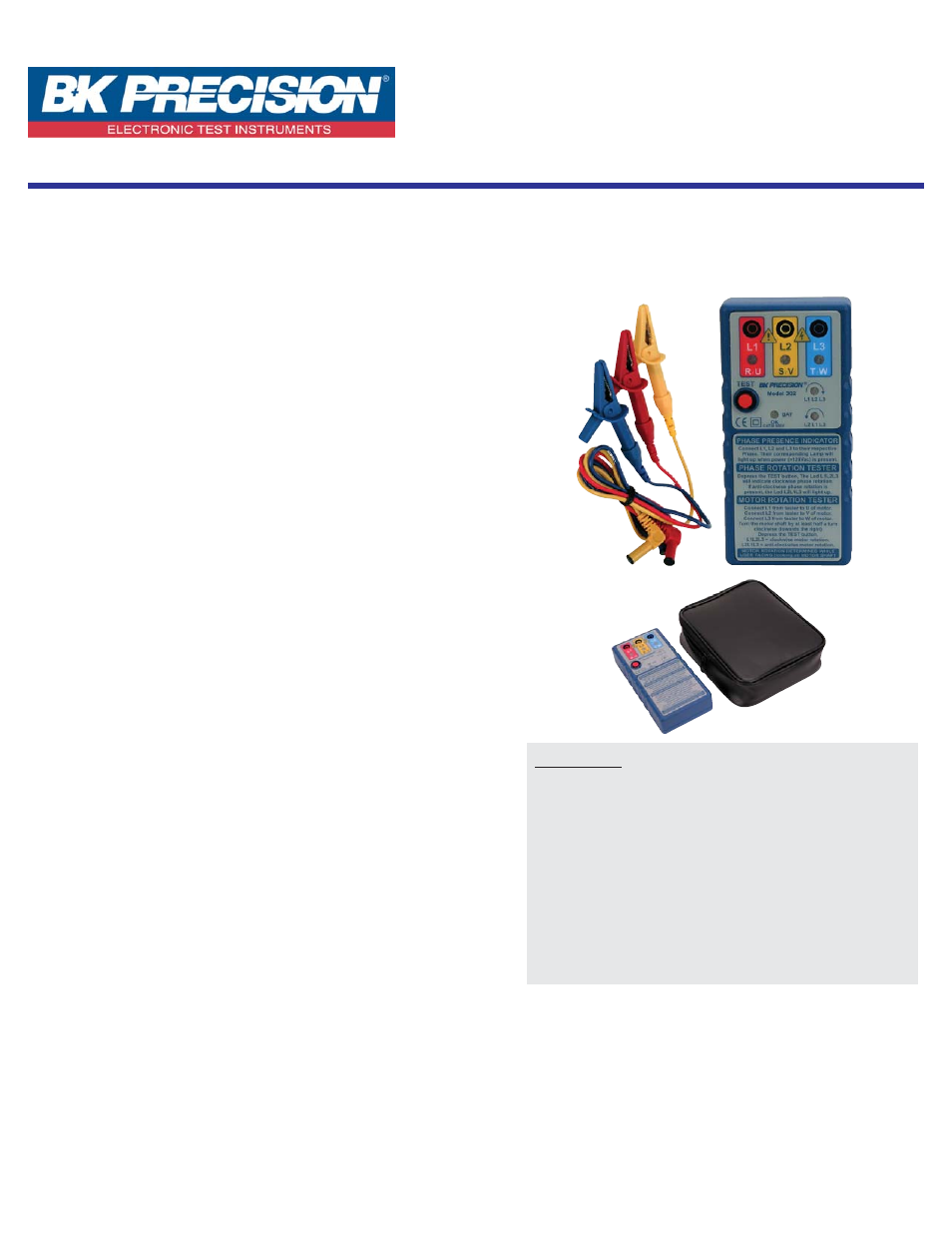

Phase & Motor Rotation Meter
Model 302
The model 302 is a 3 phase presence and rotation meter combined with a 3
phase motor rotation tester. It is the quickest and easiest way for servicing,
repairing and electrical maintenance of 3 phase systems and 3 phase rotating
machinery. It can be utilized on a 3 phase powered system (the supply side)
or on a three phase un-powered motor (the load side) without having to
worry about damage to the tester. When utilized on a 3 phase powered
system, the instrument is then utilized as a 3 phase presence and rotation
indicator. When utilized on a three phase un-powered motor, the instrument
is then utilized as a 3 phase motor rotation tester. When utilized on a 3
phase powered system, this instrument is a rotary field indication instrument
which display all three phase by lighting up it's corresponding LED. It
displays the rotation (clockwise or counter-clockwise) on a LED. When
utilized on a 3 phase un-powered motor, it is also possible to determine the
motor connections U, V, W without a live circuit to avoid subsequent
damages of e.g. pumps to reversed motor rotation. It displays the rotation
(clockwise or counter-clockwise) on a LED.
Features
■ Indicates Phase Presence
■ Indicates Phase Rotation
■ Indicates Motor Rotation / Wiring
■ Indicates Battery Status
■ Phase Rotation and Motor Rotation Indication works from
as low as 1Vac
■ Small and rugged enclosure
■ Phase and Motor Rotation Indicator works from as low
as 1Vac
■ Color Coded test Leads
■ Phase Presence Indication from as low as 100Vac
■ Very Low Consumption
■ F u s e d
■ Lightweight, Robust & Compact.
■ Works from 2 Hz to 400Hz Sine
■ IEC/EN 61010-1 CAT III / 600V / CE
Applications
With this equipment, you can, before connecting supply to load :
On the supply side ;
• Quickly verify the presence of the three phase on a
3 phase power system.
• Confirm the phase rotation on a powered 3 phase system.
On the motor side (Load) ;
• Confirm the phase rotation on a unpowered 3 phase motor 3
phase alternator.
• Confirm that each winding is connected to the terminals
of the motor, when the rotation LEDs light up.
