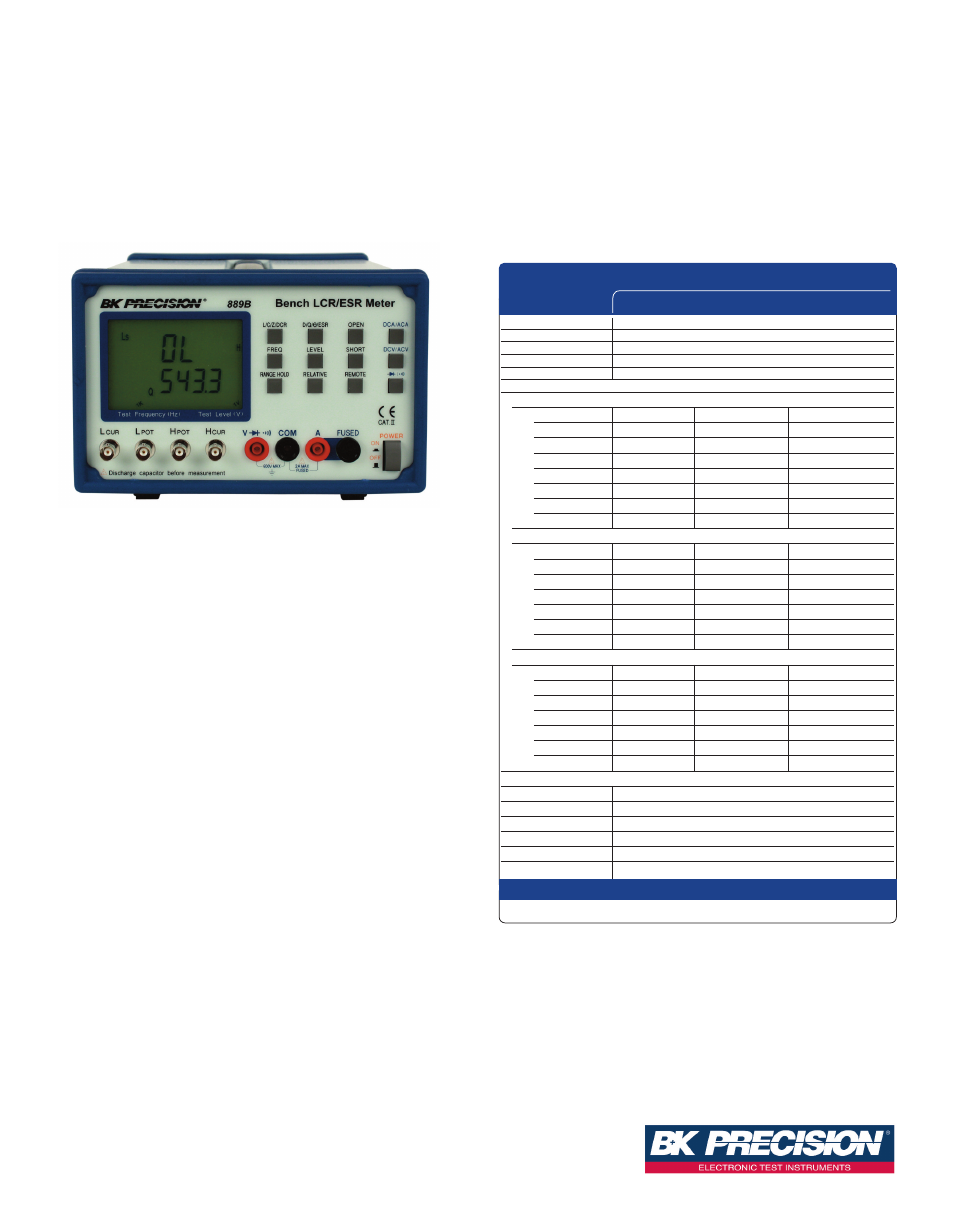

Bench LCR/ESR Meter with Component Tester
Model 889B
Data Sheet
Technical data subject to change
© B&K Precision Corp. 2012
v032212
Test Frequencies
100Hz, 120 Hz, 1 kHz, 10 kHz, 100 kHz, 200 kHz
Frequency Accuracy
±0.1%
Test Levels
1 Vrms, 0.25 Vrms, 0.05 Vrms, 1 Vdc (for DCR)
Level Accuracy
±10%
Output Impedance
100 Ω, ±5%
Measurement Range
Impedance (Z)
Frequency
Maximum
Minimum
Best Resolution
DCR
20 MΩ
0.1 Ω
0.001
100 Hz
20 MΩ
0.1 Ω
0.001
120 Hz
20 MΩ
0.1 Ω
0.001
1 kHz
20 MΩ
0.1 Ω
0.001
10 kHz
20 MΩ
0.1 Ω
0.001
100 kHz
10 MΩ
0.1 Ω
0.001
200 kHz
10 MΩ
0.1 Ω
0.001
Capacitance (C)
Frequency
Maximum
Minimum
Best Resolution
100 Hz
15.91 mF
79.57 pF
0.001
120 Hz
13.26 mF
66.31 pF
0.001
1 kHz
1.591 mF
7.957 pF
0.001
10 kHz
159.1 µF
0.795 pF
0.001
100 kHz
15.91 mF
0.159 pF
0.001
200 kHz
7.957 µF
0.079 pF
0.001
Inductance (L)
Frequency
Maximum
Minimum
Best Resolution
100 Hz
31.83 kH
159.1 µH
0.001
120 Hz
26.52 kH
132.6 µH
0.001
1 kHz
3.183 kH
15.91 µH
0.001
10 kHz
318.3 H
1.591 µH
0.001
100 kHz
31.83 H
0.159 µH
0.001
200 kHz
15.91 H
0.079 µH
0.001
GENE RAL
Operating Temperature
32˚ to 104˚F (0˚ to 40˚C)
Storage Temperature
-4˚ to 158˚F (-20˚ to 70˚C)
Relative Humidity
up to 85%
AC Operation
110V/220V AC, 60/50Hz
Dimensions (LxWxH)
11.8 x 8.7 x 5.9" (300 x 220 x 150mm)
Weight
10 lbs (4.5 kg)
Supplied Accessories:
User manual, Kelvin probe, DMM test leads, and power cord
Specifications
889B
Three Year Warranty
model
The B&K Precision 889B synthesized in-circuit bench LCR/ESR meter is a
high accuracy test instrument used for measuring inductors, capacitors and
resistors with a basic accuracy of 0.1%. Also, with the built-in functions of
DC/AC Voltage/Current measurements and Diode/Audible Continuity checks,
the 889B can not only help engineers and students to understand the
characteristics of electronics components, but also being an essential tool on
any service bench.
Features:
■
Measurement parameters: Z, L, C, DCR, ESR, D, Q, ACV, DCV, ACA,
DCA and Ø
■
Test conditions: 100 Hz, 120 Hz, 1 kHz, 10 kHz, 100 kHz, 200 kHz,
1 Vrms, 0.25 Vrms, 0.05 Vrms
■
0.1% basic accuracy
■
Dual LCD display
■
Very quick response, user-friendly
■
Fully auto/manual selection
■
DC resistance measurement
■
USB interface
