CONDENSED SPECIFICATIONS
Accuracy specifi cations valid for 1 year for ambient
temperatures within 5° C of calibration temperature.
(Contact XiTRON for complete specifi cations.)
VOLTAGE RANGE (MEASURABLE)
2000Vpk (850Vrms) max. continuous
INTERNAL CURRENT RANGE (MEASURABLE)
150Apk (30Arms) max. continuous
EXTERNAL CURRENT TRANSDUCERS (MEASURABLE)
35Vpk (15Vrms) max. continuous
VOLTAGE AND CURRENT ACCURACY
See charts to the left.
FREQUENCY MEASUREMENT ACCURACY
0.005%
CREST FACTOR ACCURACY
V: (50mV + 0.01% of pk rng)/RMS value
A: (50uA + 0.01% of pk rng)/RMS value
HARMONIC ACCURACY (VOLTAGE & CURRENT)
0.02%
WAVEFORMS
Actual, Peak Capture, Distortion, and Glitch capture
CHARTS, WITH ZOOM AND SCROLL
History, Startup and Inrush
LINE SWITCH
Max Open Voltage: 720Vpk (480Vrms)
Max Surge Current: TBD
Max On Current: 10Arms
Turn On Phase: 1° resolution
DIGITAL INTERFACES
GPIB (IEEE-488), USB (host and device), RS-232, Digital IO,
Ethernet*
(*planned)
PHYSICAL
Power Input: 12VDC @ 1.5A minimum output
Size: (HxWxD) 4.7”x 13.8”x 9.5”
(11.94cm x 35.05cm x 24.13cm)
Weight: 7.5 lbs (3.4 kg)
Operating Range: 0ºC to 55ºC, <95% RH non-condensing
Storage Range: -20ºC to 70ºC <95% RH non-condensing
Unit is supplied with one XiTRON Technologies T5 universal
external power supply, 100-240Vrms, 50-60Hz, with a 2.5mm
12VDC output plug and a three prong IEC320 AC inlet receptacle,
plus a three-prong AC power cord.
WARRANTY
Two years
9770-A Carrol Centre Road | San Diego, CA 92126 | 858.530.8099 phone | 858.530.8077 fax
www.xitrontech.com | [email protected] | [email protected]

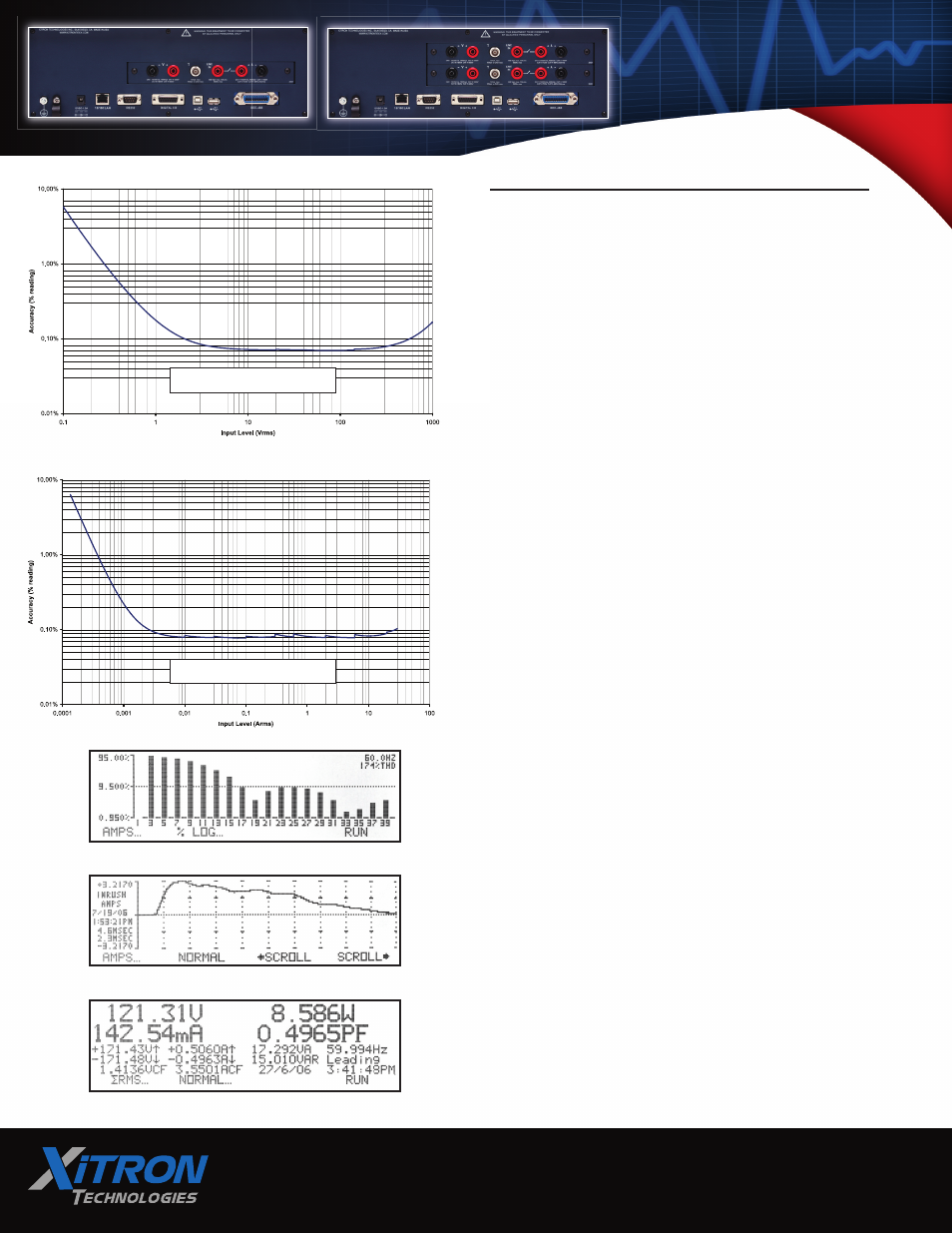

2801 2802
Current, Voltage and Power Harmonics Barcharts (to 100th)
Current and Voltage Inrush Charts
Numerics Results Screens
1 year Specifi cation, AC Voltage, Autorange, CF <1.5, Line or LF Measurements
Line Measurements: Add 0.05% per KHz
LF Measurements: Add 0.3% per KHz
1 year Specifi cation, AC Current, Autorange, CF <2.5, Line or LF Measurements
Line Measurements: Add 0.05% per KHz
LF Measurements: Add 0.3% per KHz
