Data Sheet

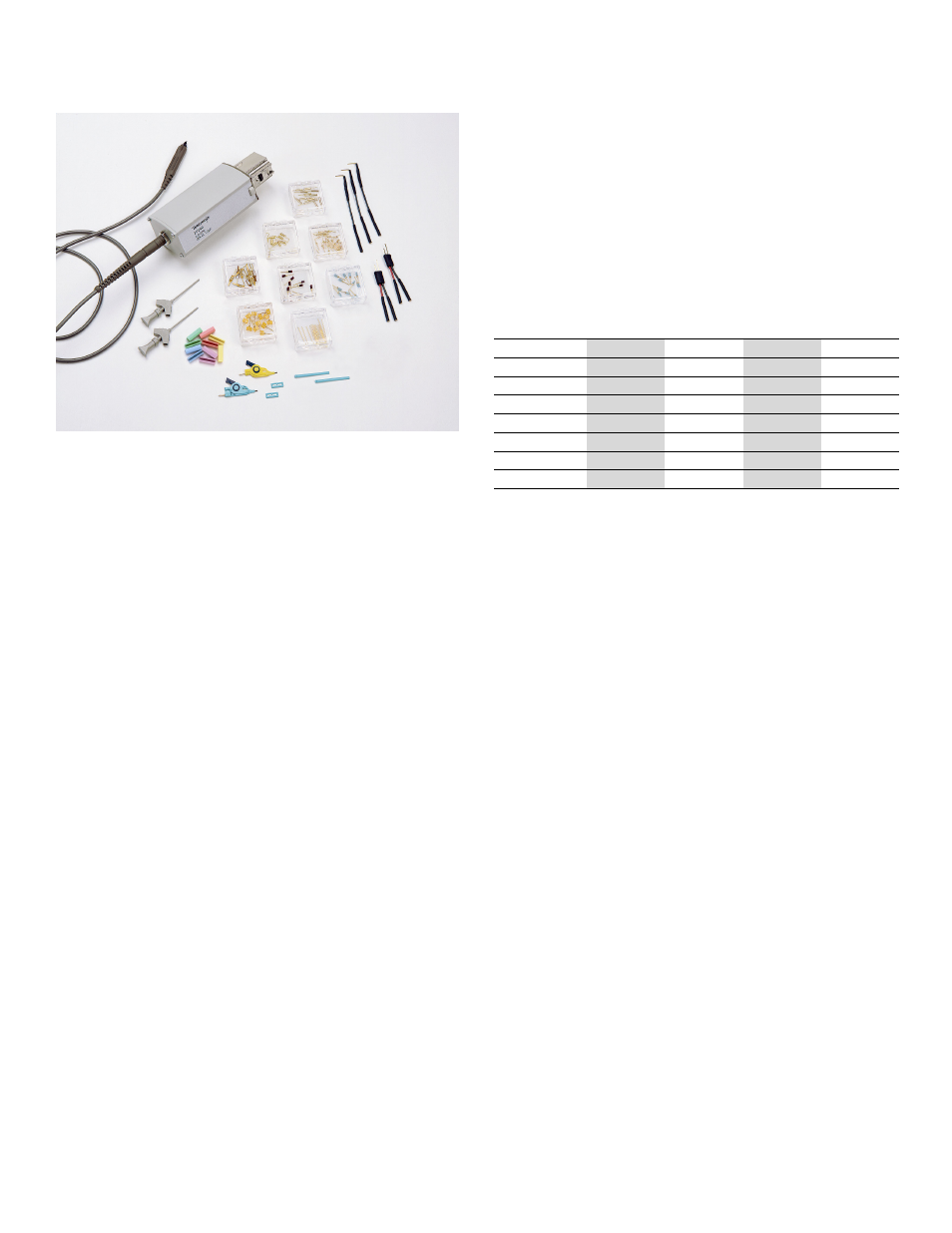

TekConnect Interface - P7240
The P7240 with TekConnect interface is a high-performance active probe
with high bandwidth and low-capacitive loading to make it the probe of
choice for demanding design applications, such as Rambus, DDR DRAM
and AGP. This probe and others in the family are also suited for applications
in the communication industry, for measurements on Fibre Channel and
Gigabit Ethernet. With the TekConnect interface, you can be assured
that maximum signal integrity is maintained to meet present and future
bandwidth needs.
TekProbe BNC Interface - P6249 and P6241
The P6249 and P6241 have similar performances to the P7240. Primarily
used for the TDS694C and TDS794D performance scopes, these probes
may also be used with conventional BNC interfaces through the Tektronix
1103 TekProbe Power Supply. The P6249 provides 4 V
p-p
dynamic range.
The P6241 offers a 10X attenuation and a 8 V
p-p
dynamic range plus has a
lower input capacitance due to the unique probe tip. A full complement of
versatile probe tip accessories helps users connect to the wide range of
devices faced by digital designers.
SMA Interface/Sampling Oscilloscopes - P6209
The P6209 provides a high-bandwidth, low circuit loading probing solution
for the CSA/TDS8000B sampling oscilloscopes with TekProbe SMA input
connection. Based on the P6249 probe design, the P6209 has similar
performance and a similar small probe head for access to today’s fine-pitch
SMDs and connection points.
Characteristics
Model
Characteristic P7240 P6249 P6241 P6209
Rise Time <120 ps <120 ps <120 ps <120 ps
Bandwidth 4.0 GHz 4.0 GHz 4.0 GHz 4.0 GHz
Attenuation 5X 5X 10X 5X
DC Resistance 20 kΩ 20 kΩ 40 kΩ 20 kΩ
Input Capacitance <1 pF <1 pF <0.5 pF <1 pF
Dynamic Range ±2 V ±2 V ±4 V ±2 V
Offset Range ±5 V ±5 V ±10 V ±5 V
Interface TekConnect™ TekProbe ® II TekProbe ® II TekProbe SMA
Ordering Information
P7240
4.0 GHz Active Probe.
P6249
4.0 GHz Active Probe.
P6241
4.0 GHz Active Probe.
P6209
4.0 GHz Active Probe.
Warranty – One year.
User Manuals –
P7240: Order 071-0759-xx.
P6249: Order 071-0538-xx.
P6241: Order 071-1188-xx.
P6209: Order 071-0634-xx.
2 www.tektronix.com
