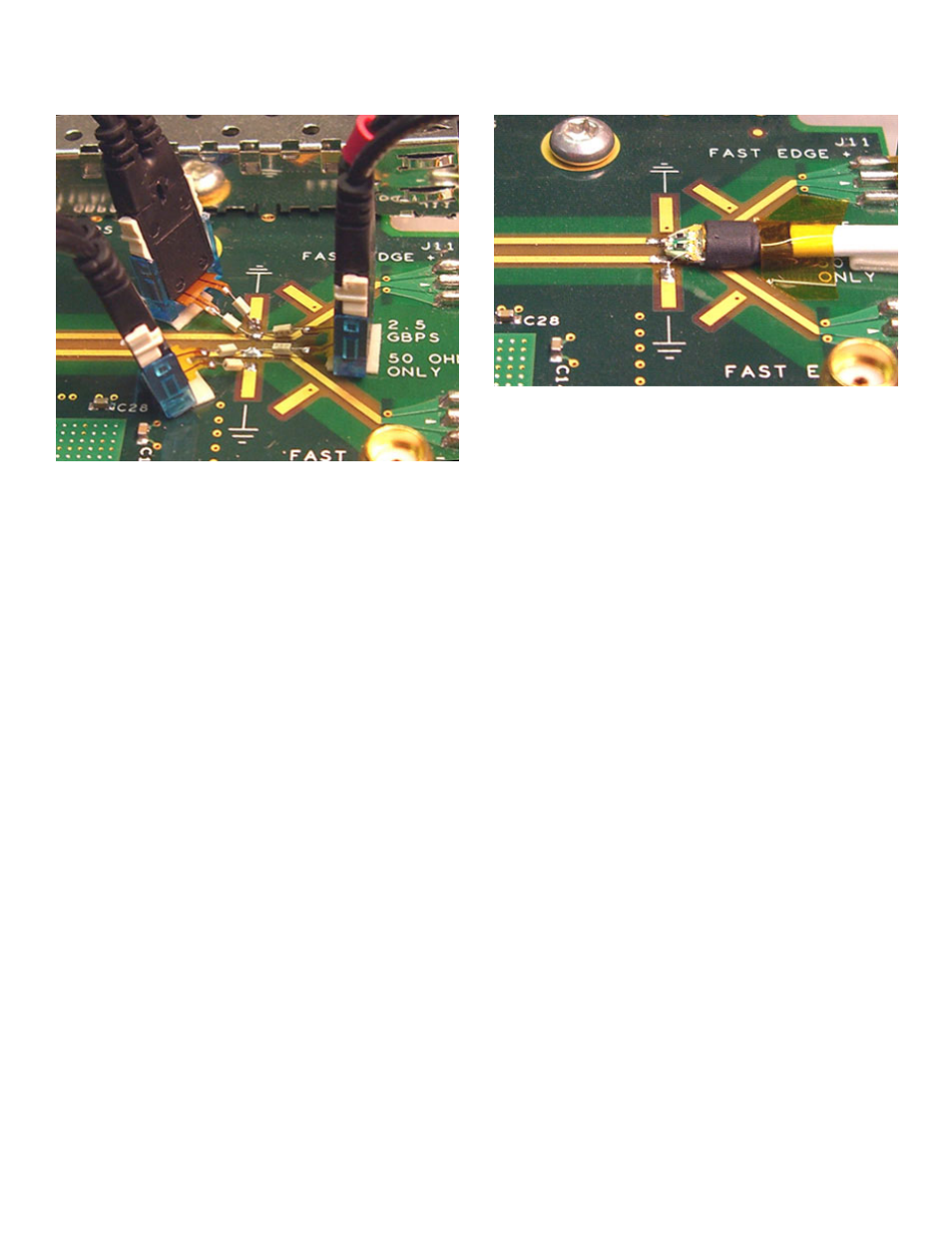

Before TriMode: 1 Probe for Differential; 2 Probes for SE and Common Mode; or 1 Probe
Soldered and Resoldered 3 times; 2 Probes for Common Mode.
TriMode™ Probing, Connectivity, and
Performance
TriMode™ Probing Architecture
One-probe setup makes differential, single ended, and common mode
measurements accurately and definitively.
Tektronix is a known leader when it comes to signal fidelity and signal
acquisition. Building on our history of market-leading innovations in probing,
After TriMode (P75TLRST): 1 Probe for Differential, Single Ended, and Common Mode,
with only 1 setup required.
we invented a revolutionary probing architecture called “TriMode™ Probing”
that defines the next-generation industry benchmark for usability and signal
fidelity. This architecture changes the rules of probing and allows you to
work more effectively and efficiently. By enabling unique functionality, the
P7500 Series TriMode probes allow you to switch between differential,
single ended, and common mode measurements without moving the probe
from its connection points.
Improved productivity is achieved by reducing setup time. One setup can be
used to make the three different types of measurements all with the press
of a button. The TriMode Probe architecture for the P7500 Series probes
continues the Tektronix tradition of high-bandwidth and low-DUT loading
while providing improved connectivity and value.
