A d v a n c e d Te s t S o l u t i o n s f o r E M C

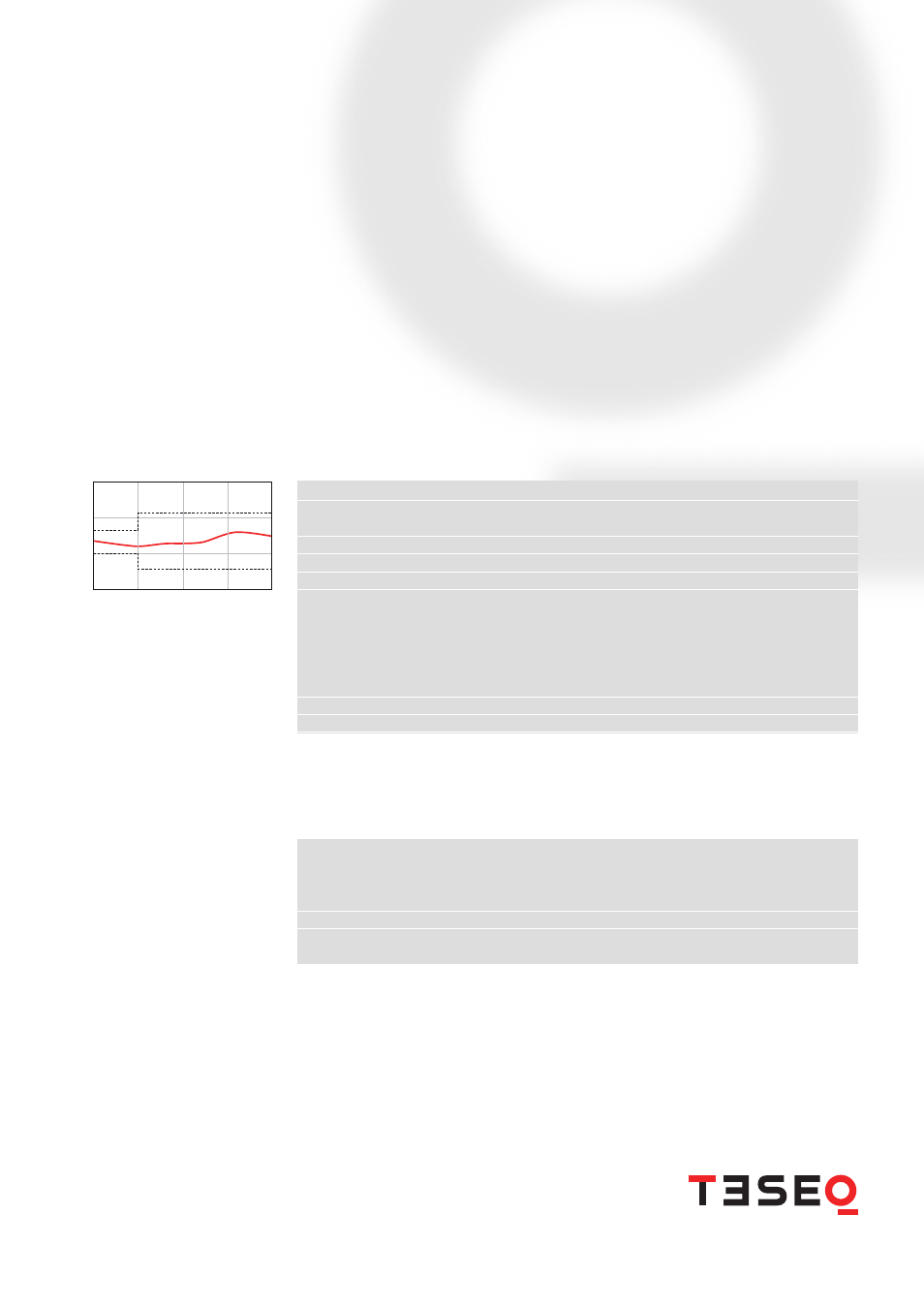

1∙10 9 2∙10 9 3∙10 9 4∙10 9
Frequency [Hz]
Insertion loss [dB]
-47
-48
-49
-50
© February 2011 Teseq ®
Specifications subject to change without notice.
Teseq
® is an ISO-registered company. Its products
are designed and manufactured under the strict
quality and environmental requirements of the ISO
9001. This document has been carefully checked.
However, Teseq
® does not assume any liability for
errors or inaccuracies.
Teseq AG
Nordstrasse 11F 4542 Luterbach Switzerland
T + 41 32 681 40 40 F + 41 32 681 40 48
[email protected]
www.teseq.com
691-029A February 2011
Technical specifications
Variation of insertion loss <0.2 dB up to 1 GHz
(S21 parameter): <0.3 dB up to 4 GHz
<0.5 dB up tp 6 GHz
Shunt resistance: 1.03 Ω (SMD design)
Calibration pulse amplitude: 1/2/4/8 kV
Max. pulse amplitude: 30 kV
Calibration adapter: Refl ection coeffi cient (placed face to face)
<-40 dB up to 1 GHz
<-25 dB up to 6 GHz
Insertion loss (placed face to face)
>-0.05 dB up to 6 GHz
Characteristic impedance 50 Ω ± 1 Ω up to 6 GHz
Target parts: Gold plated
Cable connectors: Type N
ESD PULSE CALIBRATION SET
MD 103
Ordering information
MD 103 MD 103 ESD target set
including: ESD target, 20 dB attenuator, high precision coax cable,
solid case with spare place for INA 103 and special screw tool,
manual, calibration certifi cate conform to ISO 17025
Optional:
INA 103
Calibration adapter including: measuring adapter with N-connector
and special screw tool
