Mechanical specifications
Size (W x H x D) (basic network): 105 x 65 x 110 mm³
(basic network with adaptors): 105 x 65 x 190 mm³
Weight: approx. 550 g
Teseq GmbH
Landsberger Str. 255 · 12623 Berlin · Germany
T + 49 30 56 59 88 35 F + 49 30 56 59 88 34
[email protected]
www.teseq.com
82-248550 E02 Sept. 2007
Impedance StabIlIzatIon network (ISn)
for unShIelded balanced paIrS
ISn t8
Application
Pin-arrangement for EIA/TIA T568B
Pair 1/ Pair 2/ Pair 3/ Pair 4/
Pin 4,5 Pin 1,2 Pin 3,6 Pin 7,8
Token ring, ISDN basic rate access / S0 RJ45 X X
ISDN primary rate access (2Mbps) RJ45 X X
10BaseT, 100BaseTX RJ45 X X
100BaseT4, 100Base VG-AnyLan, 1000BaseT RJ45 X X X X
ATM, FDDI, TP-PMD RJ45 X X
Dt. Telekom, UP0, AS400 RJ11 X
IBM 3270 RJ45 X

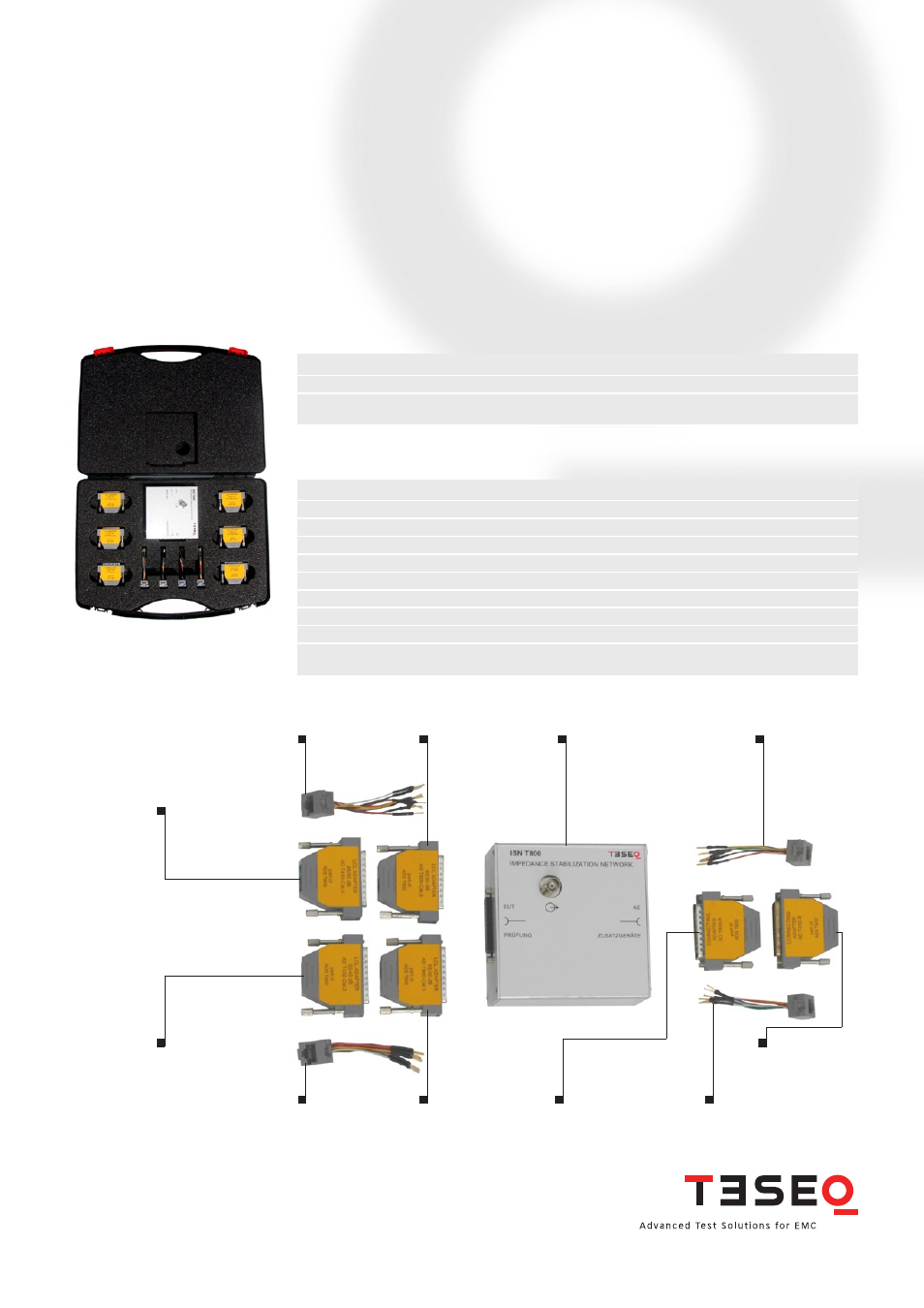

ISN T8 with adapter sets in suitcase
Adapter RJ11 to
1 mm banana LCL adapter Cat.5 Basic network ISN T800 Adapter RJ11 to
1 mm banana
Adapter RJ45 to
1 mm banana LCL adapter Cat.3 Adapter RJ45 to
1 mm banana Adapter RJ 45 for
arranging AE port
Adapter to 1 mm
banana for ar-
ranging AE port
LCL adapter Cat.5
to 1 mm banana
LCL adapter Cat.3
to 1 mm banana
