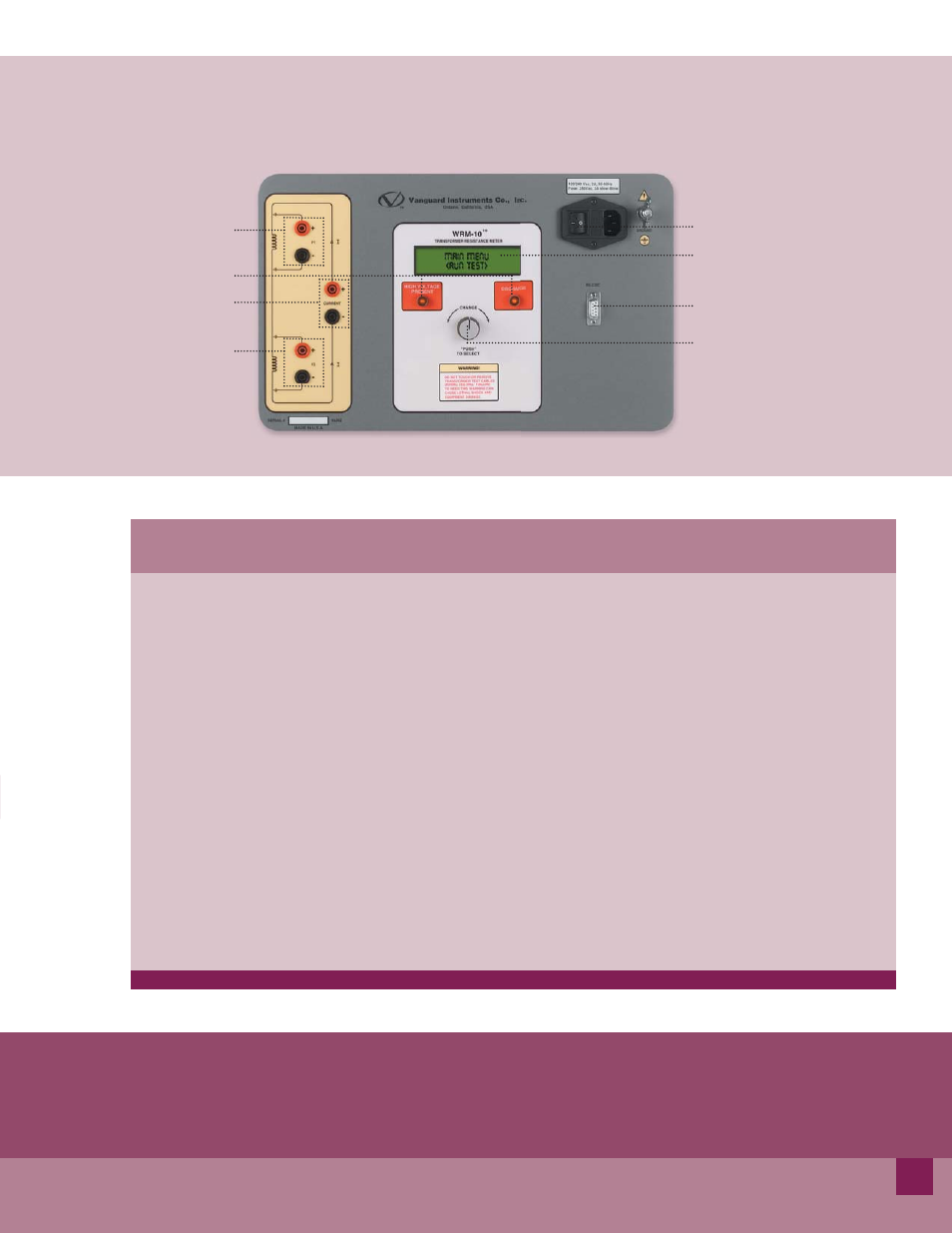

WRM-10 Controls & Indicators
Power Switch
Resistance Input
Channel #1
Warning Indicators
Function Control Knob
RS-232C Interface
(for factory diagnostics and calibration)
Back-lit LCD Screen
(16 characters by 2 lines)
Part number WRM-10
WRM-10 and cables
Part number WRM-10 CASE
WRM-10 shipping case
Part number WRM-10 50-FT CABLES
50-foot test cables
ordering information
WRM-10 specifi cations
type portable transformer winding resistance meter
physical specifi cations 17”W x 12
K”H x 10K”D, (42.6 cm x 32.0 cm x 27.0 cm); Weight: 27 lbs (12.2 kg)
input power 100 ¬ 120 Vac or 200 ¬ 240 Vac (factory pre-set), 50/60 Hz
resistance reading range 1 micro-ohm ¬ 2,000 ohms
accuracy 1 ¬ 19,999 micro-ohms:
±0.5% reading, ±1 count;
20 ¬ 999 milli-ohms:
±1% reading, ±1 count;
1 ¬ 2,000 ohms:
±1.5% reading, ±1 count
test voltage 36 Vdc max
test current range auto range, 10 Amperes max
display back-lit LCD Screen (16 characters by 2 lines); viewable in bright sunlight and low-light levels
control Single “turn-and-push” knob
computer interface RS-232C port used for factory calibration and diagnostics
safety designed to meet IEC61010 (1995), UL61010A-1, CSA-C22.2 standards
environment Operating: -10°C to +50°C (+15°F to +122°F); Storage: -30°C to +70°C (-22°F to +158°F)
humidity 90% RH @ 40°C (104°F) non-condensing
altitude 2,000 m (6,562 ft) to full safety specifi cations
cables three 50-foot test cables, ground cable, power cord and cable bag
options transportation case
warranty one year on parts and labor
NOTE : the above specifi cations are valid at nominal voltage and ambient temperature of +25°C (+77°F). Specifi cations are subject to change without notice.
Resistance Input
Channel #2
Current Output
Connectors
