TAS 100 can be applied as a standalone telephone network emulator, or as part of an automatic test
system. TAS 100 can be used to test any product that communicates over the public switched telephone
network (PSTN). Simply replace the real network with the TAS 100 Series Telephone Network Emulator
and start testing!
Modem
Manufacturing Test
TAS provides cost-effective, complete
solutions for manufacturing test of
modems and FAX devices.
PC Bus Modem Test
TAS PC-Pod TM software accessory
makes testing PC internal modems
a snap. PC-Pod
TM shuttles data
between modem ports and serial
ports, so that bus modems can be
tested by standard data analyzers
such as TAS Gemini.
Modem Evaluation
TAS 100 is the heart of a powerful,
advanced, automatic modem test
system. Test modems to the latest
industry standards.

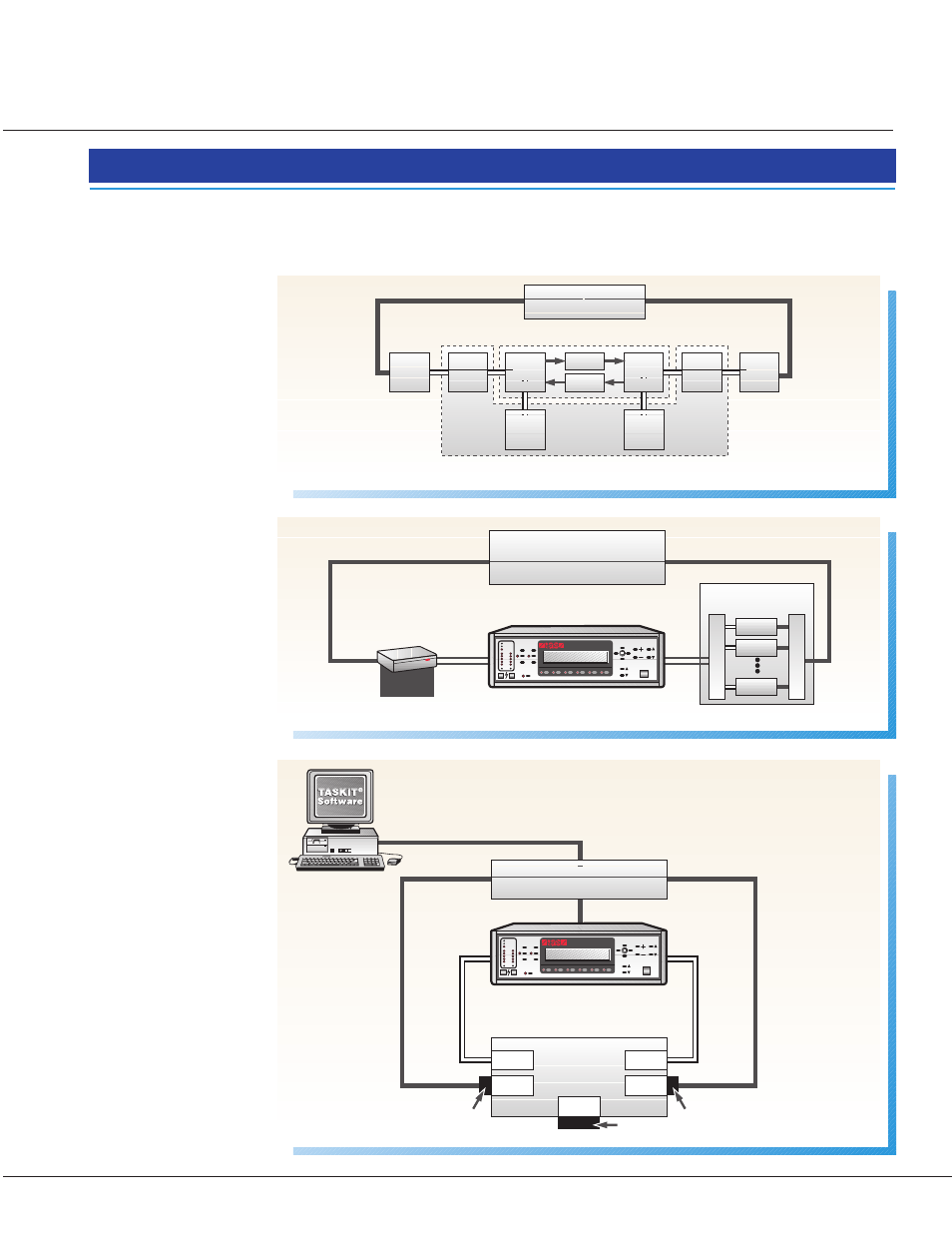

RS-232 Data RS-232 Data
TAS 100 Series Telephone Network Emulator
Modem
A
Main
Loop A1
or Pad
IMP
IMP
Main
Loop B1
or Pad
GEMINI
Dual Data Analyzer
Modem
B
Hybrid
A
Balance
Loop A2 Balance
Loop B2
Hybrid
B
TAS 240
Voiceband Subscriber Loop Emulator (VSLE)
TAS 100 Series
Telephone Network Emulator
Test Data
Reference
Modem
TAS Gemini A B
TAS 3508A
Modem Test Switch
Modem 1
Modem 2
Modem 9
Test Data
RS-232
RS-232
Data
Serial
Port
RS-232
Data
GPIB
TAS 100 Series
Telephone Network Emulator
TAS Gemini
DTE
A
DTE
B
Telephone
Line
Telephone
Line
Host PC with
PC-Pod Software
Internal
Modem
Serial
Port
Internal
Modem
Serial
Port
Parallel
Port
Modified Null
Modem Connector
Modified Null
Modem Connector
Software
Key
Line Line
B A
