Offset
Unbalanced output 0 to ±7.4 VDC (50 Ω load )
0 to ±10.0 VDC (600 Ω load )
0 to ±20.0 VDC (Hi-Z load )
Balanced output Not active
Resolution 3 digits
Accuracy
(all except pink noise)
1 % ± 25 mV (Vp+offset > 0.63 V)
1 % ± 2.5 mV (0.63 V > Vp+offset > 0.063 V)
1 % ± 250
µ V (63 mV > Vp+offset > 6.3 mV)
1 % ± 25 µ V (Vp+offset < 6.3 mV)
(pink noise)
1 % ± 200 mV (Vp+offset > 0.63 V)
1 % ± 20 mV (0.63 V > Vp+offset > 0.063 V)
1 % ± 2 mV (63 mV > Vp+offset > 6.3 mV)
1 % ± 200
µ V (Vp+offset < 6.3 mV)
Outputs
Configuration Balanced and unbalanced
Connectors Floating BNCs, banana plugs and
XLR jack
Source impedance
Balanced 50 Ω ± 3 %
150 Ω ± 2 %
600 Ω ± 1 %
Hi-Z (50 Ω ± 3 %)
Unbalanced 50 Ω ± 3 %
600 Ω ± 1 %
Hi-Z (25 Ω ± 1 Ω )
Floating voltage ±40 VDC (max.)
Digital Output
Output types AES-EBU (balanced XLR)
S/PDIF (RCA phone jack and optical)
Sample rate 32.0 kHz, 44.1 kHz and 48.0 kHz
DS360 Specifications
Stanford Research Systems phone: (408)744-9040
www.thinkSRS.com
Accuracy ±100 ppm
Output waveforms Sine, two-tones (dual sine waves)
Output frequency
(32.0 kHz) 0.001 Hz to 14.5 kHz
(44.1 kHz) 0.001 Hz to 20.0 kHz
(48.0 kHz) 0.001 Hz to 20.0 kHz
Frequency resolution 6 digits or 1 mHz (which ever
is greater)
Output amplitude
Range 0 % to 100 %
Resolution 0.00001 %
# of bits per word 16 to 20 (AES-EBU)
16 (S/PDIF)
Other Outputs
Sync TTL level (same frequency
and phase as output)
Burst out TTL pulse marks burst (TTL high
for ON time)
Trigger/gate in TTL pulse starts sweep or burst
TTL high activates gated burst
Sweep TTL pulse marks beginning of sweep
General
Computer interfaces GPIB and RS-232. All instrument
functions can be controlled.
Size 17" Ч 3.5" Ч 16.25" (WHD)
Weight 17 lbs.
Power 50 W, 100/120/220/240 VAC,
50/60 Hz
Warranty One year parts and labor on defects
in materials and workmanship
_ _
+
Power
Amplifier
Source
Resistors
Burst Level
Fine Amplitude
Control
Burst
Normal
Burst Control
Logic
Sine
Square
Distortion
Reduction
Filters
Sync
Comparator
Anti
Imaging
Filter
20 bit D/A
56002
DSP Chip
Main CPU
Display
Keys
Interfaces
Course
Attenuators
+
Attenuator
Attenuator
Ordering Information
DS360 Low-distortion function generator $2595
O360RM Rack mount kit $85

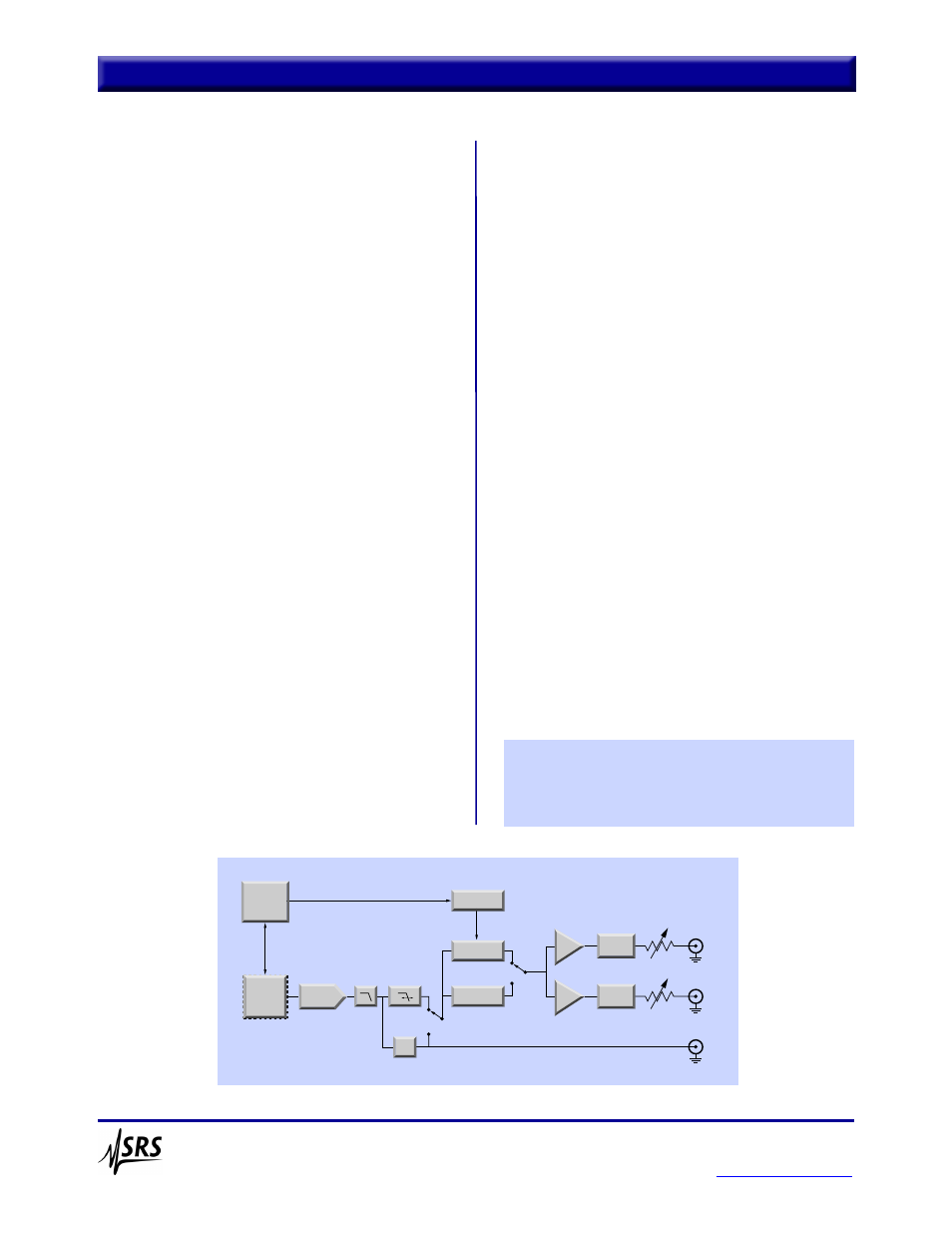

DS360 block diagram
