.01-220 MHz
Solid State &
Tetrode Tube Amplifiers
M/TCCX/SCCX
SERIES
INSTRUMENTS FOR INDUSTRY INC.
903 South Second Street, Ronkonkoma, NY 11779
Tel: 631-467-8400 • Fax: 631-467-8558 • E mail: [email protected]
www.ifi.com
Prime Power:
100/115/220/230 or 240VAC ±10% 50/60 Hz, single phase
115/208 or 200/220/230/240VAC ±10% 50/60 Hz,
three phase Wye, Delta and/or 400 Hz power is available
Mechanical
Dimensions:
See chart below
Weight:
See chart below
Cooling:
Internal forced air
Remote Operation
GPIB, RS232, optional RS422, RS485, or TTL Remote Control

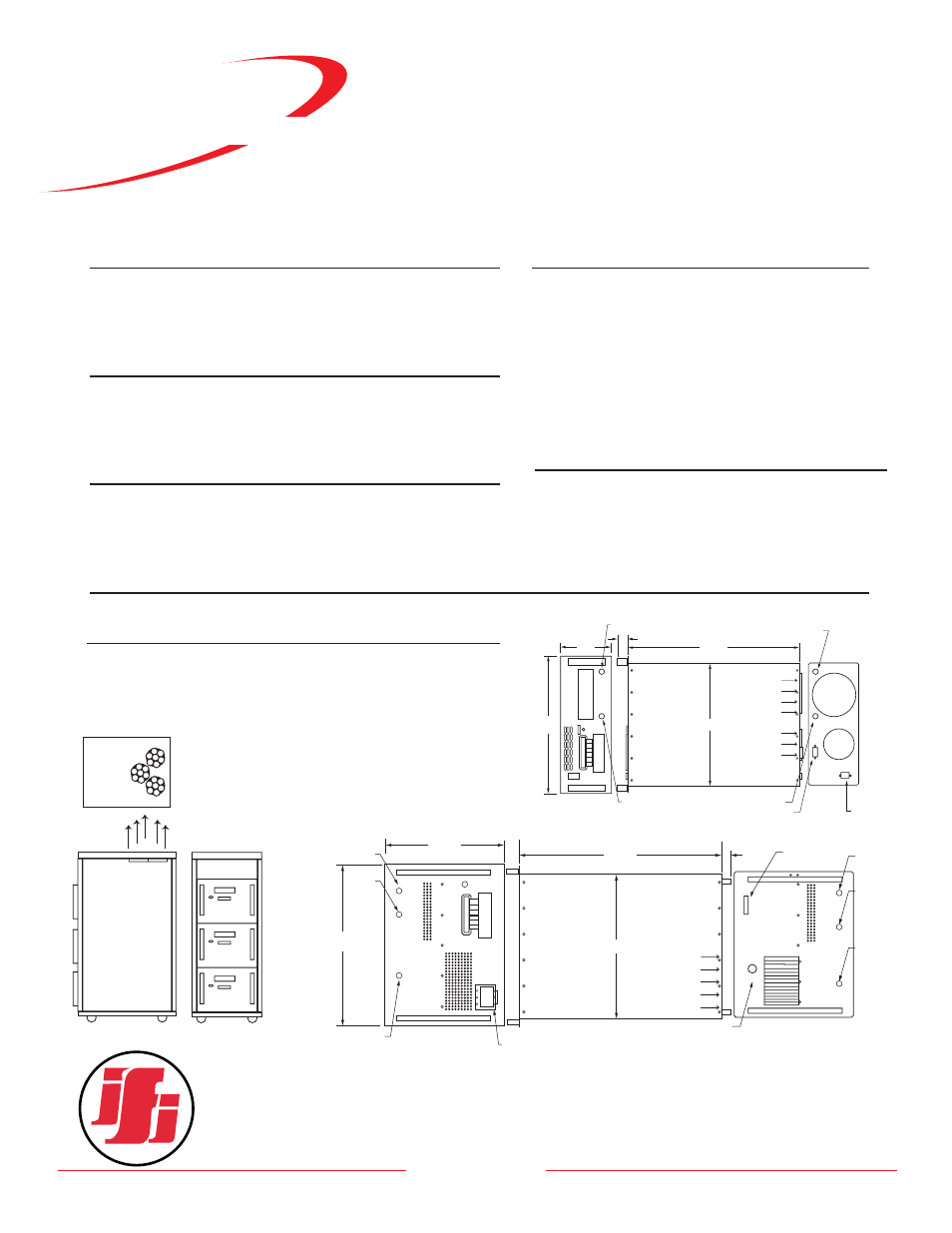

Outline Drawing:
Specifications subject to change without notice
RF Specifications
Spurious Outputs:
-40 dBc, maximum.
-50 dBc, available.
Input Impedance:
50 Ohms, VSWR 2.0:1
Output Impedance:
50 Ohms, VSWR 2.0:1
2.5:1 maximum.
Input Connector:
Type N (Female).
Output Connector:
Type N (Female)
Type SC (Female)
on over 2Kw models
Environmental
Operating Temperature: 0 - 50°C (40°C @
10,000 Feet)
Relative Humidity:
95% (non-condensing)
Operating Altitude:
10,000 feet maximum
Non-operating Temp.:
-20 to 70°C
Non-operating Altitude:
50,000 feet maximum
AIR FLOW
Type
Height
Width
Depth
Weight
(Rack Mount) A
7”
19”
24”
75 lbs.
(Rack Mount) B
14”
19”
27”
125 lbs.
(Cabinet)
C
72”
22”
30”
700 lbs.
(Cabinet)
D
80”
27”
30”
800 lbs.
To view typical performance data go to www.ifi.com/typdata.htm
17.00
1.50
27.00
CIRCUIT BREAKER
AIR EXHAUST
14.00
19.00
RF
SAMPLE
RF INPUT
RF OUTPUT
RF INPUT
REMOTE
PRIME POWER
RF SAMPLE
RF OUTPUT
17.00
7.00
19.00
24.00
1.400
AIR EXHAUST
RF OUTPUT
RF INPUT
AIR EXHAUST
RF INPUT
RF OUTPUT
REMOTE
PRIME POWER
