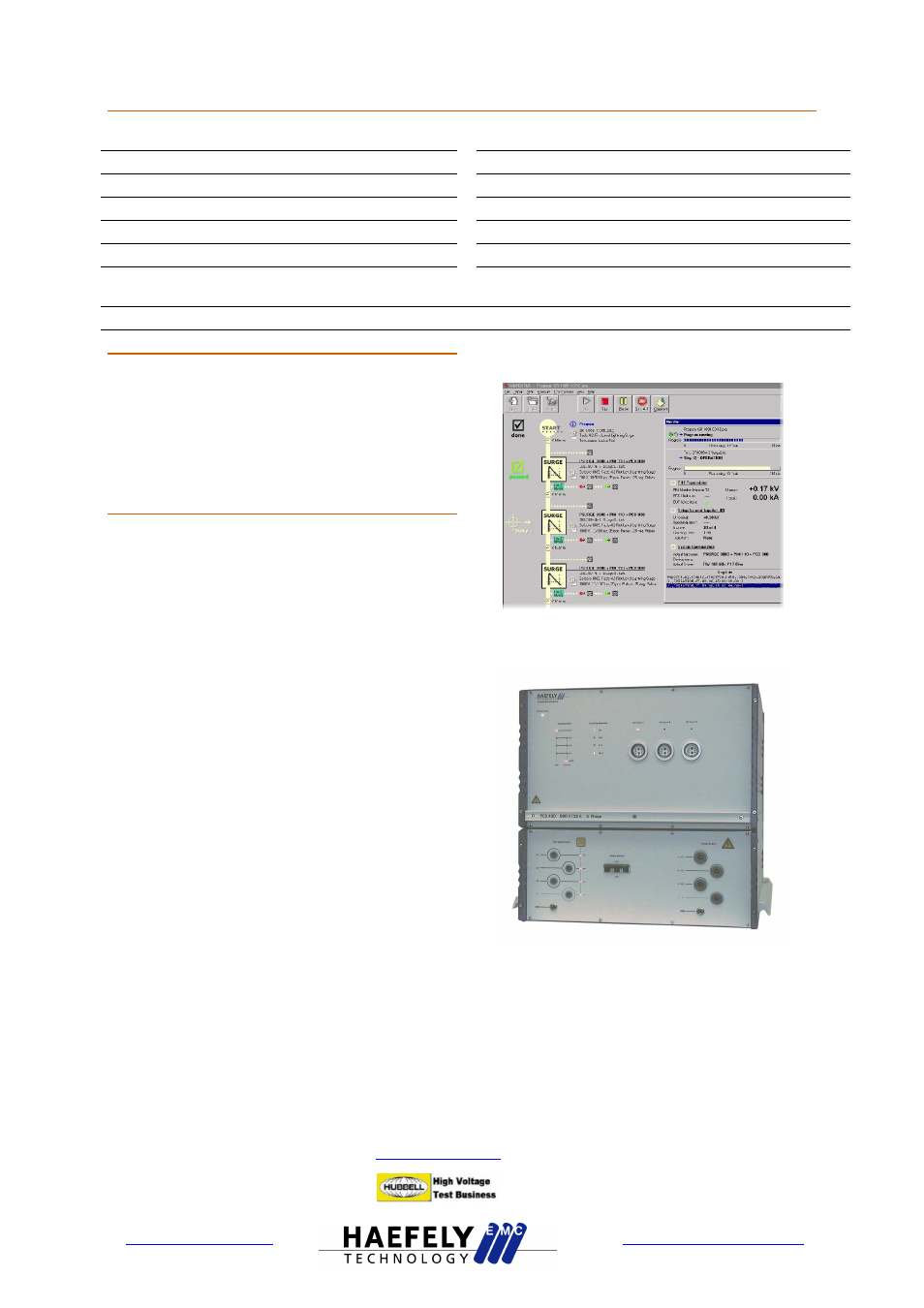

Technical Specifications
Impulse Voltage
0.20 – 7.4kV
±
10%
Impulse front time
V= 1.2us
±
30% & I= 8us
±
20%
Impulse Current
0.10 – 3.7kA
±
10%
Impulse duration
V= 50us
±
20% & I= 20us
±
20%
Source Impedance
2 Ohms
Monitor Outputs
BNC, volts(750/1) current(400A/V)
Repetition @ Umax
10 seconds / 6 per minute
Impulse Polarity
Positive and Negative
Line Synchronisation
1° steps
±
1° @50Hz
Impulse Output
HV connector with safety circuit
Weights and Dimensions (W x H x D, net weight)
PIM 100
45 x 20 x 57 cm
44 lbs (29 kg)
PIM 100 Art. No. 249902 Scope of Supply
Qty. 1
PIM 100 Impulse Module
Qty. 1
HV DC Bus cable 1m
Qty. 1
Haefely Bus cable 0.5m
Qty. 1
Earth bonding cable 1m
Qty. 1
Earth bonding cable 0.25m
Qty. 1
Users Manual
Options and Accessories
PCD 100
Single phase CDN 16Aac & dc.
Automatic coupling path switching.
Two multiplexed high voltage
inputs.
PCD 130
Three phase CDN 32Aac & dc
Automatic coupling path switching.
Three multiplexed high voltage
inputs.
PCD 121
Manual coupling network for
symmetrical data lines according to
IEC 61000-4-5
PCD 126
Manual coupling network for
asymmetrical networks according
to IEC 61000-4-5
PIM 110
100kHz Ring wave tester according
to ANSI C62.41 & IEC 61000-4-12
ADAPTERS
Single phase input & output
adapters enable PCD 130 to be
used for single phase applications
WinFEAT&R
Control and reporting software.
Runs under windows 98, NT, ME,
2000, XP
Rack Mounting
Modules can be rack mounted for
greater mechanical stability and
mobility.
WinFEAT&R Control Window
PCD 130 Three phase power line CDN
