Atec Haefely-PIM150 User Manual
Page 2
Headquarters
Haefely Test AG
Lehenmattstrasse 353
CH-4052, Basel
Switzerland
+ 41 61 373 41 11
+ 41 61 373 45 99
Locate your local
sales representative at
www.haefelyEMC.com
North American Office
Hipotronics Inc.
Haefely EMC Division
1650 Route 22
Brewster, NY 10509
++1 845 279 3644 x264
++1 845 279 2467
Haefely has a policy of continuous product improvement. Therefore we reserve the right to change design and specification without notice.
PIM150_2006-08-02.doc
Technical Specifications
Impulse Voltage
0.25 – 3.3kV
EUT Voltage
480Vac (phase - phase) /
110Vdc
Burst Frequency
100kHz & 1MHz
EUT Current
16A ac/dc per path
Impulse Repetition
40 Hz & 400Hz
Impulse Coupling
Single & Multiple Path
Source Impedance
200 ohms
Impulse Polarity
Positive, Negative &
Alternating
Burst Duration
2 seconds to continuous
Impulse Output
HV connector & CDN
Rise time
75ns
EUT Safety switch
16A Thermo magnetic
Damping Rate
50% Vpk between 5th and
10th peak
Monitor Output
BNC, volts (500 / 1)
Weights and Dimensions (W x H x D, net weight)
PIM 150
45 x 20 x 57 cm
44 lbs (29 kg)
PIM 150 Art. No. 249939 Scope of supply
Qty. 1
PIM 150 Impulse Module
Qty. 1
HV DC Bus cable 1m
Qty. 1
Haefely Bus cable 0.5m
Qty. 1
Earth bonding cable 1m
Qty. 1
Earth bonding cable 0.25m
Qty. 1
EUT Input cables (5) 2m
Qty. 1
High Voltage EUT Output cables (5) 1m
Qty. 1
Users Manual
Options and Accessories
ADAPTERS
Single phase input & output
adapters enable PIM 150 to be
used for single phase applications
WinFEAT&R
Control and reporting software.
Runs under windows 98, NT, ME,
2000, XP
Rack Mounting
Modules can be rack mounted for
greater mechanical stability and
mobility.
PCD 150
Coupling decoupling network for
data and control lines according to
IEC 610000-4-12.
IP4A
Capacitive coupling clamp as
described in ANSI C37.90.
PIM 110
100kHz Ring Wave module
according to IEC 61000-4-12.
PEFT 4010
EFT generator according to
IEC 61000-4-4 and
ANSI C37.90.

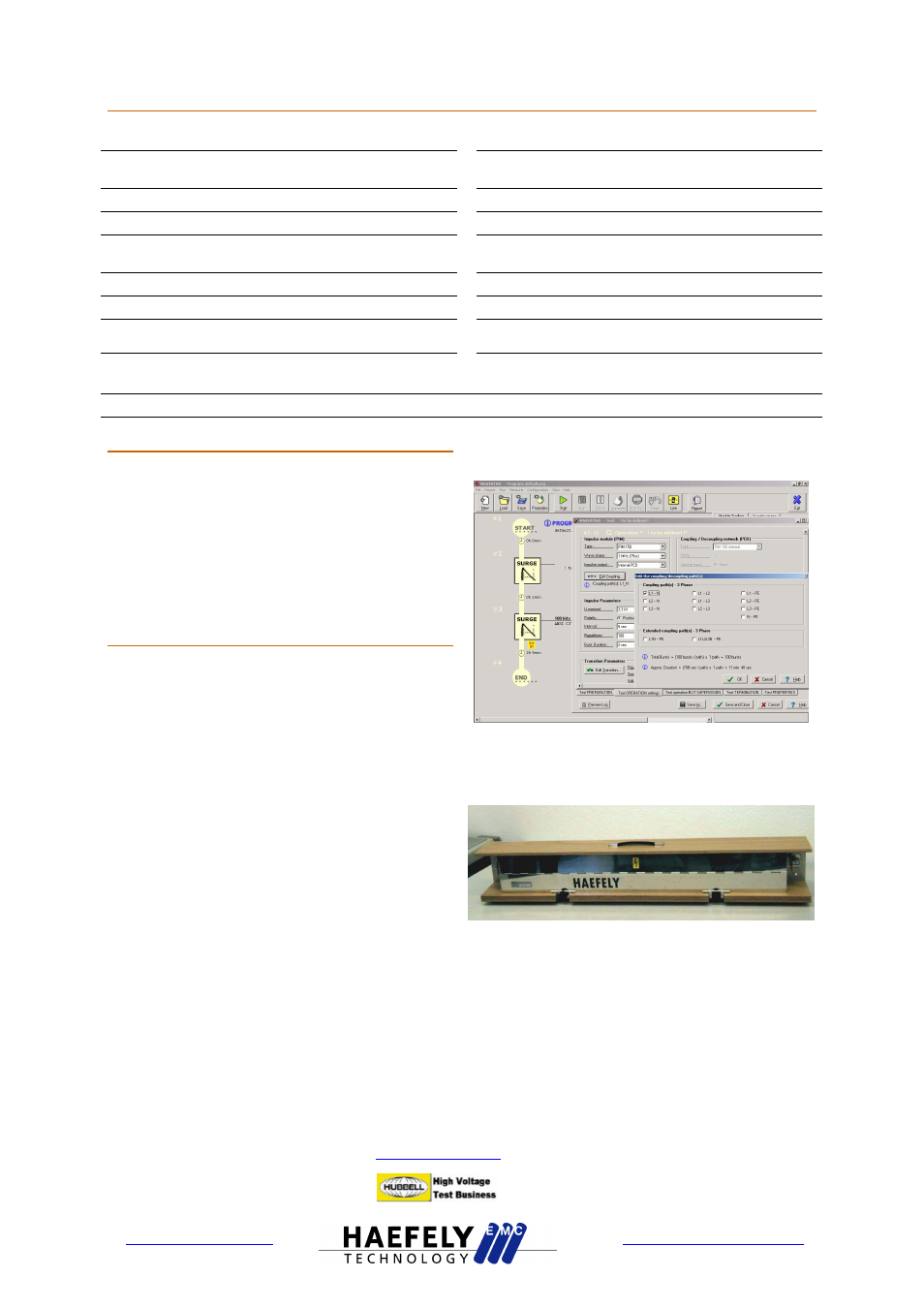

WinFEAT&R Control Window
IP4A Capacitive Coupling Clamp
