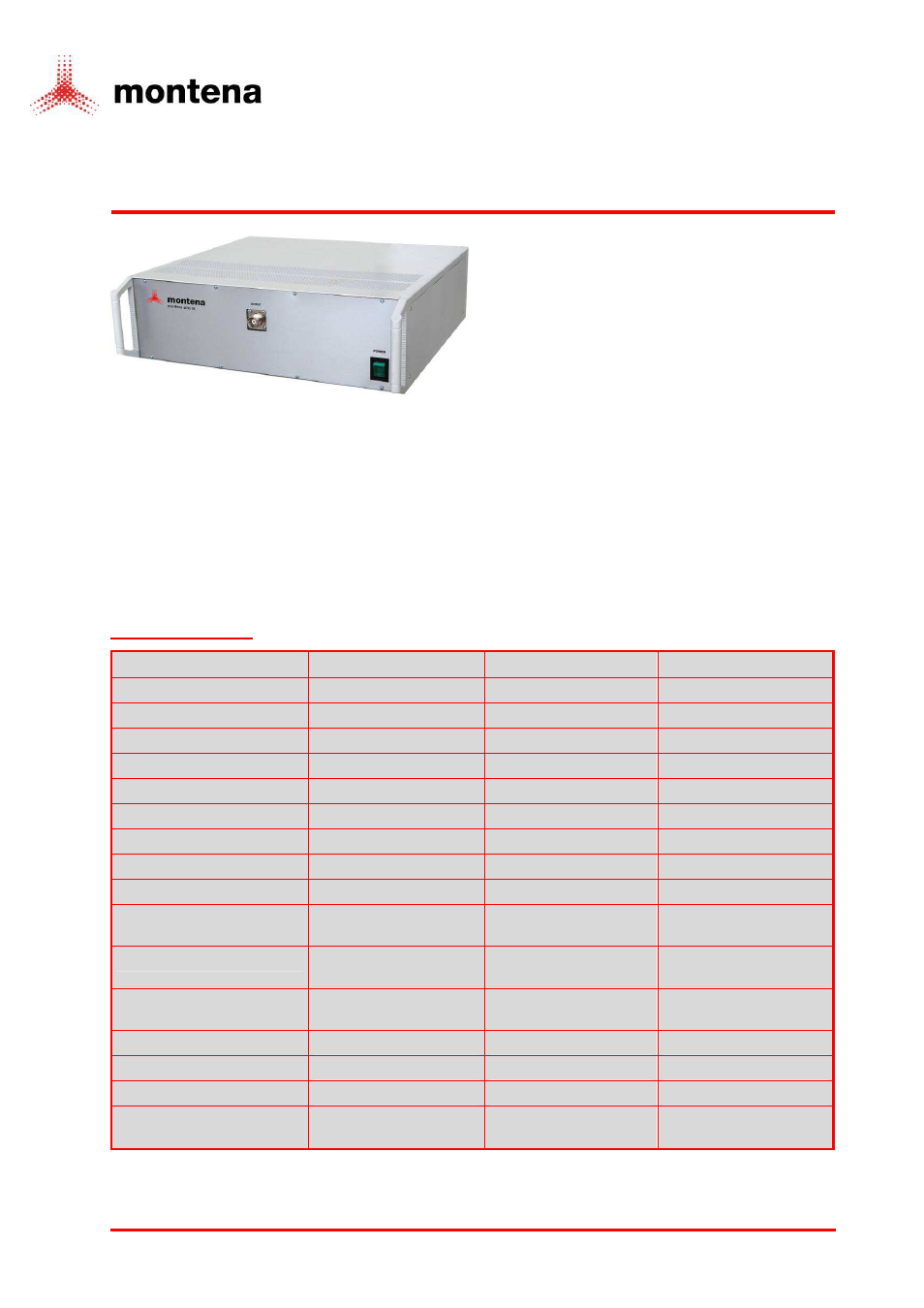

High Voltage Pulse Generator
These very short rise time pulse generator use only solid state switches. The peak output
voltage can reach 5, 20 or 30 kV on 50 ohm. A BNC 50 ohm connector produces triggering
signals when the generator is internally triggered (internal mode). When the generator is in
external mode, the HV pulse is only delivered when a synchronisation signal is present at this
connector. In internal trigger mode, the repetition frequency is adjustable by a rotary knob up to
10 kHz, respectively 1 kHz. The output voltage is also adjustable by a rotary knob.
SPECIFICATIONS
Type GP5-01-05 GP20-01-2 GP30-01-2
Maximum output voltage 5 kV (on 50 ohm) 20 kV (on 50 ohm) 30 kV (on 50 ohm)
Peak current 100 A (on 50 ohm) 400 A (on 50 ohm) 600 A (on 50 ohm)
Impedance 50 ohm 50 ohm 50 ohm
Rise time 15 - 95 % 105 ps +/- 5 ps 130 ps +/- 10 ps 130 ps +/- 10 ps
Pulse width at 50 % 500 ps +/- 100 ps 600 ps +/- 100 ps 600 ps +/- 100 ps
Jitter 30 - 40 ps 30 - 40 ps 30 - 40 ps
Pulse repetition freq. ≤ 10 kHz ≤ 10 kHz ≤ 1 kHz
Lifetime of the generator > 10
11
pulses > 10
11
pulses > 10
11
pulses
Max. power into the load 2.5 W (at 10 kHz) 50 - 70 W (at 10 kHz) 10 W (at 1 kHz)
Connector type HVM50K (other on
request) HN (other on request) HVM50K
Triggering internal or external
BNC connector 50 ohm internal or external
BNC connector 50 ohm internal or external
BNC connector 50 ohm
Trigger signal TTL, rise time 5-10 ns,
pulse width 0.1-1 us TTL, rise time 5-10 ns,
pulse width 0.1-1 us TTL, rise time 5-10 ns,
pulse width 0.1-1 us
Cooling air air air
Power supply 100 - 240 V
ac
/ 200 W 100 - 240 V
ac
/ 200 W 100 - 240 Vac / 300 W
Weight 10 kg 10 kg 14 kg
Size (L x W x H) 48 x 45 x 12 cm
(19" housing) 48 x 45 x 12 cm
(19" housing) 48 x 45 x 12 cm
(19" housing)
Other models are available on request.
