Atec Fischer Custom Comm_LISN-50-100 - Manual (Page 2)

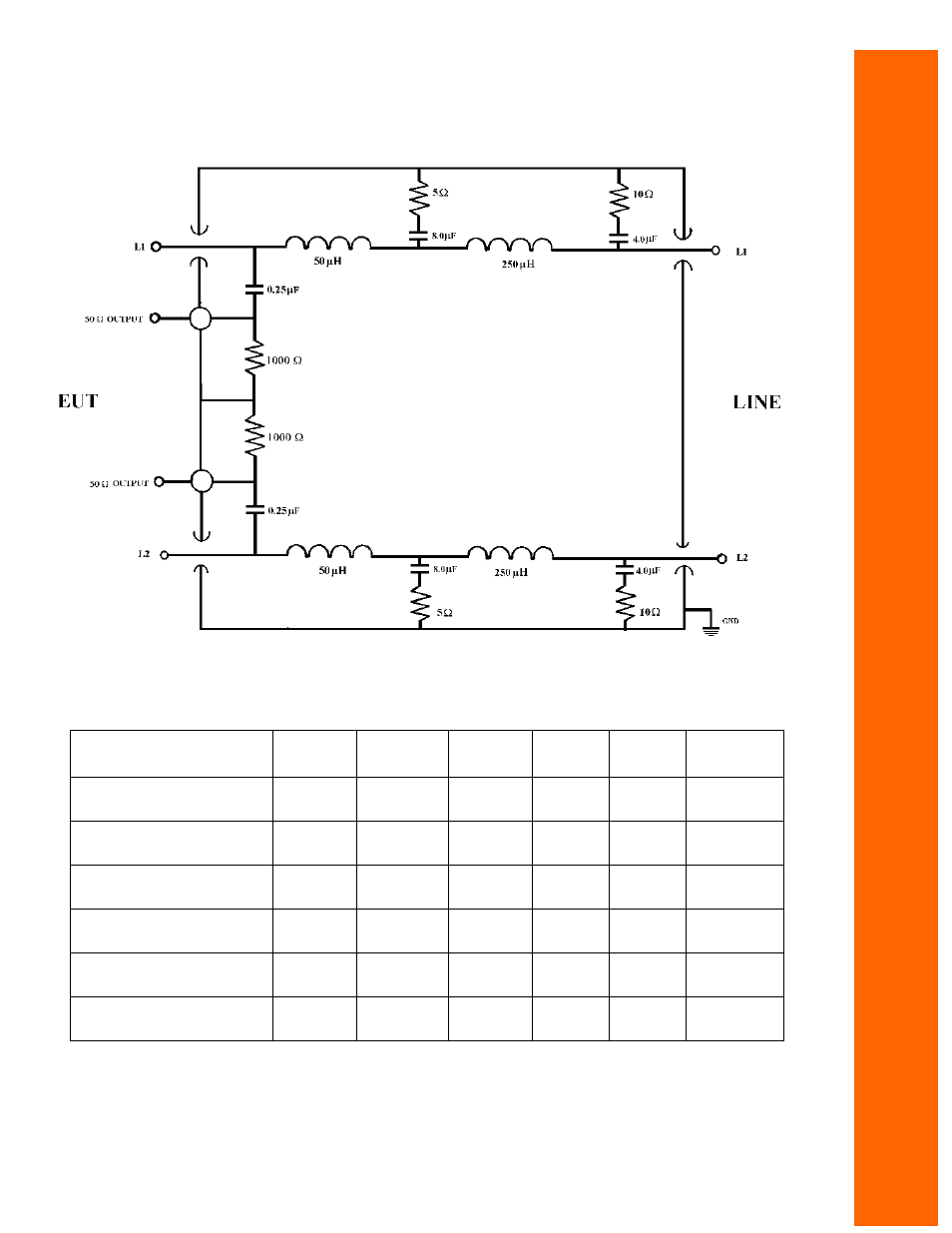

Informative schematic
Model Number
Frequency
(MHz)
Network
Inductance
Maximum
Current
Voltage
Options Power
Freq.
Number of
Lines
FCC-LISN-50/250-16-(X)-(XX) .009 - 30 50/250 uH 16A
240V
480V
DC-60Hz 1, 2, 4
FCC-LISN-50/250-25-(X)-(XX) .009 - 30 50/250 uH 25A
240V
480V
DC-60Hz 1, 2, 4
FCC-LISN-50/250-50-(X)-(XX) .009 - 30 50/250 uH 50A
240V/
480V
DC-60Hz 1, 2, 4
FCC-LISN-50/250-100-(X)-(XX) .009 - 30 50/250 uH 100A
240V
480V
DC-60Hz 1, 2, 4
FCC-LISN-50/250-25-(X)-(XX) .009 - 30 50/250 uH 25A
240V
480V
DC-60Hz 1, 2, 4
FCC-LISN-50/250-50-(X)-(XX) .009 - 30 50/250 uH 50A
240V
480V
DC-60Hz 1, 2, 4
For connector options, please see table 3, (xx) defines EUT power connections, (x) defines the
number of lines. All the models listed above meet the performance requirements defined
in CISPR 16-1-2, 2006 for the 50
, 50uH +5 LISN circuit, including common mode impedance,
phase, and decoupling isolation
An alternative LISN circuit, 50
, 50uH +5, is often used by test engineers to perform conducted
emission testing defined in CISPR test specifications. This LISN originated with VDE conducted
emissions testing. It is also the LISN required for CISPR 15 testing of luminaries. It includes additional
inductors and capacitors for filtering and has an operating frequency of 9kHz – 30MHz.
Standard 50

LISN for CISPR-16
