BVM
Battery Voltage Monitor
SWEDEN
Megger Sweden AB
Eldarvägen 4, Box 2970
SE-187 29 TÄBY
T +46 8 510 195 00
F +46 8 510 195 95
E [email protected]
Other Technical Sales Offices
Dallas USA, Norristown USA,
Toronto CANADA, Trappes FRANCE,
Oberursel GERMANY, Johannesburg
SOUTH AFRICA, Kingdom of BAHRAIN
Mumbai INDIA, Chonburi THAILAND
Sydney AUSTRALIA
UK
Archcliffe Road Dover
CT17 9EN England
T +44 (0) 1304 502101
F +44 (0) 1304 207342
Ordering information
Item Art. No.
BVM
Including:
Dolphin clips, Power & signal connector,
Power supply, Connection cables and Carrying case
BVM300
With TORKEL Win software
System of 31 BVM units
CJ-59093
BVM600
With TORKEL Win software
System of 61 BVM units
CJ-59096
BVM300
With PowerDB software
System of 31 BVM units
CJ-59193
BVM600
With PowerDB software
System of 61 BVM units
CJ-59196
BVM
Single unit
CJ-59090
Registered to ISO 9001 and 14001
Subject to change without notice.
Art.No. ZI-CJ01E • Doc. CJ0062BE • 2011
BVM_DS_en_V02
www.megger.com
Megger is a registered trademark
Specifications
Specifications are valid at an ambient temperature of +25°C,
(77°F). Specifications are subject to change without notice.
Environment
Application field The instrument is intended for use
in medium-voltage substations and
industrial environments.
Altitude <2000 m (6500 ft) above sea
level.
Temperature
Operating 5°C to +50°C (41°F to +122°F)
Storage & transport 0°C to +60°C (32°F to +140°F)
Humidity 5% – 95% RH, non-condensing
CE-marking
LVD 2006/95/EC
EMC 2004/108/EC
General
Mains voltage 100 / 240 V AC, 50 / 60 Hz
Power consumption (max) 50 VA
Protection Over voltage, reverse voltage, voltage
transients, ESD
Dimensions
BVM unit 75 x 64 x 25 mm
(3” x 2.5” x 1”)
Carrying case 575 x 470 x 205 mm
(22.6” x 18.5” x 8.1”)
Weight
BVM unit 0.07 kg (0.15 lbs)
With accessories and
carrying case BVM system of 31 units 8.8 kg (19 lbs)
BVM system of 61 units 12.5 kg (27 lbs)
Measurement section
Maximum number of
channels 120
Voltage ranges 0-5 V DC and 0-20 V DC
Resolution 1.00 mV both ranges
Inaccuracy < 0.1% of full scale ±0.002 V DC
Battery string voltage 300 V DC (max)
Measurement input
impedance 1 MΩ
Additional equipment
For complete information on additional products see appropriate
data sheets.

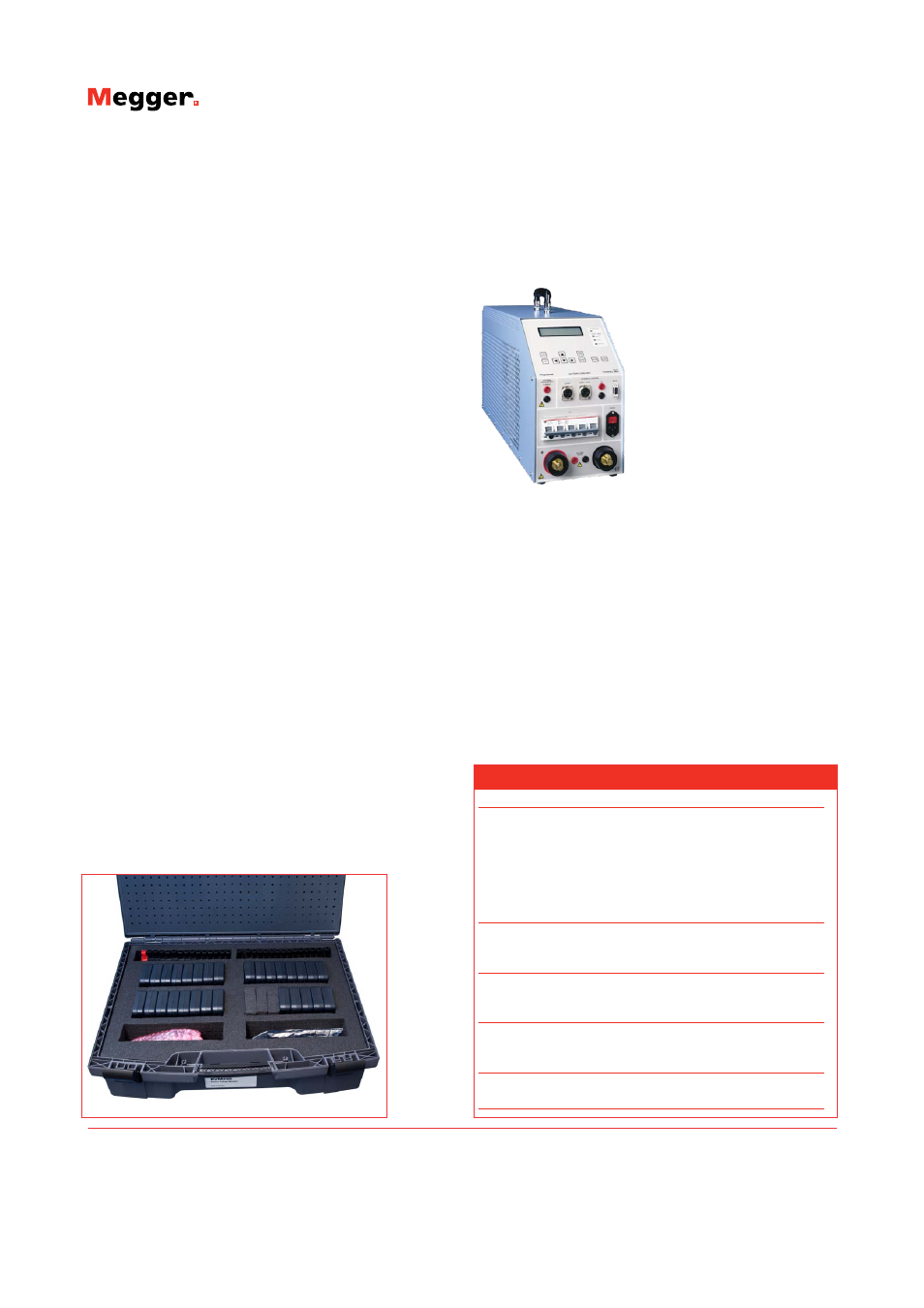

TORKEL 820/840/860
Testing can be carried out without disconnecting the battery from
the equipment it serves.
TORKEL Win
TORKEL Win PC software
Shows the complete voltage curve
Last recorded time, voltage, current and discharged capacity
Remote control of TORKEL
PowerDB
Windows-based PC software available in four versions
Interfaces to instruments via either Serial RS232, Ethernet, or USB
flash drive (depending on instrument)
Allows user to set up test routines in advance of testing
Allows analysis, comparison and trending of data
Merge test results between field and office databases
BVM600
