DELTA2000
10 kV Automated Insulation Power Factor Test Set
n
Open-ground detector ensures proper grounding before
test.
n
Interlock switches provide operator safety.
n
High accuracy SF6 gas-filled capacitor as internal refer-
ence.
n Built-in interface to the optional Resonating Inductor
(Cat. No. 670600) to extend the capacitance measuring
range to 1.1µF at 10 kV.
n
Data key stores 127 sets of test results for retrieval and
analysis. Stored results can be easily transferred to a PC
using the provided interface box.
n
Optional printer mounting inside unit’s lid instead of
standard thermal printer.
n
Optional HV TTR capacitor (10 nF) in addition to two HV
reference capacitors (100 pF and 1000 pF) with a
2% dissipation factor.
n Optional module to perform LV three-phase transformer
turns ratio testing and excitation current up to 500 mA in
accordance with Megger TTR300 product specifications
(via PowerDB software).
n
RS-232 serial interface for downloading the test results to a PC.
n
Includes a battery/line operated printer for a hard copy
of the test results which are date and time stamped.
n
Optional bar code wand and PC software for recording
an alphanumeric test identification in the field.
n Optional Priority Access package with exclusive services
(US market only).
n
Optional Oil Test Cell for testing insulating fluids up
to 10 kV.
n
Optional Calibration Standard verifies proper operation
and accuracy of the test results.
n
Interfaces with a PowerDB software package that per-
forms extensive information processing, data trending
and report generation.

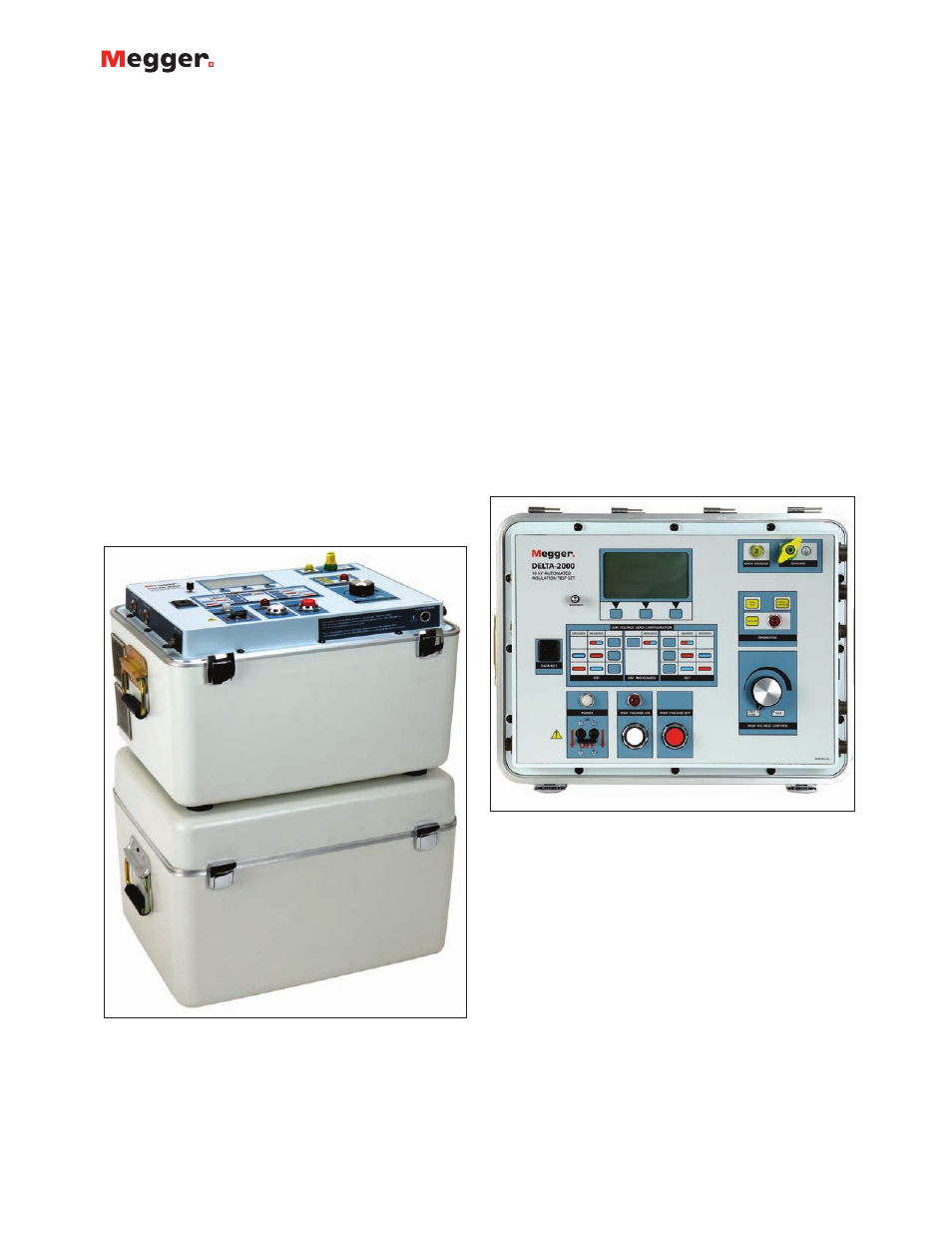

The DELTA2000, available in either 120 or 240 V ac/50 or 60 Hz,
includes the Control Unit (top) and High Voltage Unit (bottom)
Close-up of DELTA2000 panel
