SAFeTY and DeSIGn FeATUReS
TECHNOLOGIES
PHENIX
R
www.phenixtech.com
opTIonS
• Model GS100-2 (100 kV) or GS160-2 (160 kV) Ground Stick, 2-piece
design, with a 25’ (8 m) ground lead
• Model DS100-2 Discharge Stick (100 kV, 100 kΩ, 50 kJ), 2-piece
design with a 25’ (8m) ground lead
• Safety Foot Switch with 20’ (6 m) lead
• Positive polarity output
• Custom cable lengths
• Hand cart (option for models 4120-10 and 4160-5)
• Calibration Certificate with data

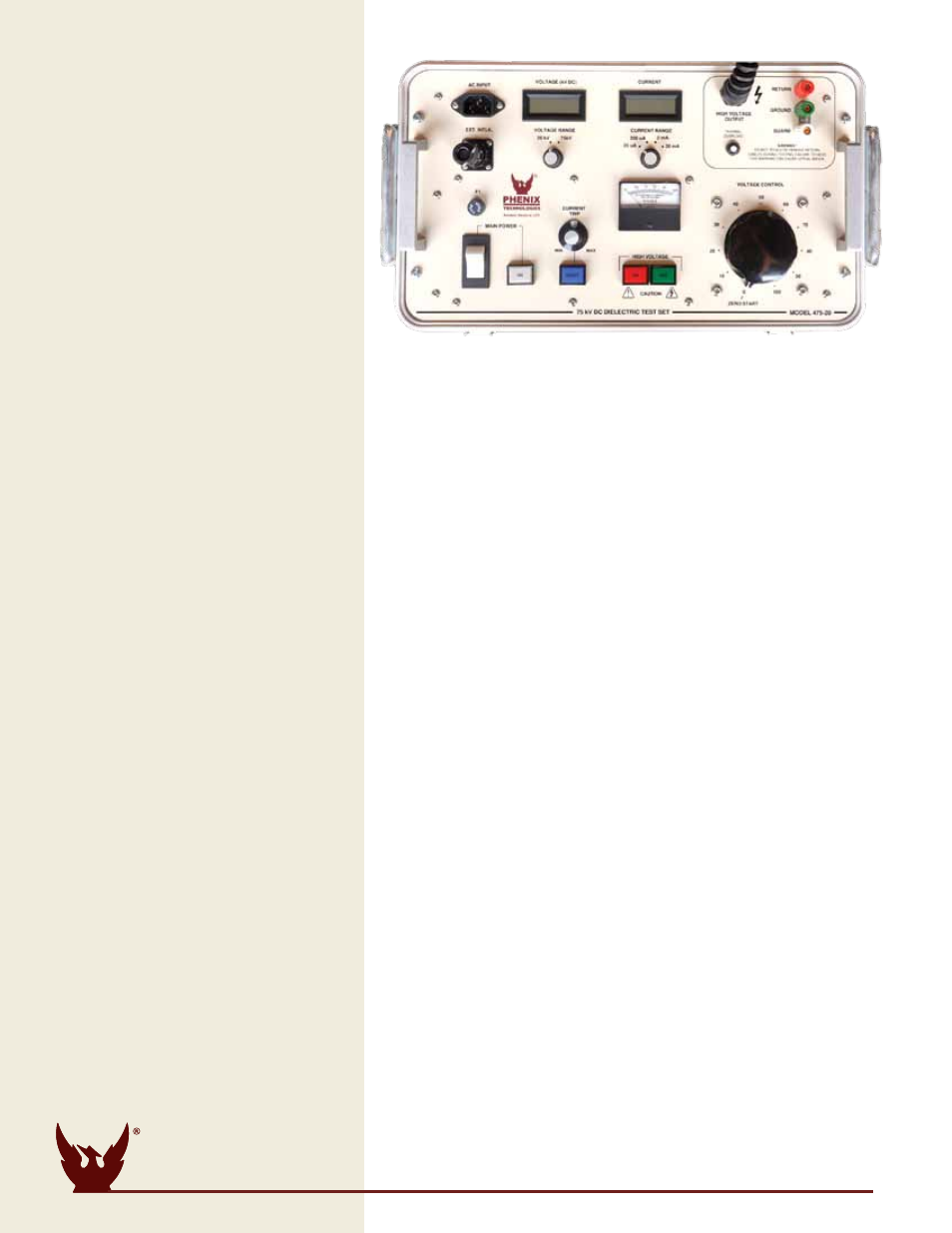

portable Dc Hipots 40-160 kV
Phenix Technologies offers a line of portable
40-160 kV DC Hipots with many advanced
features including high accuracy, digital
meters, analog charging currentmeter,
adjustable overcurrent, and high output
current ratings.
The high voltage is generated by a filtered
high voltage doubler circuit, that is built
by Phenix for this application.
A solenoid operated discharge switch
quickly discharges the load after testing.
All high voltage components are housed
in an oil filled aluminum sealed grounded
dead tank. A shielded high voltage lead
allows the operator to safely connect the
high voltage output to the test object. The
high mA charging current, which is standard
with all Phenix DC Hipots allows the operator
to quickly and efficiently charge large
capacitive loads.
The precision metering measured off the
high voltage output indicates the output
voltage and leakage current on large easy
to read digital meters. An analog meter is
provided for reading leakage current.
Additional safety features include an
instantaneous and thermal overload pro-
tection for the operator and the test object.
The proven and rugged design coupled
with precision metering and ease of use
have made DC hipots the optimal choice
for high voltage DC testing.
• Circuit breaker protection
• External interlock provision
• High voltage On/Off pushbuttons with indicators
• Zero Start interlock
• Manual control of output voltage
• Adjustable overload circuit with indicator and reset switch
• Slow and fast-acting transient protection on all meters and relays
• Built-in discharge circuit
• Digital multi-range metering
• Meters calibrated with standards certified by NIST. A traceable
sticker is affixed to the faceplate.
• Thermal resettable overload protecting high voltage transformer
primary circuits.
• Guard mode for accurate current measurements
• Very low ripple, <2% RMS at full output
• Filtered voltage doubler circuit, equivalent to full wave rectification
• All control and power cables are included
• Cable storage provision
• Calibration certificate
• Two copies of operation/maintenance manual
enVIRonMenTAL conDITIonS
• 10-40°C, indoor/outdoor in fair weather
• Humidity <95% non-condensing
• Altitude <3000 ft (1000 meters)
