FLIR b50 Specifications
Imaging and optical data
Field of view (FOV) /
Minimum focus distance 25° × 25° / 0.10 m (0.33 ft.)
Spatial resolution (IFOV) 3.12 mrad
Thermal sensitivity/NETD <0.09 ºC (<0.16 ºF) @ +25 ºC (+77 ºF) / 90 mK
Image frequency 9 Hz
Focus Manual
Focal Plane Array (FPA) /
Spectral range Uncooled microbolometer / 7.5–13 µm
IR resolution 140 × 140 pixels
Image presentation
Display Built-in 3.5 in. LCD, 256k colors,
240 × 320 pixels
Image modes IR image, visual image, Picture in Picture,
thumbnail gallery
Picture in Picture IR area (in three steps) on visual image
Measurement
Object temperature range –20 to +120ºC (–4 to +248°F)
Accuracy ±2°C (±3.6°F) or ±2% of reading
Measurement analysis
Spotmeter Center spot
Area 1 box with min./max.
Emissivity correction Variable from 0.1 to 1.0 or selected from
list of materials
Reflected apparent temperature
correction Automatic, based on input of reflected
temperature
Isotherm 1 with above/below
Dew point alarm Yes
Insulation alarm Yes
Set-up
Menu commands Palettes (Black and White, Iron and
Rainbow), image adjustment (auto/
manual)
Set-up commands Local adaptation of units, language, date
and time formats; automatic shutdown,
display intensity
Storage of images
Image storage Standard JPEG, including measurement
data, on memory card
Digital camera
Built-in digital camera 2.3 Mpixels (1536 × 1536 pixels), and two
LED lights
Digital camera, focus Minimum focus distance 0.4 m (1.3 ft.)
Laser pointer
Laser Semiconductor AlGaInP diode laser,
Class 2
Data communication interfaces
Interfaces USB-mini, USB-A
Power system
Battery Li Ion (field replaceable),
5 hours operating time
Charging system In camera, AC adapter, 2-bay charger or
12 V from a vehicle
Power management Automatic shutdown
(user selectable)
AC operation AC adapter, 90–260 VAC, 50/60 Hz,
12 V output to camera
Environmental data
Operating temperature range –15 to +50 °C (+5 to +122°F)
Storage temperature range –40 to +70 °C (–40 to +158°F)
Humidity (operating and storage) IEC 68-2-30/24 h 95% relative humidity
+25 °C to +40 °C (+77°F to +104°F)
Encapsulation IP 54 (IEC 60529)
Bump 25 g (IEC 60068-2-29)
Vibration 2 g (IEC 60068-2-6)
Physical data
Camera weight, incl. battery 0.60 kg (1.32 lb)
Camera size (L × W × H) 235 Ч 81 Ч 175 mm (9.3 Ч 3.2 Ч 6.9 in.)
Scope of delivery
Packaging, contents: Hard transport case, Infrared camera with lens, Battery,
Calibration certificate, FLIR QuickReport™ PC software CD-ROM, Memory card
with adapter, Power supply, Printed Getting Started Guide, USB cable, User
documentation CD-ROM, Warranty extension card or Registration card
Optional software
FLIR Reporter
Standard/ Professional A powerful yet easy-to-use tool
to generate comprehensive and
professional infrared inspection reports.
FLIR BuildIR™ A powerful yet easy-to-use software
designed to visualise and quantify
building related issues
www.flir.com/thg
Specifications and prices subject to change without notice.
Copyright © 2010 FLIR Systems. All right reserved including the right of reproduction in whole or in part in any form.

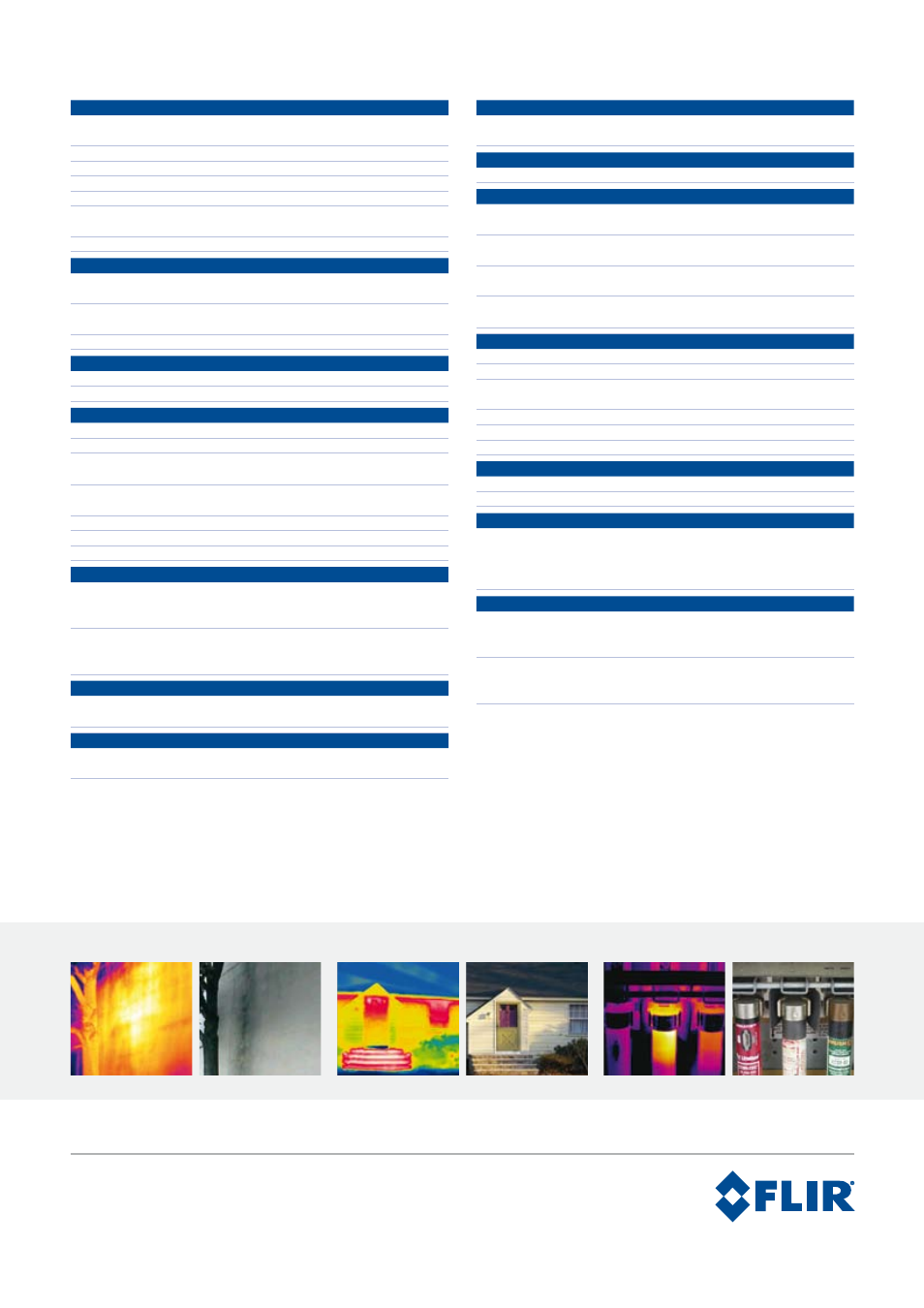

Applications
Building: Water and mildew in wall Electrical: Hot Fuses Building: Heat Loss
100209
b50
datasheet_en
