Atec Fluke-Tir - Manual (Page 3)

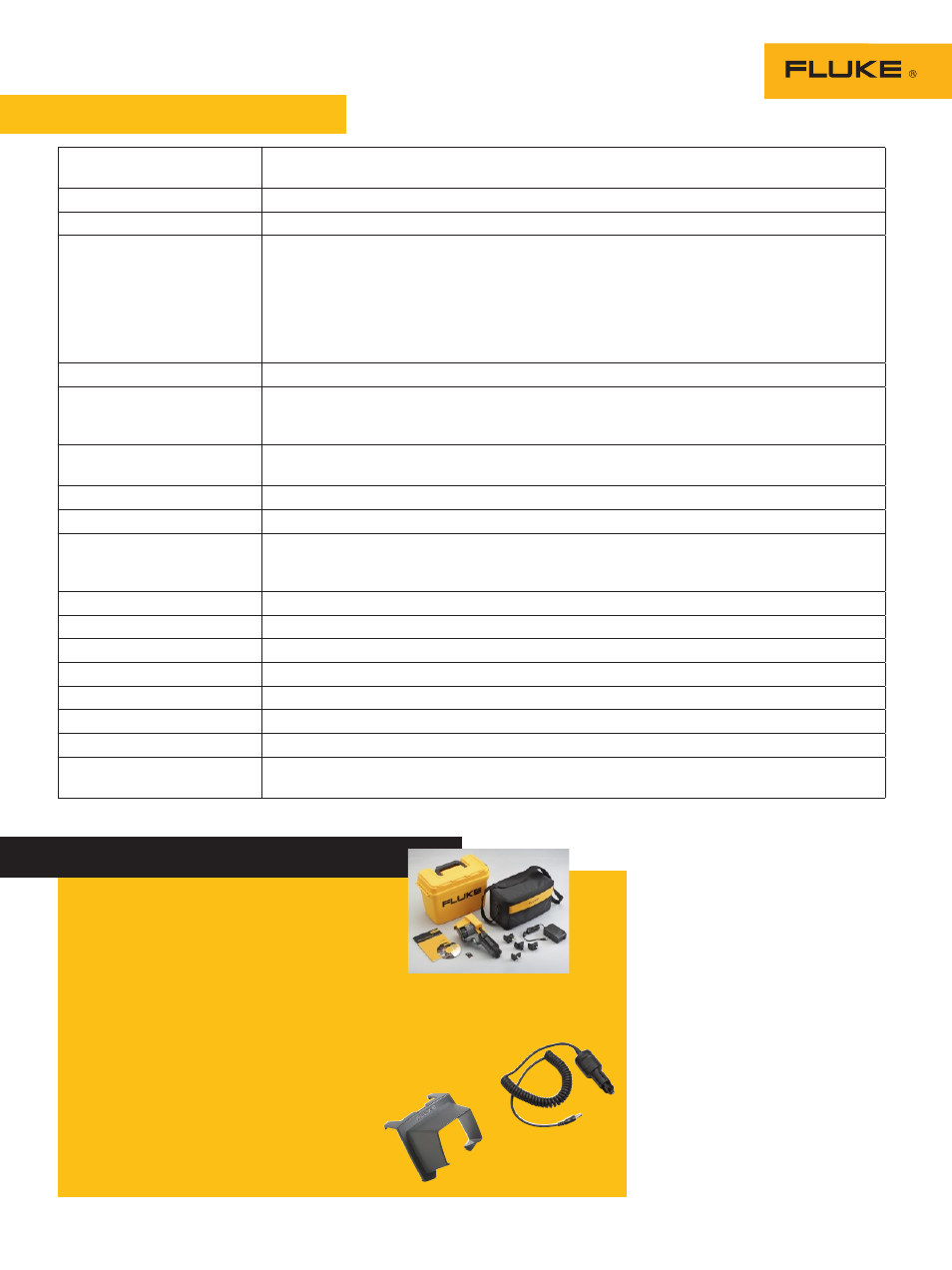

Temperature Operating: -10 °C to 50 °C (14 °F to 122 °F)
Storage: -20 °C to +50 °C (-4 °F to 122 °F) without batteries
Relative humidity 10 % to 90 % non-condensing
Display 9.1 cm (3.6 in) diagonal landscape color VGA (640 x 480) LCD with backlight (selectable bright or auto)
Controls and adjustments User selectable temperature scale (°C/°F)
Language selection
Time/date set
Emissivity selection and reflected background temperature compensation (TiR1 only)
User selectable hot spot and cold spot on the image (TiR1 only)
TiR1 allows user to adjust palette, alpha blend, level, span, PIP, and emissivity on a
captured image before it is stored.
Software SmartView
®
full analysis and reporting software included
Power Battery: Internal rechargeable battery pack (included)
Battery life: 3 to 4 hours continuous use (assumes 50 % brightness of LCD)
Battery charge time using ac adapter/charger or dc car charger: 2 hours for full charge
AC operation/charging AC adapter/charger (110 V ac to 220 V ac, 50 Hz to 60 Hz). Charges battery while
imager is operating. Universal ac mains adapters included.
Power saving Sleep mode activated after 5 minutes of inactivity, automatic power off after 30 minutes of inactivity
Safety standards CE Directive: IEC/EN 61010-1 2nd Edition Pollution Degree 2
Electromagnetic
compatibility EMC directive: EN61326-1
C-Tick: IEC/EN 61326
US FCC: CFR 47, Part 15 Class A
Vibration 2 G, IEC 68-2-29
Shock 25 G, IEC 68-2-29 (2 m or 6.5 ft drop, 8 sides)
Dimensions (HxWxL) 0.27 m x 0.13 m x 0.15 m (10.5 in x 5 in x 6 in)
Weight 1.2 kg (2.65 lb)
IP rating IP54
Warranty Two-years
Calibration cycle Two-years (assumes normal operation and normal aging)
Supported languages English, Italian, German, Spanish, French, Russian, Portuguese, Swedish, Turkish, Czech,
Polish, Finnish, Simplified Chinese, Traditional Chinese, Korean, and Japanese
3 Fluke Corporation TiR1 and TiR Thermal Imagers
General specifications
Ordering information
FLUKE-TIR1 Thermal Imager
FLUKE-TIR Thermal Imager
Included with product
Thermal imaging camera w/20 mm lens, ac power
supply/battery charger (including mains adapters), SD memory card, SD card reader
(USB) for downloading images into your computer, SmartView
®
software with free
software upgrades for life, rugged hard, carrying case, soft transport bag, hand strap,
users manual, warranty registration card, and interactive training DVD.
Optional accessories
Fluke-TI Charger Thermal Imager Car Charger
Fluke-T-Visor
Thermal Imager Visor
Fluke Corporation
PO Box 9090, Everett, WA 98206 U.S.A.
Fluke Europe B.V.
PO Box 1186, 5602 BD
Eindhoven, The Netherlands
For more information call:
In the U.S.A. (800) 443-5853 or
Fax (425) 446-5116
In Europe/M-East/Africa +31 (0) 40 2675 200 or
Fax +31 (0) 40 2675 222
In Canada (800)-36-FLUKE or
Fax (905) 890-6866
From other countries +1 (425) 446-5500 or
Fax +1 (425) 446-5116
Web access: http://www.fluke.com
©2007-2009 Fluke Corporation.
Specifications subject to change without notice.
Printed in U.S.A. 1/2009 3035363 D-EN-N Rev C
