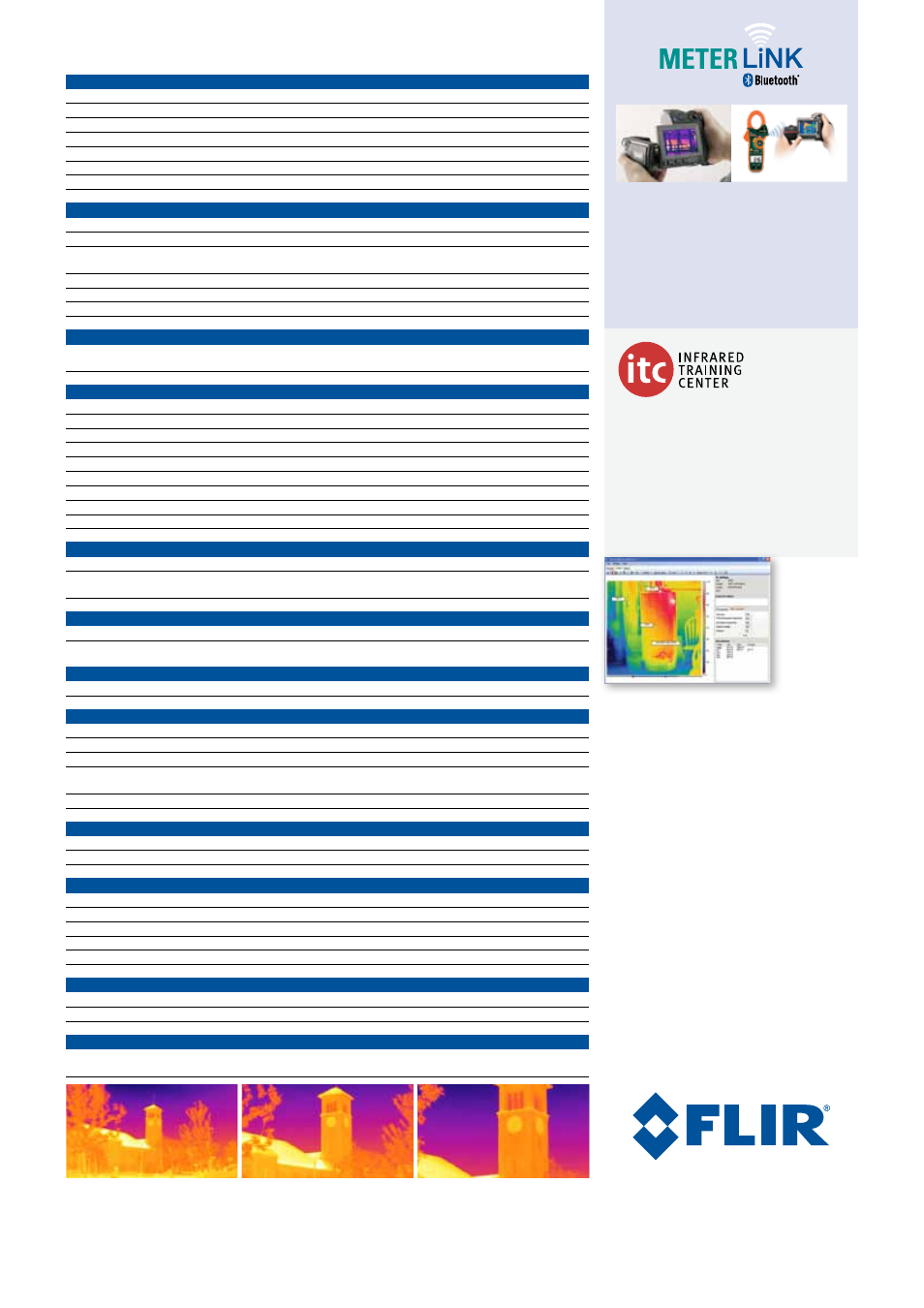

FLIR T640 Specifications
Imaging and optical data
Field of view (FOV) / Minimum focus distance 25° × 19° / 0.25 m (0.82 ft.)
Spatial resolution (IFOV) 0.68 mrad
Thermal sensitivity/NETD <40 mK @ +30°C (+86°F)
Image frequency 30 Hz
Focus Automatic (one shot) or manual
Zoom 1–8× continuous, digital zoom, including panning
Focal Plane Array (FPA) / Spectral range Uncooled microbolometer / 7.8–14 µm
IR resolution 640 × 480 pixels
Image presentation
Display Built-in Touch-screen, 4.3 in. wide screen LCD, 800 × 480 pixels
Viewfinder Built-in 800 × 480 pixels
Automatic image adjustment Continuous/manual; linear or histogram based; possible to lock max,
min or span temperature
Manual image adjustment Level/span/max/min
Image modes IR image, visual image, thermal fusion, Picture-in-Picture, thumbnail gallery
Thermal fusion IR image shown above, below or within temp interval on visual image
Picture-in-Picture Resizable and movable IR area on visual image
Measurement
Temperature range –40°C to +150°C (–40°F to +302°F), +100°C to +650°C (+212°F to +1202°F)
+300°C to +2000°C (+572°F to +3632°F)
Accuracy ±2°C (±3.6°F) or ±2% of reading
Measurement analysis
Spotmeter 10
Area
5 boxes or circles with max./min./average
Automatic hot/cold detection Max/Min temp. value and position shown within box, circle or on a line
Isotherm Above/below/interval
Profile
1 live line
Measurement presets Yes
Difference temperature Delta temperature between measurement functions or reference temperature
Reference temperature Manually set or captured from any measurement function
Emissivity correction Variable from 0.01 to 1.0 or selected from materials list
Measurement corrections Reflected temperature, optics transmission, atmospheric trans and external optics
Set-up
Color palettes Iron, Gray, Rainbow, Arctic, Lava, Rainbow HC
Set-up commands Configure information to be shown in image; programmable button; local
adaptation of units, language, date and time formats, camera software update
Camera software update Use PC software FLIR Tools
Storage of images
Image storage Standard JPEG, including measurement data, on memory card
Image storage mode IR/visual images, simultaneous storage of IR and visual images.
Visual and IR image automatically grouped together
Video recording in camera and streaming to PC
Non-radiometric IR and Digital camera video recording MPEG-4 to memory card
Non-radiometric IR and Digital streaming MPEG4 using USB
Data communication interfaces
Interfaces USB-mini, USB-A, Bluetooth, Wi-Fi, Digital Video Output
Bluetooth Communication with headset and external sensors
Wi-Fi Wireless communication between camera and external device
USB • USB-A: Connect external USB device
• USB Mini-B: Data transfer to and from PC / streaming
Video out Digital Video Output (DVI)
Video, connector type HDMI compatible
Power system
Battery Li Ion, 3 hours operating time
Charging system In camera (AC adapter or 12 V from a vehicle) or 2-bay charger
Power management Automatic shutdown and sleep mode (user selectable)
Environmental data
Operating temperature range –15°C to +50°C (+5°F to +122°F)
Storage temperature range –40°C to +70°C (–40°F to +158°F)
Humidity (operating and storage) IEC 60068-2-30/24 h 95% relative humidity +25°C to +40°C / 2 cycles
Encapsulation IP 54 (IEC 60529)
Bump 25 g (IEC 60068-2-29)
Vibration 2 g (IEC 60068-2-6)
Physical data
Weight 1.3 kg (2.87 lb.)
Size (L × W × H) 143 Ч 195 Ч 95 mm (5.6 Ч 7.7 Ч 3.7 in.)
Tripod mounting UNC ¼”-20
Optional lens
Lens IR f=41.3 mm with case (15°), Lens IR f=24.6 mm with case (25°)
Lens IR f=13.1 mm with case (45°)
45˚ Lens 25˚ Lens 15˚ Lens
What is MeterLink™?
MeterLink displays and documents readings
from your Extech moisture or clamp meter
directly on your infrared image using Bluetooth
wireless connection. MeterLink, a FLIR industry-
first technology, will greatly improve your
diagnostics, save time annotating readings,
eliminate data errors, and add more customer
value to your reports.
Training
The center offers a wide variety of infrared
courses from entry-level thermography
to advanced IR training. ITC infrared
thermography certifications are globally
recognized and are designed to exceed the
requirements of international certification
standards.
Check the ITC course schedule in the Asia
Pacific region: www.flir.com/thg/itc
Optional
Software
FREE FLIR
QuickReport™
Allows the user to
organize, analyze
and present infrared
image data in a report.
Delivered with your FLIR
camera.
FLIR Reporter™
A powerful yet easy-
to-use tool to generate
comprehensive and
professional infrared
inspection reports.
FLIR BuildIR™
Software designed to
carry out advanced
analysis of building
structures. It is used to
analyze images taken
with an infrared camera
and create inspection
reports based on these
images.
Accessories
Pouch
Extra battery
Battery charger
Car charger
Selection of lenses
