ARC Fusion Splicer
Description
INNO Fiber Master IFS-10 Core-Alignment Fusion Splicer with the New DACAS (Digital Analysis Core Alignment System) is one of
the most dependable splicers on the market. The Fiber Master splicer features a rubberized design for field use in harsh weather
conditions. The IFS-10 has a friendly, intuitive GUI (Graphical user Interface) with a 5 inch color LCD screen that is easy to see and
is adjustable for front and rear splicer orientation. The sizeable, large battery capacity at full charge allows for up to 350 splices.
Amazingly, the IFS-10 splicer is the most reliable and user friendly Core Alignment splicer in the world.
Specifications
Splicing Method Core Alignment DACAS (Digital Analysis Core Alignment System)
Average Loss SM(0.02dB) | MM(0.01dB) | DS(0.04dB) | NZDS(0.04dB)
Return loss >> 60 dB
Splice Time 9s average SM | 7s SM Quick Mode
Pull Test 1.96~2.25N (standard)
Electrode Lifespan > 2,500 arcs
Applicable Fiber SM(ITU-TU.652), MM(ITU-TU.651), DS(ITU-T G.653),NZDS(ITU-T G.655), G657A, G657B
Cleaved Length Coating diameter < 0.25mm = 8-16mm, Coating diameter > 0.25mm = 16mm minimum
Coating Diameter 100-1000um
Cladding Diameter 80-150um
Heating Programs Preset 10 heating modes
Heating Time FP-03 typical heating time 35s
Protection Sleeve 10mm, 20mm, 30mm, 40mm, 50mm, 60mm
Data Output USB master device and COM
Splice Programs 100 user mode
Splice Memory Up to 2000 records
Battery Typical full cycle 350 Splice and Heat
Power Supply AC 100-240V input or DC 18V
Monitor Color 5” LCD monitor, with tempered glass
Cameras 2 CCD camera system
Magnification XY style: 150 power, X/Y: 300 power
Fiber Display X/Y or XY, single X.Y
Weight 2.2KG (without battery)
Size 155 x 130 x 143mm (excluding rubber bumper)
Wind Protection The max wind speed 15m/s
Operating Environment Elevation 0-5000 meters, -10~50°c, ~95% relative humidity
Storage Condition Temperature -40 to 80°c, ~95% relative humidity

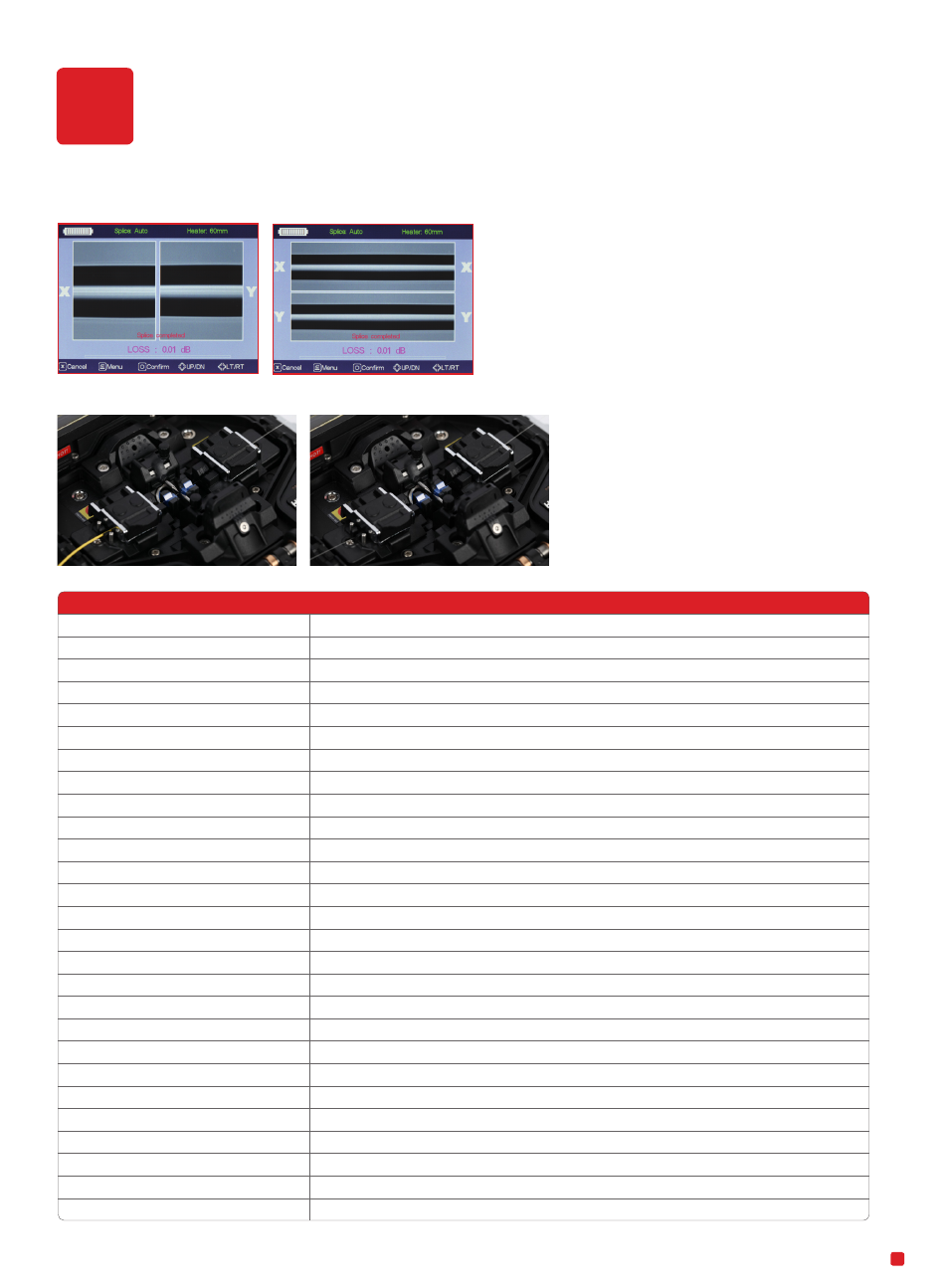

IFS-10
Application of fiber Cables
Splice Loss
Splicing between 900μm and 250μm Splicing between 250μm and 250μm
