DESCRIPTION:

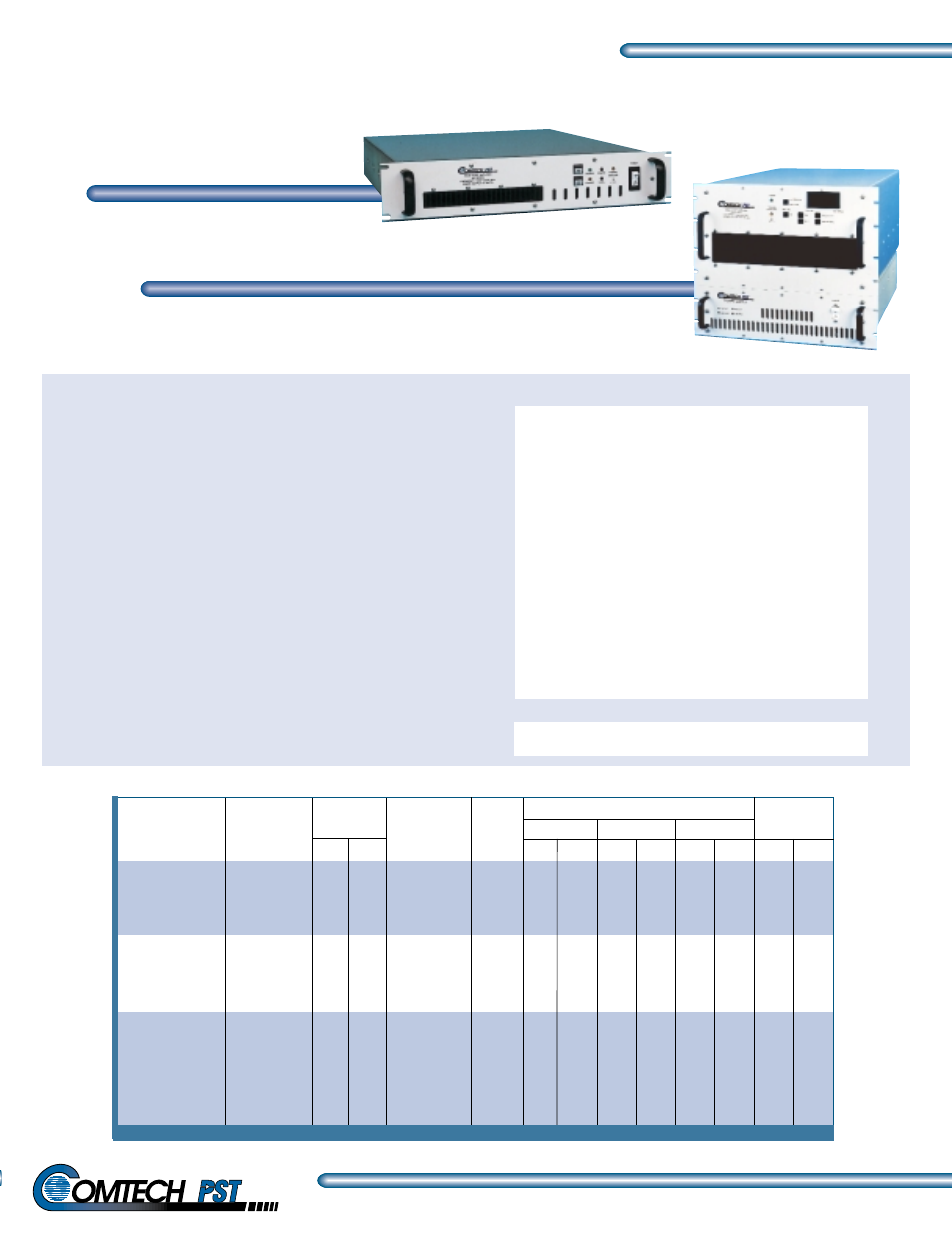

Series AR amplifiers are rack-mountable units which incorporate
the Series AM amplifier in a cabinet containing a built-in
universal AC power supply (for models up to 100 watts).
Models are available for operation at frequencies from 1 MHz
to 2 GHz and output power from 10 to 250 W. They are
forced-air cooled by blowers built into the mechanical package.
AR models are also available with an optional IEEE BUS for
remote control and monitoring (ARD version).
FEATURES:
■ Frequency Range: 1 MHz to 2 GHz; bandwidths
to multi-octave
■ Power Output: 10 to 250 watts
■ CE Compliant
■ Universal AC input (Models up to 100 watts)
Input Overdrive ...........................10 dB above 1 dB compression
RF Input Signals...........................CW, FM, AM, and pulse/phase
modulation
Small Signal Gain Flatness:
• AR1658 ..................................±2.0 dB
• AR4819 & AR1929 .................±1.0 dB
Noise Figure ................................10 dB Typical
Harmonics...................................
- 20 dBc
Spurious Signals .......................... - 60 dBc
Input VSWR.................................2:1
Load VSWR .................................Open or short-circuit protected,
unconditionally stable
RF In/Out Connector
• Up to 50 W ............................Type N, female bulkhead
front panel mounted
• > 50 W ...................................Type N, female bulkhead
rear panel mounted
AC Input .................................Universal AC input for models
up to 100 watts
Units above 100 watts are
supplied at 220 VAC
ELECTRICAL
• IEEE 488 BUS • Digital Power Meter
• Gain Control • Rack Mounting Slides
AVAILABLE OPTIONS
Series AR
GENERAL PURPOSE LINEAR AMPLIFIERS
400-1000 MHz 10 Watts
1-2 GHz 250 Watts
™ w w w. c o m t e c h p s t . c o m
Frequency Power Out Gain@Rated Line Dimensions
Model No. Range (W) Power Out Power H W L Weight
(MHz) 1 dB Sat (dB min) (VA) (in) (cm) (in) (cm) (in) (cm) (lbs) (kg)
1
to
500
400
to
1000
1000
to
2000
AR1658-10 10 15 40 250 5.25 13.3 19 48.3 22 55.9 25 11
AR1658-25 25 30 44 540 5.25 13.3 19 48.3 22 55.9 30 14
AR1658-50 50 70 47 1,140 5.25 13.3 19 48.3 22 55.9 45 20
AR4819-10 10 15 40 295 5.25 13.3 19 48.3 22 55.9 25 11
AR4819-25 25 40 44 615 5.25 13.3 19 48.3 22 55.9 30 14
AR4819-50 50 75 47 1,230 5.25 13.3 19 48.3 22 55.9 45 20
AR1929-10 10 13 40 185 5.25 13.3 19 48.3 22 55.9 25 11
AR1929-30 30 34 45 600 5.25 13.3 19 48.3 22 55.9 37 17
AR1929-50 50 55 47 980 5.25 13.3 19 48.3 22 55.9 45 20
AR1929-100 100 115 50 2,500 8.75 22.2 19 48.3 26 66.1 100 45
AR1929-250 250 350 54 4,000 14.00 35.56 19 48.3 26 66.1 150 68
For Environmental Specifications, see Page 18, Table 2.
Specifications are subject to change without notice.
