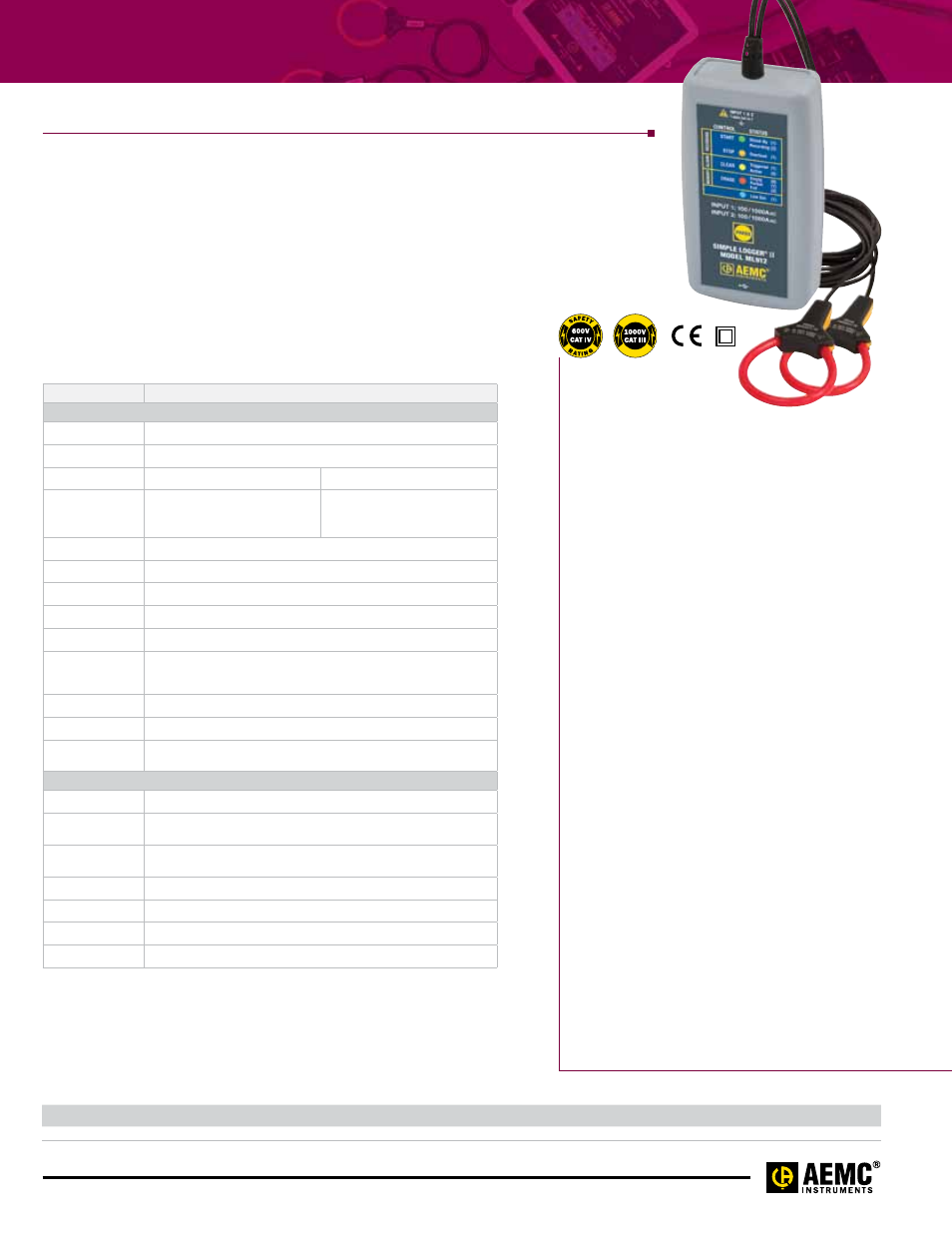

Atec AEMC-ML912 - Manual

46 www.aemc.com Technical Assistance (800) 343-1391
 featureS
• Includes two integral MiniFlex ® flexible
current probes that will measure from
0.5A to 1000A TRMS with 0.1A
resolution
• Dual range 100/1000A user selectable
per channel
• 64 samples per cycle
• Programmable storage rates from 8
every second to 1 every day
• 4 user selectable storage modes
• Stores up to 240,000 measurements
in non-volatile memory
• Powered by standard
Alkaline batteries
• Lightweight, compact, fits anywhere
• 5 LED indicators quickly and clearly
display logger status
• Includes FREE DataView ® software
for data storage, real-time display,
analysis and report generation
• Isolated USB 2.0 communication
cable included
• EN 61010-1; 600V CAT IV,
1000V CAT III
 applicationS
• Single and Split phase load monitoring
• Neutral and ground current monitoring
• Intermittent problem detection
• Harmonic current monitoring using
DataView ® software
• Machine load monitoring
• Fault current detection
• Load profiling
DATA LOGGERS
Simple Logger ® II TRMS Current
 SpecificationS
MODEL ML912
electRIcal
Channels
Two
Input Captive MiniFlex ® AC Current Flexible Sensors
Range 0.5 to 100A ac 5 to 1000A ac
Accuracy
(50/60Hz)
0 to 1A unspecified
1 to 100A:
±(1% of Reading + 0.5A)
0 to 5A unspecified
5 to 1000A:
±(1% of Reading + 1A)
Resolution 0.1A
Sample Rate 64 samples/cycle
Storage Rate Programmable from 8 every second to 1 every day
Storage Modes Start/Stop, FIFO, Extended Recording Mode (XRM ™ )* and Alarm
Recording Length 15 minutes to 8 weeks, programmable using DataView ®
Memory 240,000 measurement (512KB)
The recorded data is stored in non-volatile memory
and will be retained even if the battery is low or removed.
Communication USB 2.0 optically isolated
Power Source 2 x 1.5V AA-cell Alkaline batteries (included)
Battery Life 100 hrs to >45 days
(dependent on storage rate/recording length)
MechanIcal
Dimensions
4.95 x 2.75 x 1.28" (136 x 70 x 32mm) w/o Sensor
Max Conductor
Size Sensor: 6" (152mm)/Cable: 6 ft (2m)
weight
(with battery)
8.67 oz (245g)
Case UL94-V0
Vibration IEC 68-2-6 (1.5mm, 10 to 55Hz)
Shock IEC 68-2-27 (30G)
Drop IEC 68-2-32 (1m)
catalog no. DescRIptIon
2126.37 Simple Logger ® II Model ML912 (2-Channel, TRMS, MiniFlex ® , 100/1000A ac , DataView ® software)
R ATIN G
SAFETY
Dual channel MiniFlex ® Model Ml912
Two channel AC recording logger
incorporates two selectable
measurement ranges
