We’re committed to your testing success, and Bose has taken this commitment
to a new level by offering free technical phone and E-mail support so you can
keep your testing program moving forward. Timely and effective technical
support can be critical to reach your testing goals. When you need help, we
want to to to make it easy to get answers
.
Lifetime Customer Support
• Commitment to on-time instrument delivery
• Timely installation provided by our qualified field engineer team
• Thorough training during installation to assure your testing productivity
• Ongoing live web training classes for new users without charge

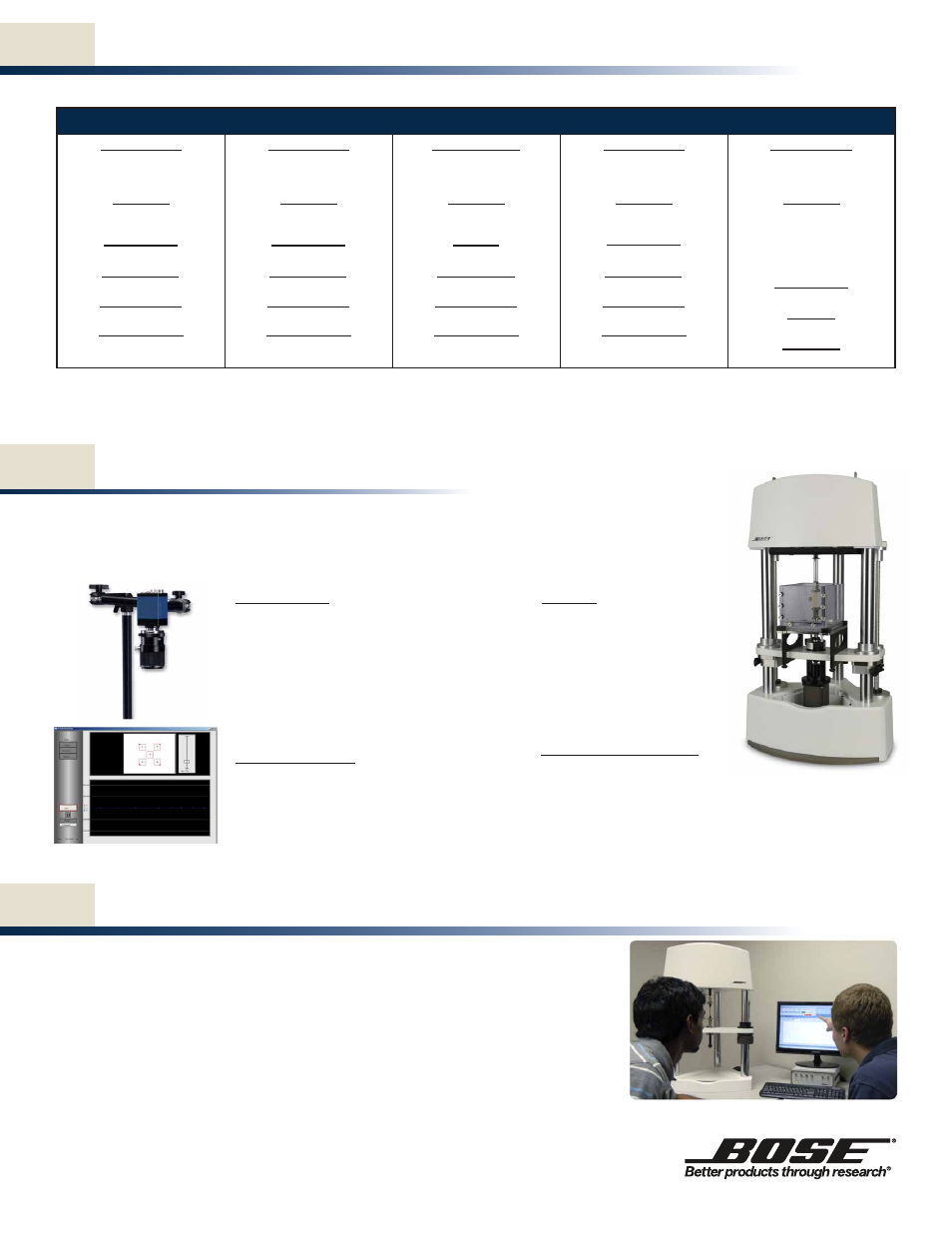

ElectroForce ® 3200 Series III Test Instrument Configurations
This table-top test instrument is readily adaptable for a variety of testing applications.
3220 Base System
Force Capacity
Peak/max sine : ± 225 N
Static or RMS: ± 160 N
(continuous)
3230 Base System Torsion Option Extended Stroke (ES) Option BioDynamic ® Option
Frequency
0.00001 - 300 Hz
DMA max: 200 Hz
Test Space Size
Vertical = 0 - 43.1 cm
Horizontal = 35.5 cm
Force Capacity
Peak/max sine : ± 450 N
Static or RMS: ± 320 N
(continuous)
Frequency
0.00001 - 300 Hz
DMA max: 200 Hz
Test Space Size
Vertical = 0 - 43.1 cm
Horizontal = 35.5 cm
Torque Capacity
Peak/max sine : ± 5.6 N-m
Frequency
0.00001 - 100 Hz
DMA: NA
Test Space Size
Vertical = 0 - 34.7 cm
Horizontal = 35.5 cm
Force Capacity
Equals base system
Frequency
0.00001 - 5 Hz
DMA max: 80 Hz
Test Space Size
Vertical = 0 - 31 cm
Horizontal = 35.5 cm
Force Capacity
Peak/max sine : ± 200 N
Pulse Volume
8.8 mL/pulse
Pressure
0-500 mmHg
Mean Flow
17 - 1760 mL/min
Frequency
0.00001 - 20 Hz
DMA max: 10 Hz
Facility Information
Height=105 cm, Width=57.9 cm, Depth=51.8 cm. MSF option adds 7.6 cm to the frame height.
Weight=98 kg. 3230 adds 7 kg to the base system. Torsion and ES option adds 6 kg to the base. MSF option adds 31 kg to base (including water filled bath)
*Specifications are subject to change
PULSATILE LOADING
Displacement
+/- 6.5 mm
Motor Velocity
Static to 3.2 m/s
Min Ramp Rate
0.0065 micron/s
Displacement
+/- 6.5 mm
Motor Velocity
Static to 3.2 m/s
Min Ramp Rate
0.0065 micron/s
Rotation
+/- 10 revolutions
Motor Velocity
Static to 6000 deg/s
Min Ramp Rate
0.0036 deg/s
Displacement
150 mm
Motor Velocity
Static to 60 mm/s
Min Ramp Rate
0.0065 micron/s
Bose carries an extensive line of test equipment accessories. ElectroForce ® test instruments can
be integrated with a variety of specimen fixtures, measurement transducers, environmental
chambers, saline baths and optional software. Contact the ElectroForce Systems Group for test
frame options and accessory packages to meet your specific testing needs.
Software and Accessory Options
3200 Series III System
with Torsion Option and
Saline Bath
Sensors
Force/Torque
Displacement/Rotation
Strain
Pressure
Chemical
Acceleration Compensation Grips/platens
Tension/Torsion Grips
Wedge Grips
DMA Grips
Tissue Grips - Thermal-Electrically Cooled
BioDynamic
® Tensile Grips
Compression Platens
BioDynamic Compression Platens
Software Options
Advanced Security Suite
Dynamic Mechanical Analysis
Dynamic Link Libraries
Advanced Function Generation
Digital Video Extensometer
Fixtures and Chambers
3 and 4 Point Bend
Multispecimen Fixture
Saline Baths
BioDynamic Chamber
Hot/Cold Chambers
