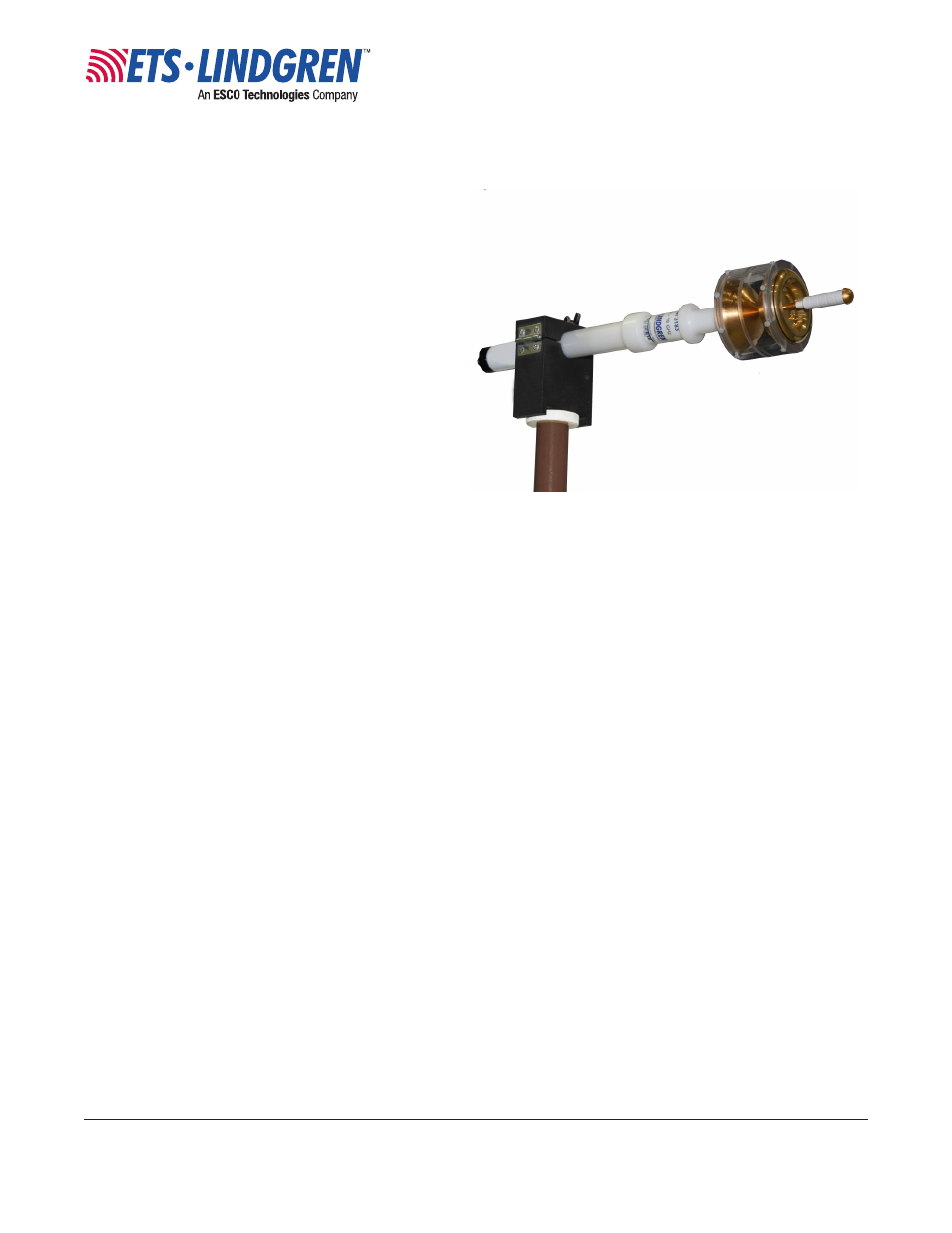

ETS-Lindgren’s Model 3183 Mini-Bicon Antenna
Broadband
Mini-Bicon Antenna
EMC Antennas
THE ETS-LINDGREN MODEL 3183
BROADBAND MINI-BICON ANTENNA
was designed for CISPR 16 cham-
ber characterization. The antenna
has a broadband frequency range
of 1 GHz - 18 GHz. Its omnidirec-
tional pattern conforms to CISPR 16
specifications.
FEATURES
Frequency Range
The Model 3183 is designed to
have the lowest possible VSWR
across its range of operation.
The antenna exhibits an average
2:1 VSWR.
Radiation Pattern
The radiation pattern of the
Model 3183 is omnidirectional in
the H-plane. This means the
antenna can receive signals from
every direction around its axis.
CISPR 16 Conformance
The radiation pattern closely con-
forms to the CISPR 16 requirements
for chamber validation. Because of
its small size, the antenna can also
be used for amplifier harmonic
measurements when performing
tests per the IEC 61000-4-3.
Spectrum Monitoring
The Model 3183 can be used for
EM Field surveying and spectrum
monitoring. The low weight design
allows use as a field surveying tool,
in conjunction with a portable
spectrum analyzer.
STANDARD CONFIGURATION
n
Antenna
n Antenna Mount for Tripod
n Manual
n Individually Calibrated at 1 m
per SAE ARP 958 at our
A2LA accredited lab. Actual
Antenna Factors and a Signed
Certificate of Calibration
Conformance Included
with Manual
OPTIONAL CONFIGURATION
n
ETS-Lindgren offers several
non-metallic, non-reflective
tripods
n 1 GHz - 18 GHz Frequency Range
n Radiation Pattern Conforms to
CISPR 16 Specifications
n Ideal for:
-- Chamber Characterization per CISPR 16
-- Harmonic Measurements per IEC 61000-4-3
FEATURES:
Model 3183
