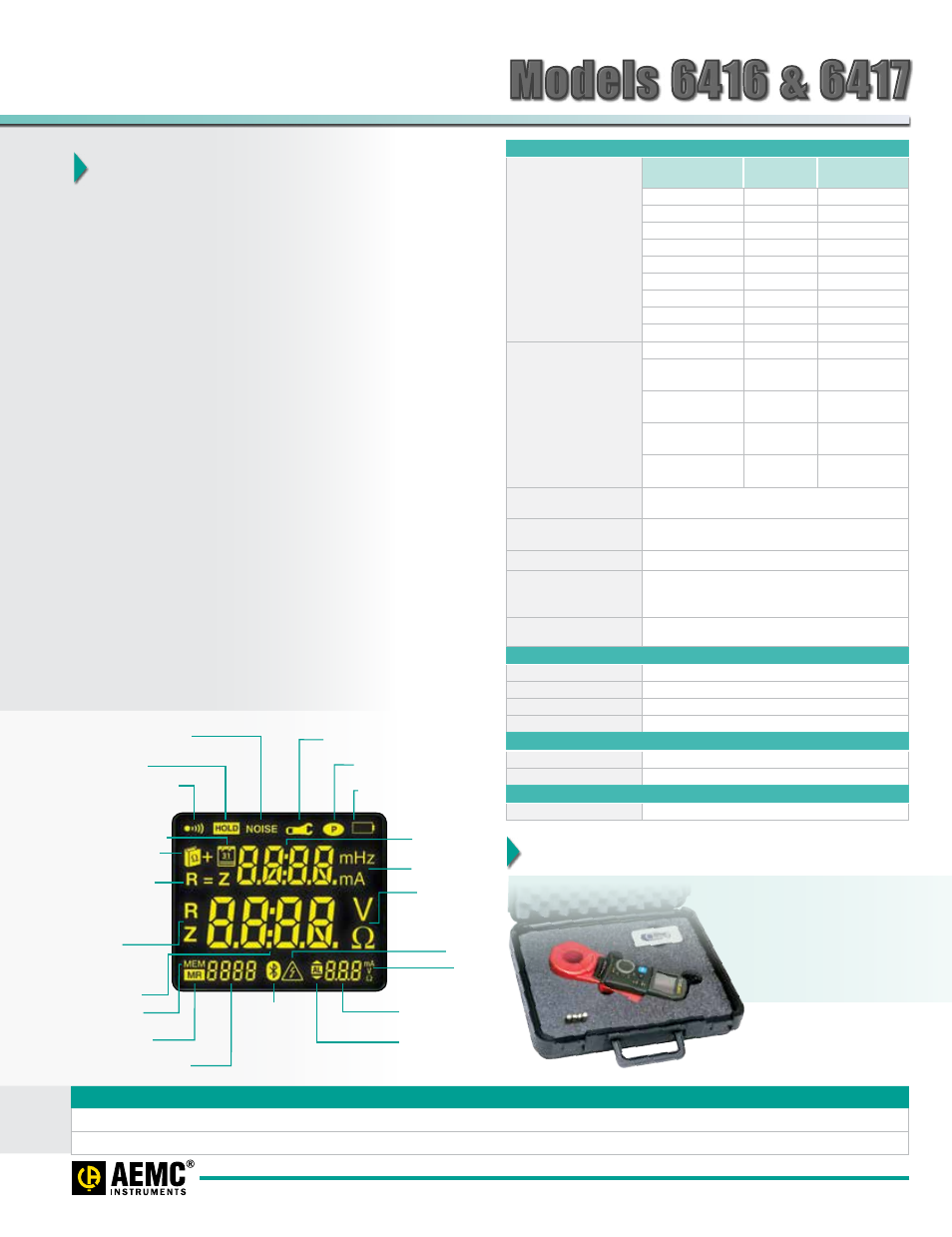

Technical Assistance (800) 343-1391 www.aemc.com 3
FEATURES
► Touch voltage is displayed to alert user to potential
unsafe conditions
► Large multi-function, bright yellow organic display (OLED)
usable in all lighting conditions
► Display in Standard mode (1 screen) or Advanced mode
(3 screens)
► Selectable test frequency improves accuracy in inductive
environments
► Differentiates between loop and ground resistance
measurements
► Data storage (Ω and/or A, with time-stamping)
Model 6416: stores up to 300 measurements
Model 6417: stores up to 2000 measurements
► Displays stored measurements on the OLED display or by
Bluetooth to a PC or the Android based mobile application.
(Model 6417)
► Easy clamp opening by a force compensation trigger system
► Large jaw design, 1.38" (35mm) accommodating up to
1000kcmil cables
► Alarm function with adjustable set point and buzzer for quick
field checks
► Rugged Lexan ® head and body construction resists breakage
► Alarm settings and stored memory information saved during
shutdown (Model 6417)
► NOISE icon and buzzer alert user to presence of dangerous
voltage and current levels
► Automatic Hold of measurement when jaw is opened
Hard carrying case, calibration
loop, four 1.5V AA batteries, and
USB stick supplied with ground
tester workbook and user manual.
Model 6417 also includes
DataView
® software on USB sitck.
SPECIFICATIONS
ELECTRICAL
Ground Resistance
Auto-Ranging
0.01 to 1500 Ω
Measurement
Range
Resolution
Accuracy
(% of Reading)
0.010 to 0.099 Ω 0.001 Ω ±1.5% ±0.01 Ω
0.10 to 0.99 Ω 0.01 Ω ±1.5% ±0.01 Ω
1.0 to 49.9 Ω 0.1 Ω ±1.5% ±0.1 Ω
50.0 to 99.5 Ω 0.5 Ω ±2% ±0.5 Ω
100 to 199 Ω 1 Ω ±3% ±1 Ω
200 to 395 Ω 5 Ω ±5% ±5 Ω
400 to 590 Ω 10 Ω ±10% ±10 Ω
600 to 1150 Ω 50 Ω 20% approx
1200 to 1500 Ω 50 Ω 25% approx
Current Measurement
Auto-Ranging
0.2mA to 40A
0.200 to 0.999mA 1µA ±2% ±50µA
1.000 to 2.990mA
3.00 to 9.99mA
10µA ±2% ±50µA
10.00 to 29.90mA
30.0 to 99.9mA
100µA ±2% ±100µA
100.0 to 299.0mA
0.300 to 0.990A
1mA ±2% ±1mA
1.000 to 2.990A
3.00 to 39.99A
10mA ±2% ±10mA
Resistance Measurement
Frequency
50, 60, 128 or 2083Hz (user selectable)
Current Measurement
Frequency
47 to 800Hz
Touch Voltage Display 0.1 to 75.0V ac
Power Source 4x1.5V LR6 (AA) Alkaline batteries or 4 NiMH batteries;
Battery life: 12 hours, or 14,400 30-second
measurements approx
Data Storage Model 6416: 300 measurements;
Model 6417: 2000 measurements
MECHANICAL
Dimensions 2.16 x 3.74 x 10.31” (55 x 9 x 262mm)
Weight 2.06 lbs (935g) approx. with batteries
Jaw Opening 1.38” (35mm) max
Display Multi-function, bright yellow organic display (OLED)
ENVIRONMENTAL
Operating Temperature -4° to 131°F (-20° to 55°C)
Operating Humidity 10% to 90% RH
SAFETY
Safety Rating EN 61010-1 (Ed. 2 of 2001); 600V CAT IV
PRODUCT INCLUDES
Models 6416 & 6417
ORDERING INFORMATION CATALOG NO.
Ground Resistance Tester Model 6416 (Clamp-On, Alarm, Memory) Cat. #2141.01
Ground Resistance Tester Model 6417 (Clamp-On, Bluetooth, Alarm, Memory, DataView ® software) Cat. #2141.02
Advanced Mode
selection
Hold function
Disturbance indicator
(current) in the loop
Incorrect jaw closing indicator
Auto Power Off indicator
Buzzer is displayed
when active
Measurement
date/time display
Battery charge indicator
4000-count upper
measurement
display
Upper display
measurement unit
Main display
measurement unit
Alarm
measurement
display unit
Signal for
hazardous
voltage
Alarm threshold
display
Alarm threshold
indicator
Main display
Indicates when
the inductive
component
is negligible in
Advanced Mode
Symbols
identify the value
displayed in
Advanced Mode
Data Storage
indicator
Memory Recall
indicator
Memory Index display
Bluetooth
connection
indicator
