Displays
catalog no. DescRIptIon
2130.31
Megohmmeter Model 6550 (Graphical, Analog Bargraph, Backlight, Alarm, Timer, 500V, 1000V,
2500V, 5000V, 10kV, Ramp, StepV, Variable, Auto DAR/PI/DD, USB w/DataView ® software)
2130.32
Megohmmeter Model 6555 (Graphical, Analog Bargraph, Backlight, Alarm, Timer, 500V, 1000V,
2500V, 5000V, 10kV, 15kV, Ramp, StepV, Variable, Auto DAR/PI/DD, USB w/DataView ® software)
All stored test results presented on screen.
Clear and straight forward set up of parameters.
Models 6550 & 6555
MEGOHMMETERS
10,000 & 15,000V Digital
 featureS
• True Megohmmeter ®
• Fixed or programmable test voltage from
40V to 10kV/15kV
• Wide measurement range from 10kΩ to 30TΩ
• 5mA charging current
• Step voltage testing
• Ramp voltage testing
• Automatic calculation of DAR / PI / DD /∆R
(ppm/V) ratios
• Large, backlit graphical LCD screen with
digital display, bargraph and R(t)+V(t), I(t)
and I(V) graphs
• Multiple test modes: voltage ramp and step
with “Burn-In”, “Early-Break” and “I-Limit”
modes
• Three filter settings to optimize measurement
stability
• Calculation of R at a reference temperature
• Storage of 80,000 measurements

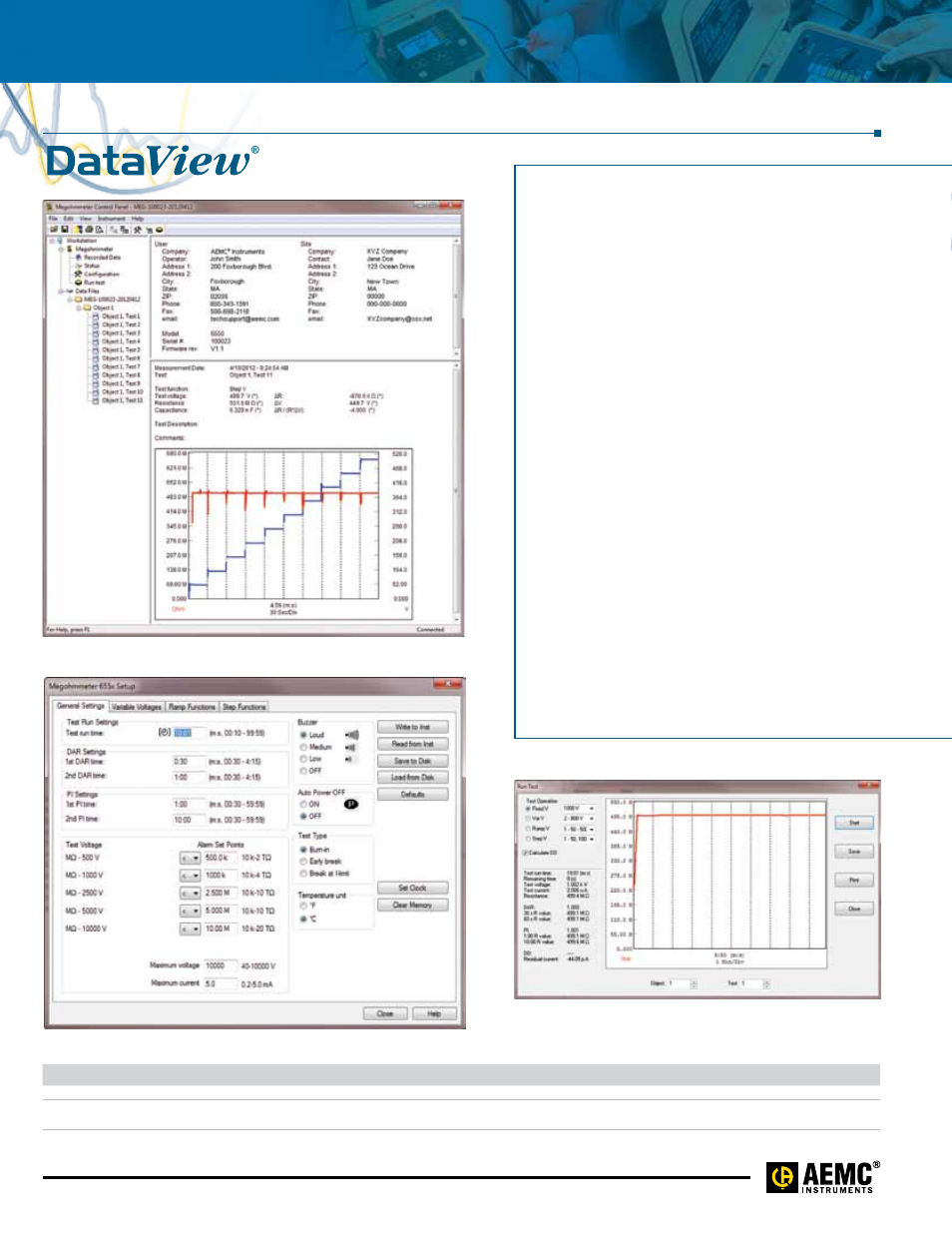

• Includes DataView ® software for data
storage, real-time display, analysis
and report generation
• Optically-isolated USB communication
for transfer onto PC and report generation
with DataView ® software
Real-time display of measurement results.
