Technical data
General
Frequency range 0.01 … 0.1 Hz Conforming to CE
EN 61010-01; EN 50191;
EN 55011; EN 61000-4
Input voltage 110…240 V, 50/60 Hz Data interface USB 2.0
Max. power consumption 300 W Protection class IP 54
Ambient temperature -10…+50 °C Languages
German, English, Dutch, French,
Spanish, Italian, Portuguese,
Czech, Polish, Russian, Korean,
Malay, Chinese (Cn),
Chinese (Tw)
Storage temperature -20...+60 °C Dimensions (W x H x D) 438 x 412 x 220 mm
Weight 19.5 kg
Output voltage Output current
VLF true sine 1…24 kV
eff
(34 kV
peak
) Measurement range 0…14 mA
VLF rectangular wave
voltage
1…34 kV Resolution 1
µΑ
DC voltage ±34 kV Accuracy 1 %
Resolution 0.1 kV Max. load 0.5
µ
F at 0.1 Hz, 24 kV
eff
Accuracy 1 % 1.0
µ
F at 0.05 Hz, 24 kV
eff
Load range 10 nF...8
µ
F 8.0
µ
F at 0.01 Hz, 18 kV
eff
Tan delta measurement (frida TD)
VLF true sine 1…24 kV
eff
Tan delta measurement
frequency
0.1 Hz
Load range 10 nF...8
µ
F
Detection of termination surface
leakage currents
with VSE box (optional)
Accuracy 1x10 -4 Resolution 1x10 -5

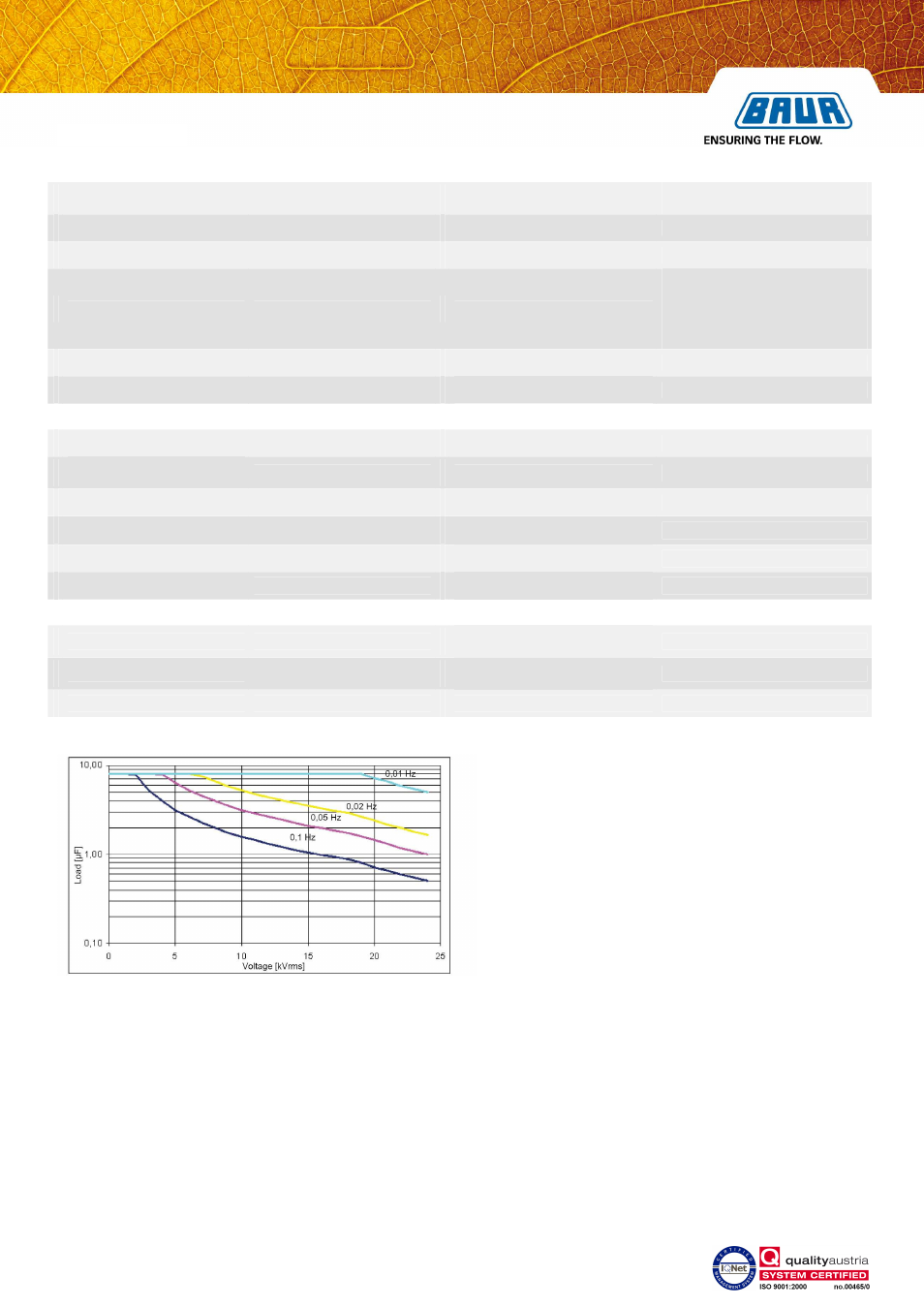

Load diagram VLF true sine
frida delivery includes
HV testing device with 5 m HV connection cable
(connected)
Ground and discharge rod
Earth cable
Jumper plug for external emergency-stop unit
Mains connection cable, User manual
Options
Partial discharge location system PD portable
External emergency-stop unit with signal lamps
(25 m or 50 m)
frida TD delivery includes
HV testing device with 5 m HV connection cable
(connected)
Ground and discharge rod
Earth cable
Jumper plug for external emergency-stop unit
Tan delta measurement incl. PC software
Mains connection cable, User manual
Options
VSE box incl. connecting cable
Partial discharge location system PD portable
External emergency-stop unit with signal lamps
(25 m or 50 m)
Data sheet
