Atec Bird-SA Series - Manual (Page 2)

EX Series
Site Analyzer
EX Series
Bird ® Technologies Group, consisting of Bird ® Electronic Corporation and TXRX Systems ® , is a global, innovative supplier of RF products, systems, services and educational solutions.
Bird ® Technologies Group reserved the right to modify specifications or discontinue any product without notice.
www.bird-technologies.com 440.248.1200/866.695.4569 [email protected]

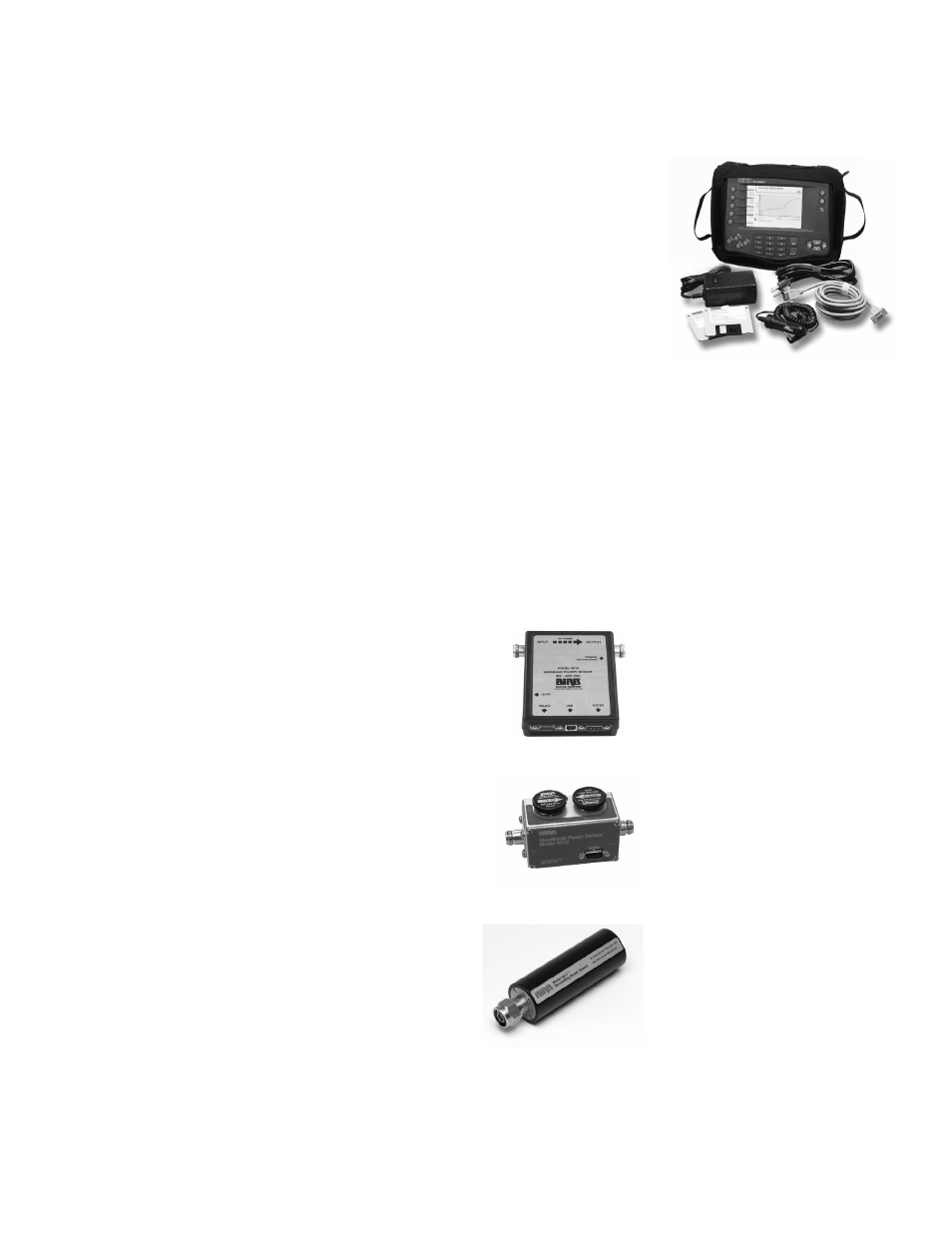

Bird’s® Site Analyzer® is the user-friendly test solution for installing, maintaining, and
troubleshooting your antenna and cable systems. Field engineers and technicians rely
on this rugged handheld tool to get the job done. Wireless equipment manufacturers,
service providers, contractors, tower erectors and military field personnel world wide
approve of the analyzer’s precision VSWR and Return Loss results.
This versatile product also includes a Digital Power Meter option to accurately mea-
sure the output power of your base station. Wideband Power Sensors are available
from Bird up to 4 GHz for use with this option, and are listed with the Accessories
below.
DIGITAL POWER METER OPTION
Digital Power Meter option allows accurate power readings for digital or analog systems including those with CDMA,
GSM, TDMA, or AMPS modulation. Operators of analog and digital two-way radio systems, including tactical military
users, will benefit as well.
• Compatible with the Model 5010B Directional Power Sensor to display forward and reflected power as
well as VSWR and Return Loss, DPM elements range from 2 MHz – 2700 MHz.
• Compatible with the Model 5011 terminating Power Sensor to measure power directly or via a coupled
test port from 40 MHz – 4000 MHz.
• Compatible with the Model 5012 Wideband Power Sensor to display forward and reflected power 350-
4000 MHz. Digital Power Meter option included with SA-1700EXP, SA-2500EX and SA-6000EX.
ACCESSORIES
Model Description
CAL-MN-C Calibration combo, (M) N
CAL-FN-C Calibration combo, (F) N
CAL-ME-C Calibration combo, (M) 7/16 DIN
CAL-FE-C Calibration combo, (F) 7/16 DIN
4240-550 Precision Adapter Kit, 7/16 DIN, SA-Series
5012 Wideband Power Sensor, 350-4000 MHz
5011 Terminating Power Sensor, 40-4000 MHz
5010B Directional Power Sensor, 2-2700 MHz
TC-MNME-1.5 Test Cable, 1.5m, N (M) - 7/16 DIN (M)
TC-MNME-3.0 Test Cable, 3.0m, N (M) - 7/16 DIN (M)
TC-MNMN-1.5 Test cable, 1.5 m., N (M) conn.
TC-MNMN-3.0 Test cable, 3 m., N (M) conn.
TC-MNFN-1.5 Test cable, 1.5 m., N (M)/N (F) conn.
TC-MNFN-3.0 Test cable, 3 m., N (M)/N (F) conn.
TC-MNFE-1.5 Test cable, 1.5 m., N (M)/7/16 DIN (F) conn.
TC-MNFE-3.0 Test cable, 3 m., N (M)/7/16 DIN (F) conn.
PA-MNME Adapter, N (M) to 7/16 DIN (M)
PA-FNME Adapter, N (F) to 7/16 DIN (M)
PA-MNFE Adapter, N (M) to 7/16 DIN (F)
PA-FNFE Adapter, N (F) to 7/16 DIN (F)
7002C870 Hard shell transit case
SA-BATPAK External battery pack
DC-DB9 USB Serial-USB Adapter
WiDeBAnD POWeR SenSOR
(MODeL 5012) The Model 5012 pro-
vides customers a TOTAL RF POWER
MEASUREMENT SOLUTION for
Directional power Measurement with
Accuracy of ±5% of readings.
DiReCtiOnAL POWeR SenSOR
(MODeL 5010B) The Model 5010B
provides customers a TOTAL RF
POWER MEASUREMENT SOLUTION
for Thruline® (In-Line) Power
Measurements with Accuracy of ±5% of
readings.
neW teRMinAtinG POWeR
SenSOR (MODeL 5011) The Model
5011 provides customers a TOTAL RF
POWER MEASUREMENT SOLUTION
to measure Base Station Power and/or
Broadcast Transmitter Power with
Accuracy of ±5% of readings
