3. Installation
164201241-001 Rev. C0
9
A bucket truck or other suitable equipment such as spikes and safety harnesses, should be
used during installation or service of pole-mounted cabinets. To mount the MiniMax power
supply to a utility pole, perform the following steps:
Pole mounting the cabinet should be done in accordance with the local
agreement between the cable operator and the utility company.
1.
Install an agency approved service disconnect switch with overcurrent protection
between the AC power source and the cabinet mounting point. Wire to power line in
accordance with local codes.
The disconnect box should have a high-magnetic type circuit breaker, capable of
passing short duration inrush currents, and have a 15A minimum rating.
NOTE
NOTE

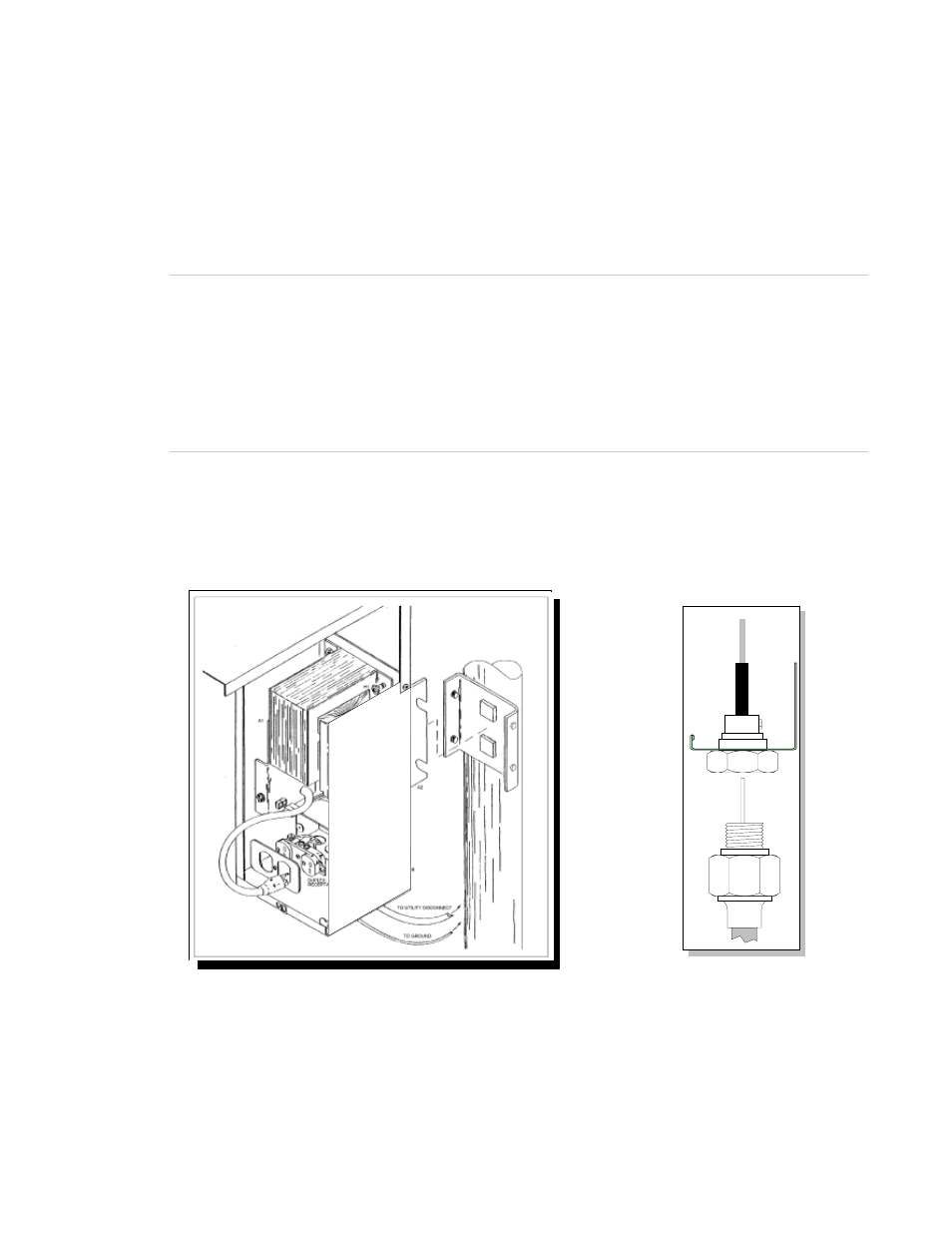

Fig. 3-1 MiniMax Pole Mount Arrangement
3.1
Pole Mounting
(Models PSF-MXP-*** and PCS-MXP-***)
Fig. 3-2
Output Voltage Connector
