3. Installation
16 164201241-001 Rev. C0

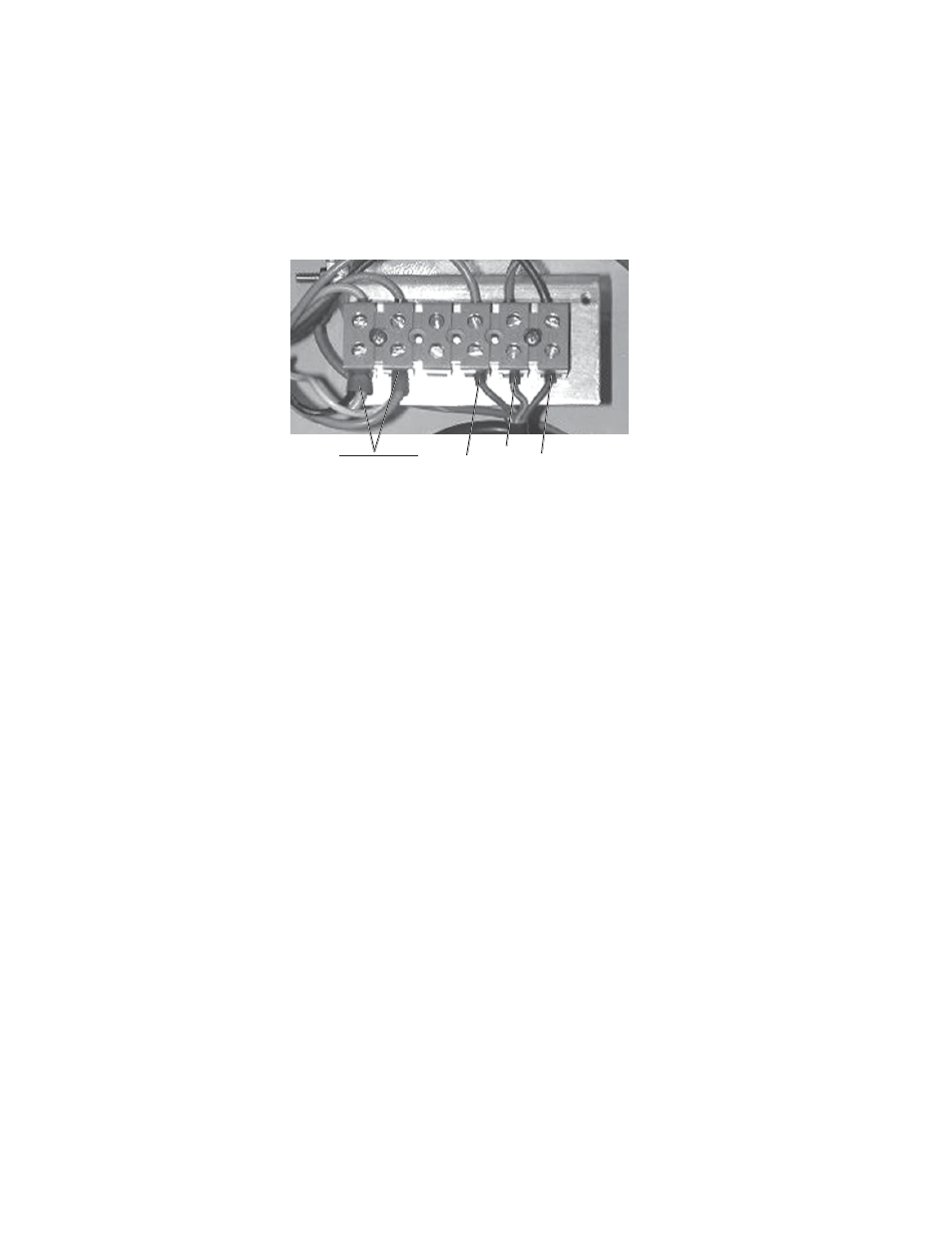

Fig. 3-7 Terminal Block Connections
7. Connect the CATV coax cable to the type G2 connector on bottom of the enclosure.
(Refer to figure 3-2.)
8. Test installation according to requirements. When power is applied to mains, and
appropriate cable load is connected, verify that output voltage across coax cable
connector is 60V ± 3%.
6. Connect the electrical service to the to terminal block located inside the unit, as
shown in figure 3-7.
3.4 Wall Mounting and Electrical Connection ( Models PSF-W00-D**, PSF-W00-D09, and
PSF-W00-D15), continued
60 VAC Out
N/C
N L
