1 field installation – Alpha Technologies APU Control Module (ACM) User Manual
Page 11
11
018-340-B0-001 Rev. A
2.0 Installation, Confi guration and System Interface
2.1 Field
Installation

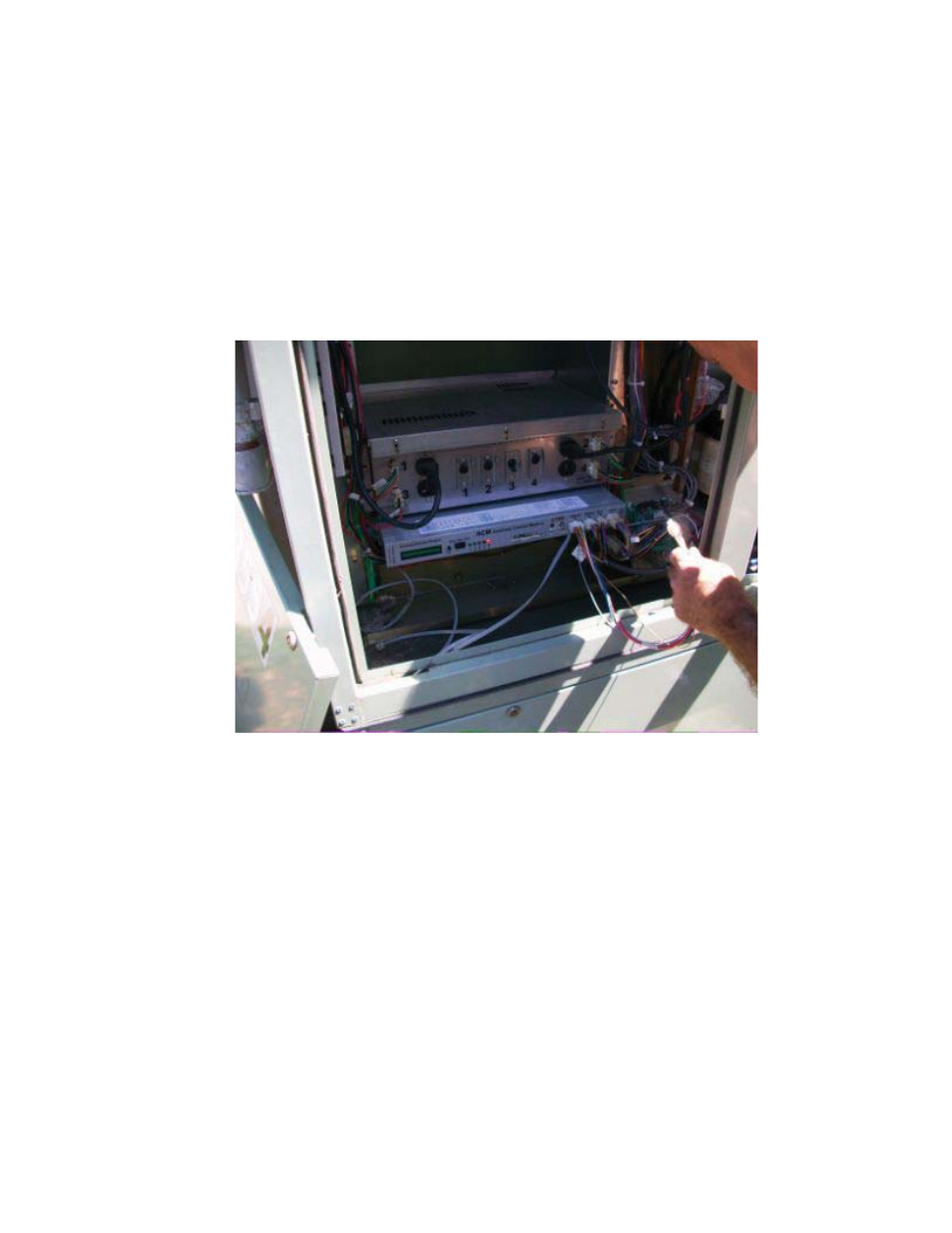

1. Disconnect all connectors from front of ACU.
2. Remove 4 screws from ACU mounting ears
3. Install ACM in place of ACU; install 4 mounting screws to secure ACM to rack and rail.
4. Connect ACM using existing cable assemblies
Fig. 2-1, CPS-6 Confi guration
