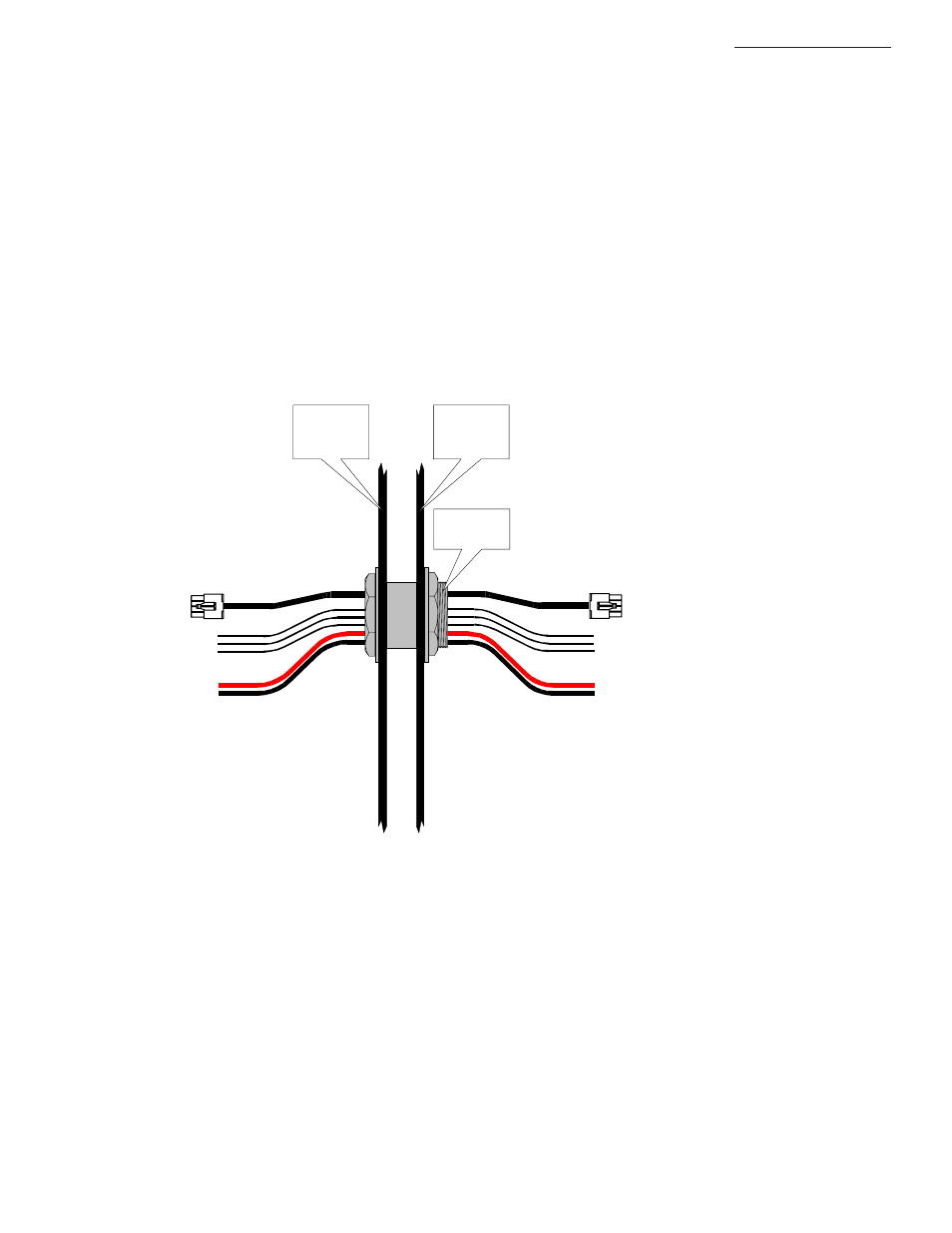

Fig. 5 interconnection wiring – Alpha Technologies CESC User Manual
Page 15
Generator
Enclosure
Side Wall
Sidecar
Enclosure
Back Wall
DC Output From Generator
Line
Neutral
Ground
Positive
Negative
120 VAC From Service Entrance
ECM Interface (status monitoring)
3" PVC
Coupling
The following cables must be routed either through a 3" sweep or coupling:
#4 AWG DC Output from the generator
120 VAC power from the CESC sidecar service entrance
ECM or ACU Interface cable (status monitoring)
2.3
Generator / Sidecar Inter-connecting Cables
2. Installation
15
031-106-C1-001 Rev. A
Fig. 5 Interconnection Wiring
