4.0 Installation,

continued

4.2

Coaxial Cable to Service Power Inserter (SPI) Installation, continued

4.2.2 Conduit

Placement

Conduit location is in the back of the enclosure, on the right side. The location is
specifi ed on concrete pad.

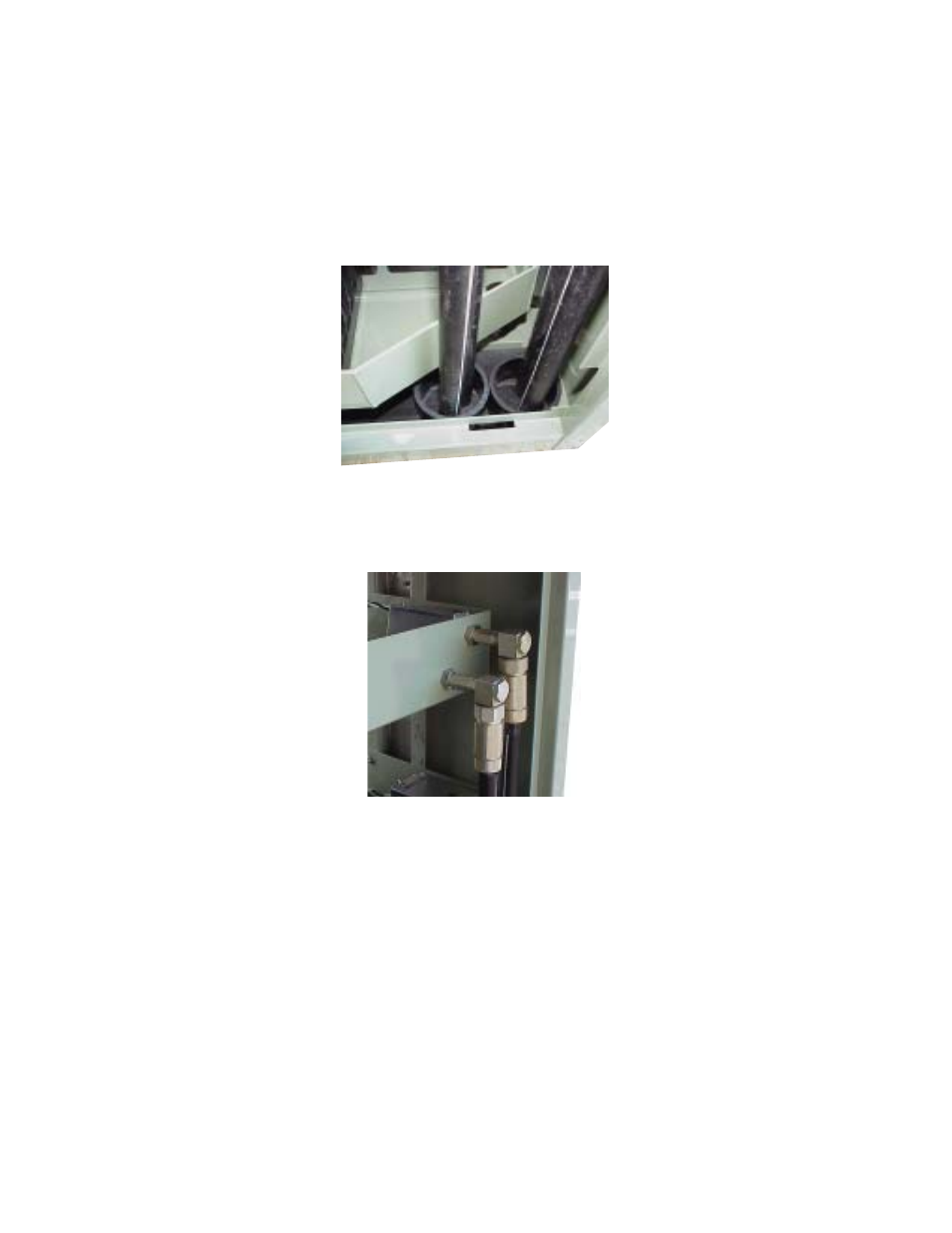

Fig. 4-10, Coaxial Connectors

Fig. 4-9, Conduit Location
