Installation of the V
out
and I
out
sense harness requires powering down the power supply. Use an alternate source
of power during this procedure.
CAUTION!
3.0 Connection Instructions, continued
745-419-C4-001 Rev. A (09/2009) 6
SPI
ZTT/+
3.4 ZTT and ZTT+ Power Supplies
2
3
5
7
8
9
10
11
4
12
1 RF Cable
2 Power Supply Interface
Alpha P/N: 875-335-22 (ZTT and ZTT+ Post 1998)
Alpha P/N: 875-335-23 (ZTT+ Pre 1998)
3,4 Battery Sense Wire Kit for: 36V single string, 6', Alpha p/n 874-842-21
36V single string, 9', Alpha p/n 874-842-27
36V dual string, 6', Alpha p/n 874-842-20
36V dual string, 9', Alpha p/n 874-842-28
48V single string, 6', Alpha p/n 874-841-21
48V single string, 9' Alpha p/n 874-841-25
48V dual string, 6', Alpha p/n 874-841-20
48V dual string, 9', Alpha p/n 874-841-24
5 Battery Heater Mat Control cable Alpha p/n 875-627-20
6 Ethernet Cable Customer-supplied
7 RTS Cable (optional) Alpha p/n 745-178-21
8 Vin Sense (optional) Alpha p/n 875-493-21
9 Surge Protector Ground Block Alpha p/n 162-028-10
10 Vout Iout Sense Harness Alpha p/n 875-456-10
11 Tamper Wire Kit Enclosure-specific
12
Plug-in Lightning Arrestor w/pass thru
(130V) L-G, L-N, N-G
Alpha p/n 162-046-10
Legend
1

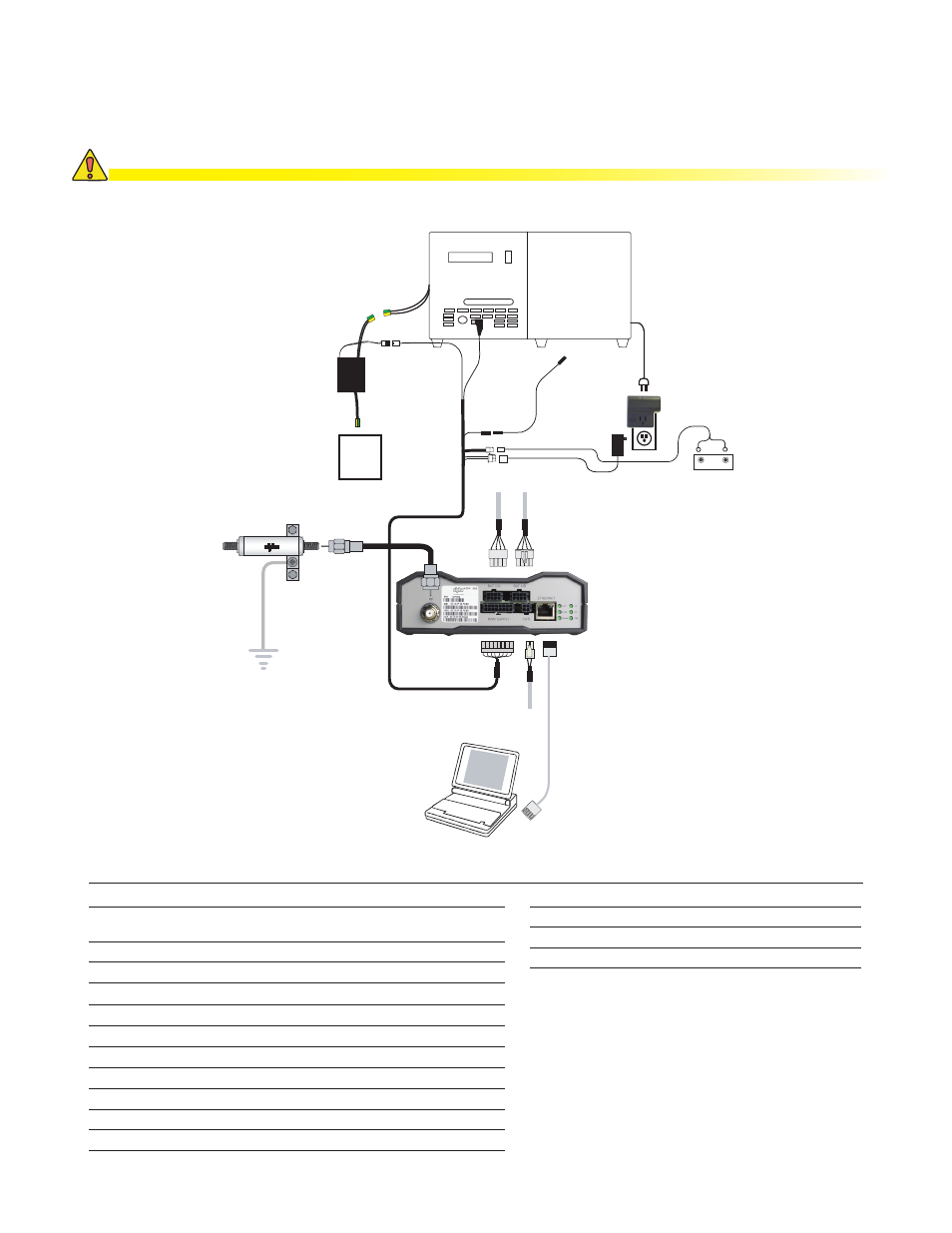

Figure 5, Connections between the transponder and the system
