4.2 Locally via a Web browser, continued
Once the transponder is online, power supply data is also available via the Web page. Click on “HMS,”
and then “PS1” to see information which confirms the battery sense harness is connected properly and
the transponder is configured for the right power supply.
4.3 Remote via HTTP
Enter the cable modem’s network IP address into a Web browser and follow the steps in Section 4.2.
4.4 Remote via SNMP
Enter the cable modem’s network IP address into a MIB browser and use “DOCSIS” for both the get and
set community strings.
Query the power supply’s input voltage. [OID: 1.3.6.1.4.1.5591.1.4.2.1.23.1] A valid response verifies
remote SNMP communications.
4.0 Verifying Installation and Network Connectivity (applies to all power supplies), cont'd.
745-419-C4-001 Rev. A (09/2009) 10

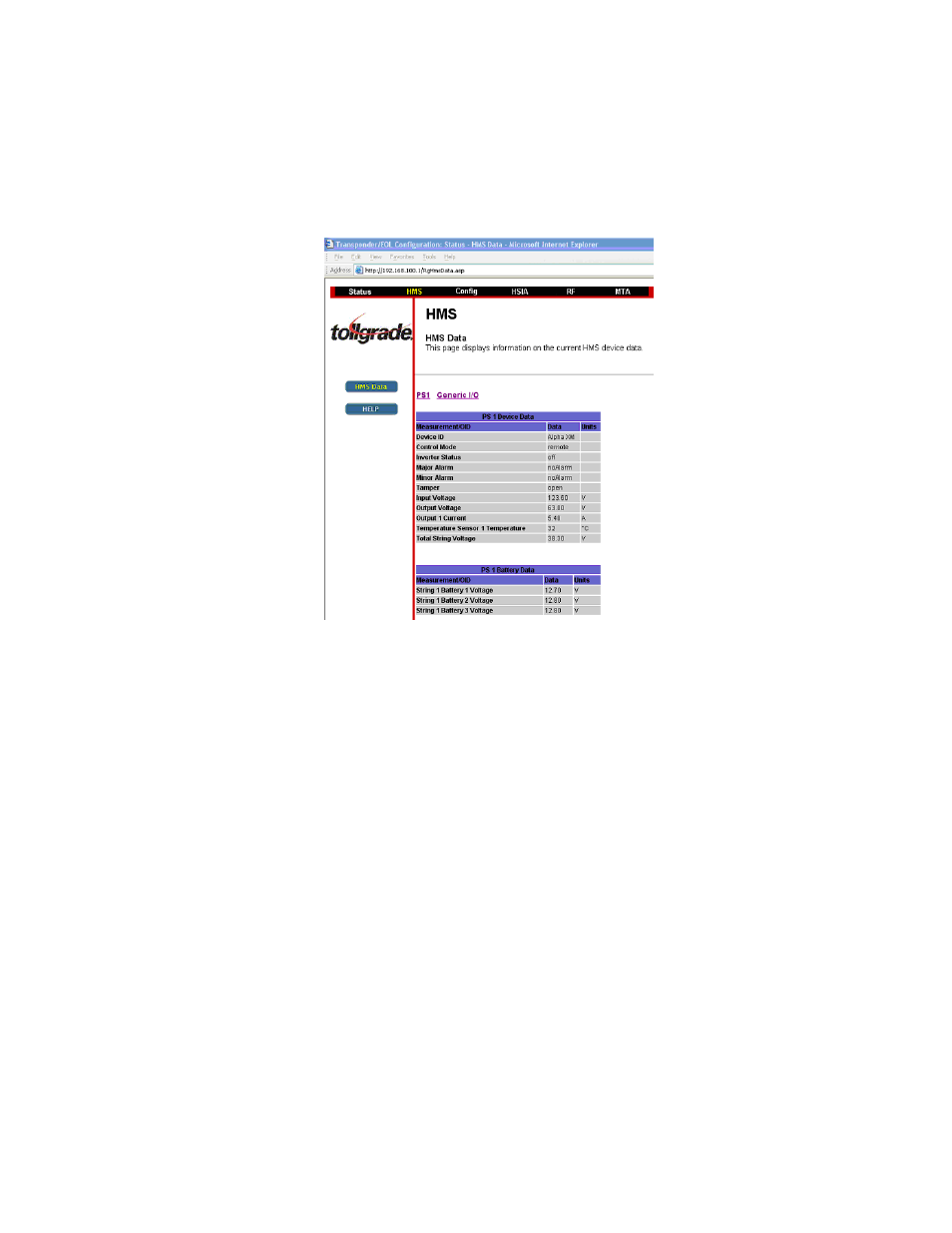

Figure 9, HMS Device Data Screen
