745-419-C3-001 Rev. A (02/2009) 6
SPI
1
2
3
4
5
6
7
8
2

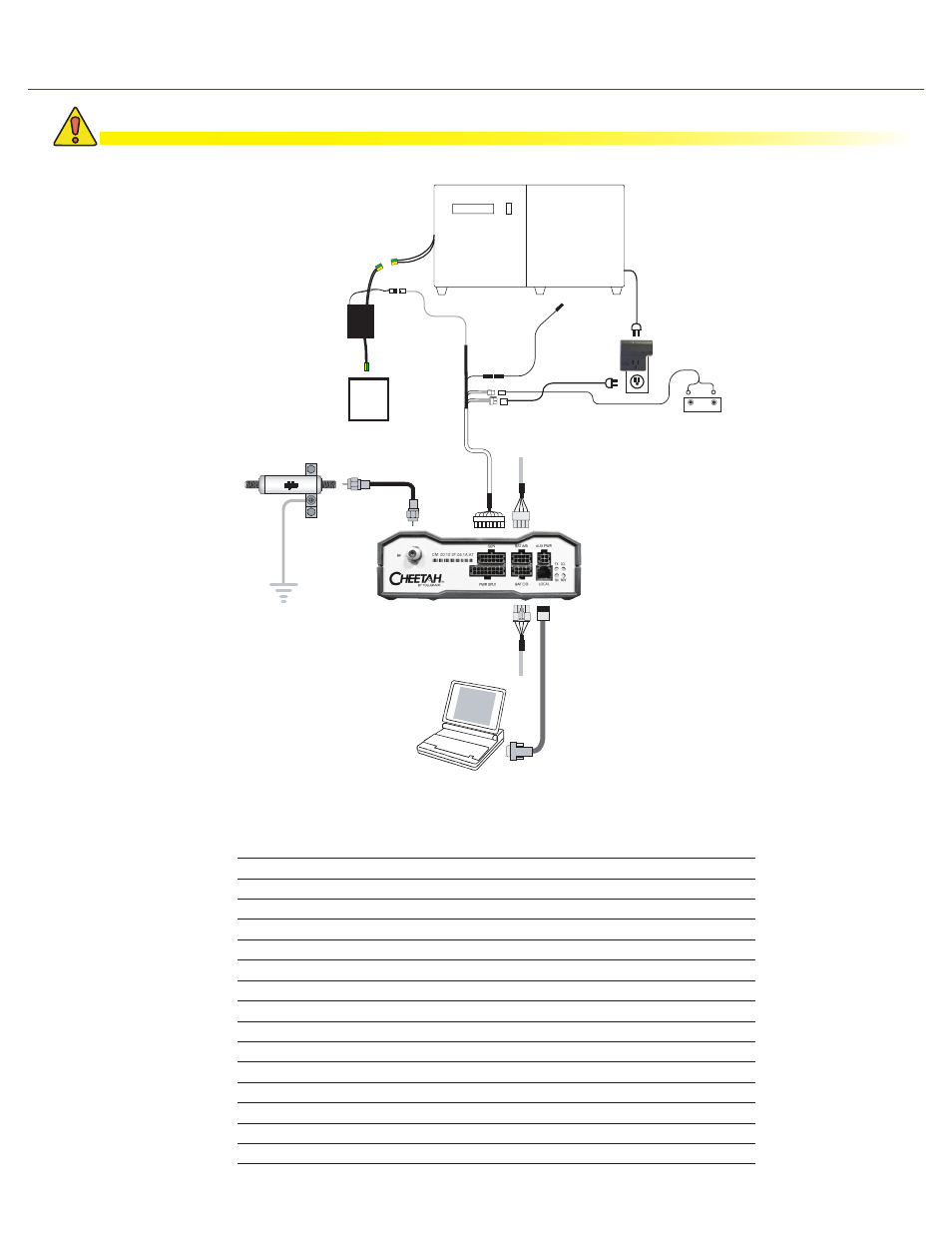

input and Output Connections, Generic Models
Connections between transponder, power supply and laptop
Legend
1 Power Supply Interface Alpha P/n: 875-335-25
2 Battery Sense Wire Kit for: 36V single string, 6', Alpha p/n 874-842-21
36V single string, 9', Alpha p/n 874-842-27
36V dual string, 6', Alpha p/n 874-842-20
36V dual string, 9', Alpha p/n 874-842-28
48V single string, 6', Alpha p/n 875-841-21
48V single string, 9' Alpha p/n 875-841-25
48V dual string, 6', Alpha p/n 875-841-20
48V dual string, 9', Alpha p/n 875-841-24
3 Craft Port Cable (optional) Alpha p/n 875-349-10
4 RTS Cable (optional) Alpha p/n 745-178-21
5 Vin Sense (optional) Alpha p/n 875-493-21
6 Surge Protector Ground Block Alpha p/n 162-028-10
7 Vout Iout Sense Harness Alpha p/n 875-456-10
8 Tamper Wire Kit Alpha p/n 875-493-21
9
Plug-in Lightning Arrestor w/pass thru
(130V) L-G, L-n, n-G
Alpha p/n 162-046-10
9
Installation of the Vout and Iout sense harness requires powering down the power supply. Use an alternate
source of power during this procedure.
CAUTION!
