745-419-C3-001 Rev. A (02/2009) 4
The XM2 batteries are isolated from chassis ground by design. Any voltage potential difference between battery (-)
and chassis ground must be eliminated before installing the transponder to avoid potential transponder damage. To
accomplish this, attach a ground jumper between battery (-) and chassis ground before installing the transponder. Once
the transponder is installed the jumper may be removed if desired.
wArNiNG!
Connection instructions for the Alpha XM Series 2 Power Supply
Switch Battery Breaker OFF prior to removing the Inverter Module for USM2/USM2.5 Card installation and configuration.

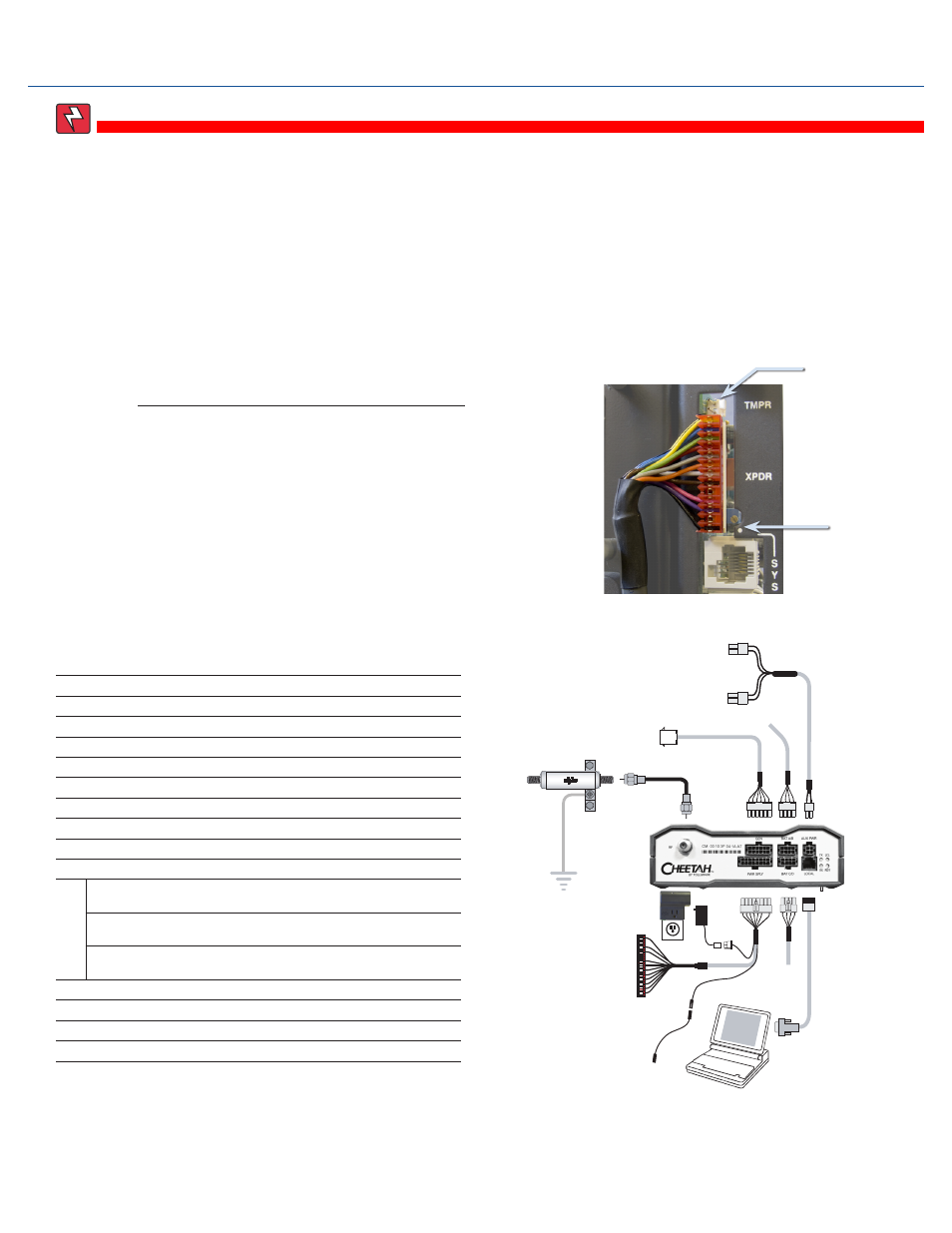

When connecting to an XM Series 2 power supply, plug the 13-pin
connector so the black wire is in pin1 and two open pins are left at
the top for tamper switch connection.
XM SerieS 2 Power SuPPly ConneCtion note :
Connections between transponder, power supply and laptop
1
2
3
4
5
6
7
8
9
Pin 1
Tamper switch
connector
Legend
1 Generator Interface (as needed) Alpha p/n 874-975-20
2, 5 Battery Sense Wire Kit for: 36V single string, 6', Alpha p/n 874-842-21
36V single string, 9', Alpha p/n 874-842-27
36V dual string, 6', Alpha p/n 874-842-20
36V dual string, 9', Alpha p/n 874-842-28
48V single string, 6', Alpha p/n 875-841-21
48V single string, 9' Alpha p/n 875-841-25
48V dual string, 6', Alpha p/n 875-841-20
48V dual string, 9', Alpha p/n 875-841-24
3 Ignition Battery/Aux Power Cable Alpha p/n 874-976-20
4
XM Series 2 Power Supply
Interface Cable
Alpha p/n 875-335-20 (USM2/2.5)
XM Series Power Supply
Interface Cable
Alpha p/n: 875-335-21 (USM)
AM Series Power Supply
Interface Cable
Alpha p/n: 875-335-21 (RPM)
6 Craft Port Cable (optional) Alpha p/n 875-349-10
7 RTS Cable (optional) Alpha p/n 745-178-21
8 Vin Sense (optional) Alpha p/n 875-493-21
9 Surge Protector Ground Block Alpha p/n 162-028-10
10
Plug-in Lightning Arrestor w/pass thru
(130V) L-G, L-n, n-G
Alpha p/n 162-046-10
10
