Alpha Technologies CXPS 48-1T 48V Pos Gnd - Manual (Page 48)

SIZE DWG NO. TYPE
B
SHEET
TITLE
ISSUE
DATE OF
TOLERANCES
SCALE
APPROVED
CHECKED
DRAWN
DESIGN MATERIAL
FINISH
FOR MANUFACTURING WITHOUT ITS WRITTEN CONSENT.
ARGUS TECHNOLOGIES AND SHALL NOT BE COPIED OR USED
THESE DESIGNS AND SPECIFICATIONS ARE THE PROPERTY OF
REVISIONS
LTR DESCRIPTION APPD DATE
REV
X.X 0.04"
X.XX 0.02"
X.XXX 0.01"
[X] 1mm
[X.X] 0.5mm
[X.XX] 0.25mm
053-392-08

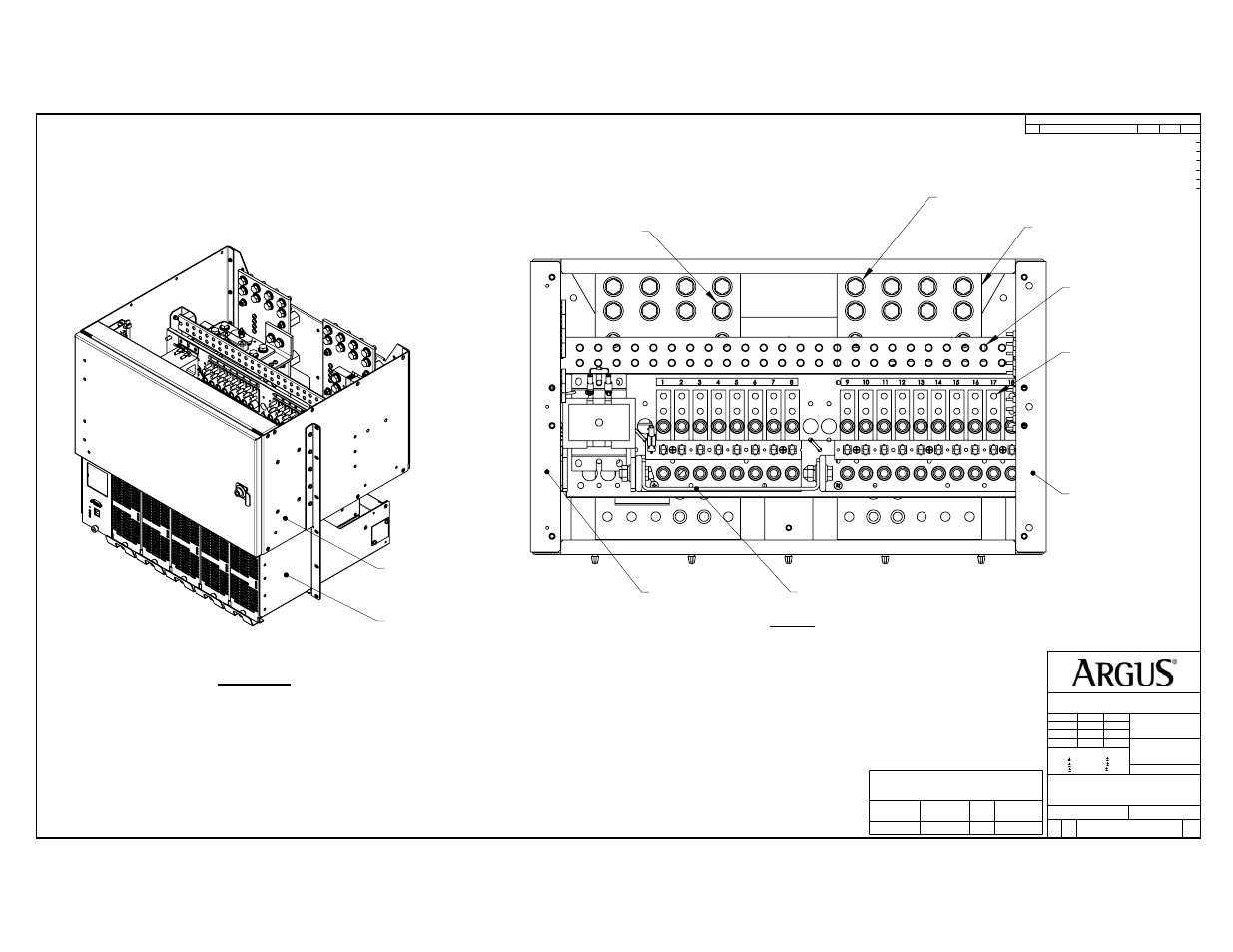

CONNECTION, CXPS 48-1T
CORDEX POWER SYSTEM
SEE B.O.M.
PER P.O. and
Doc. 070-024-83
1 3
BK
RP
2007/08
2007/08
D2
PART IDENTIFICATION
This part must be identified in accordance
with Argus document #071-014-10 by:
STAMPING
PART TAGGING
BOX PEN LABELING
PART
X
c 2005 ARGUS TECHNOLOGIES O
A
DIMENSIONS ARE IN INCHES WITH METRIC (mm) IN BRACKETS: INCHES [mm]
RP 2007/08
GS 2007/08
NTS
REV BY
DETAIL A
(DOOR NOT SHOWN)
DISTRIBUTION TIER E/W 8/10 SPLIT POS'N "AM" BREAKER MODULE W/600A LVD
037-163-20 JUMPER KIT
REMOVE WHEN USING FOR 24V DISTRIBUTION WITH OPTIONAL CONVERTERS
SEE DETAIL C
(SHT2)
SEE DETAIL D
(SHT2)
CIRCUIT BREAKER
OUTPUTS
1/4"-20 HARDWARE
ON 5/8" CENTERS
CIRCUIT BREAKER
RETURNS
1/4"-20 HARDWARE
ON 5/8" CENTERS
SITE GROUND
1 X 3/8"-16 HARDWARE
ON 1" CENTER
BATTERY RETURN
4 X 3/8"-16 HARDWARE ON 1" CENTERS
BATTERY HOT
4 X 3/8"-16 HARDWARE ON 1" CENTERS
SEE DETAIL A
053-392-20-000
SEE DETAIL B
(SHT3)
