6. Connect Coax cable to F-type connector. Torque to between 4.1 in-lbs and 6.1 in-lbs. See
Figure 2-2.
Installation tip: Pre-bend the cable before connecting to the circuit board. This will prevent
stress on the circuit board caused by contact between the closed door of the unit and the
coax cable.
2.0 Installation, continued
2.1 Installation and Connection, continued

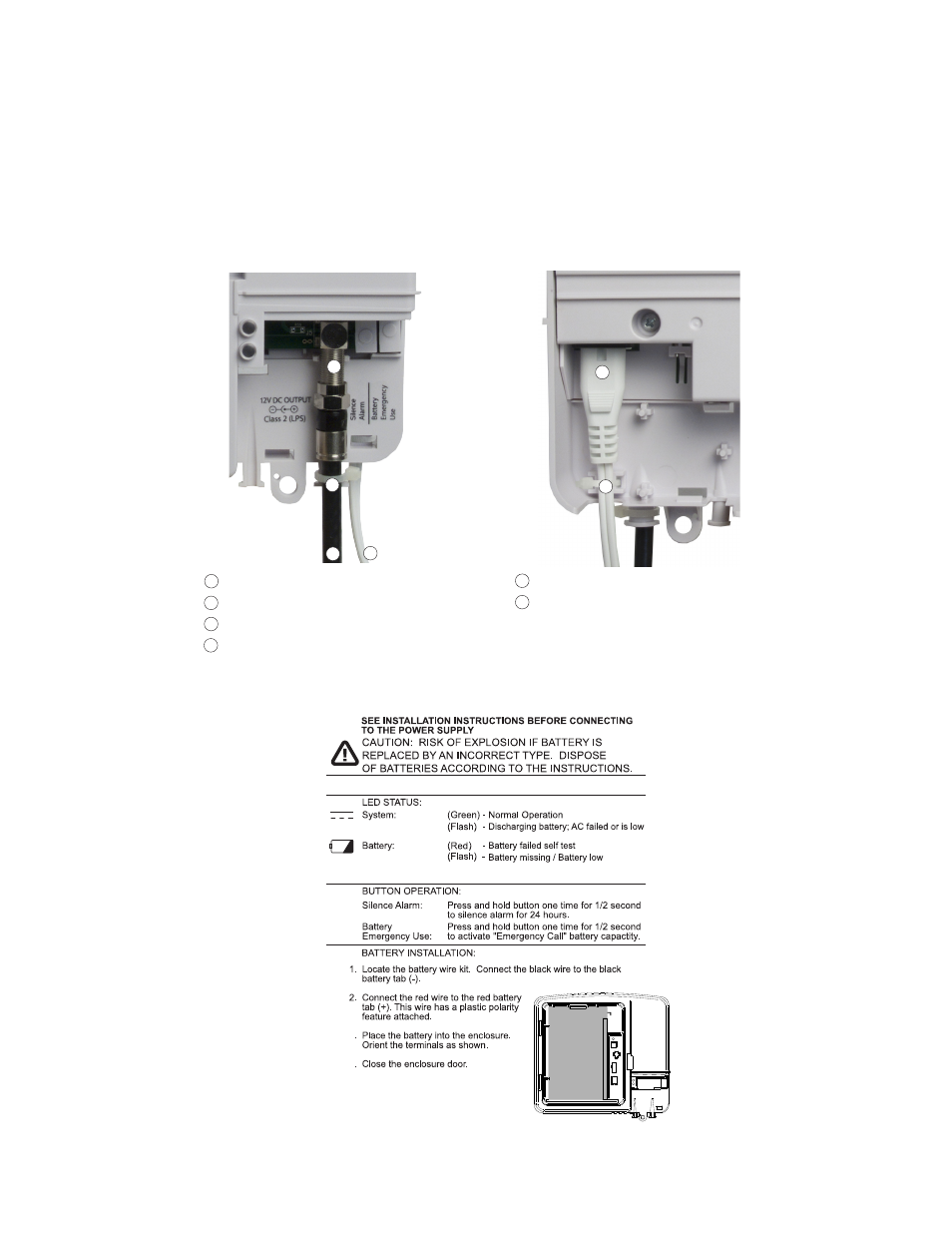

Fig. 2-2, FPR1207-F Output Cables and Connections
3
1 2
3
1
Output Coax Cable
AC Line Cord
12Vdc Output Connection
Cable tie
2
5 AC Input Connection
Cable tie
5
4
4
6
6
2 B
3
4
Fig. 2-3, Function List (Inside Lid of Enclosure)
11 010-344-B1-001 Rev. A (2/2014)
