M, MA STG CAble MounT
Technical Installation Data
8-18 × ¼ Screw
(2 Places)
Attach Spring Clip to the end cap. 1.
Slide a Flanged Mounting Stud into each 2.
lower track in each housing. (2 total)
Insert Top Light Seal halfway into one of the
3.
Housings.
Attach each Light Seal to an Aligner using
4.
the 8-18 × ¼ sheet metal screws provided
using the center hole in the seal.
Butt Housing B against Housing A while
5.
engaging Top Light Seal.
Engage slots in each Aligner assembly with
6.
Flanged Studs in lower track. Secure with
#8 nuts provided and tighten.
Snap faceplate into the 2 inch housing.
7.

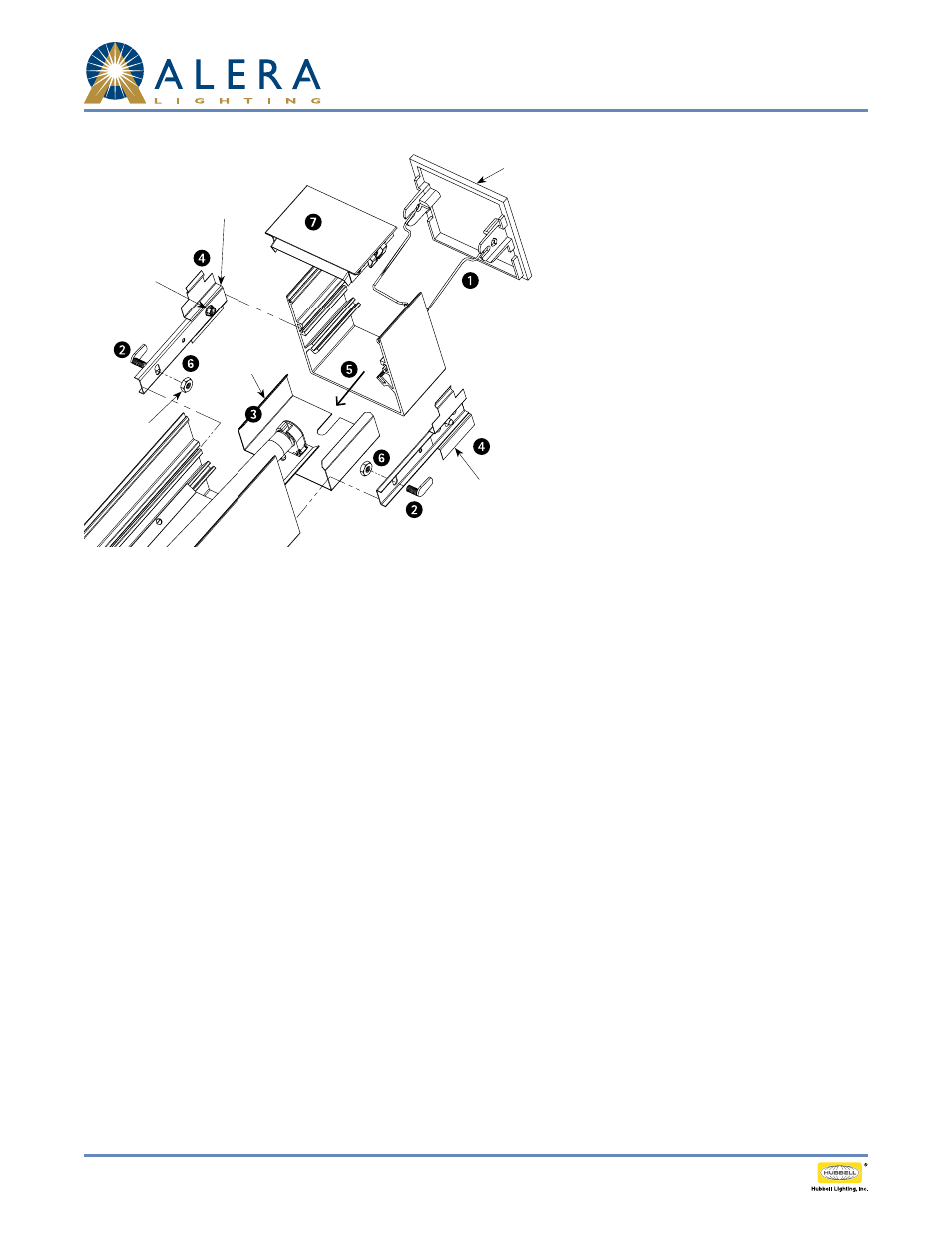

2 inCh end Module ConneCTion inSTruCTionS
End Cap
Housing B
Top Light Seal
#8 Nut
(2 Places)
Light Seal (2 Places)
Housing A
Aligner
(2 Places)
Faceplate
