Alera Lighting M, MA Staggered Cable Mount User Manual
M, ma stg cable mount, Technical installation data
© 2010 Alera Lighting, a division of Hubbell Lighting, Inc. Because of continuing product improvement programs, Alera Lighting reserves the right to change specifications
without notice. 701 Millennium Blvd. Greenville, SC 29607 / Tel 864.678.1000 / Tech Support 864.678.1580 / Website www.aleralighting.com
Page 1/3 Rev. 08/02/10
ReCeSSed / M, MA STG CM TID
M, MA STG CAble MounT
Technical Installation Data
Nominal Length
Weight
A
B
C
D
E
F
4'
18 lbs.
52⅜"
47"
2¹¹⁄₁₆"
47"
48"
196⅜"
8'
31 lbs.
100⅜"
95"
2¹¹⁄₁₆"
95"
96"
390⅜"
12'
44 lbs.
148⅜"
143"
2¹¹⁄₁₆"
143"
144"
580⅜"

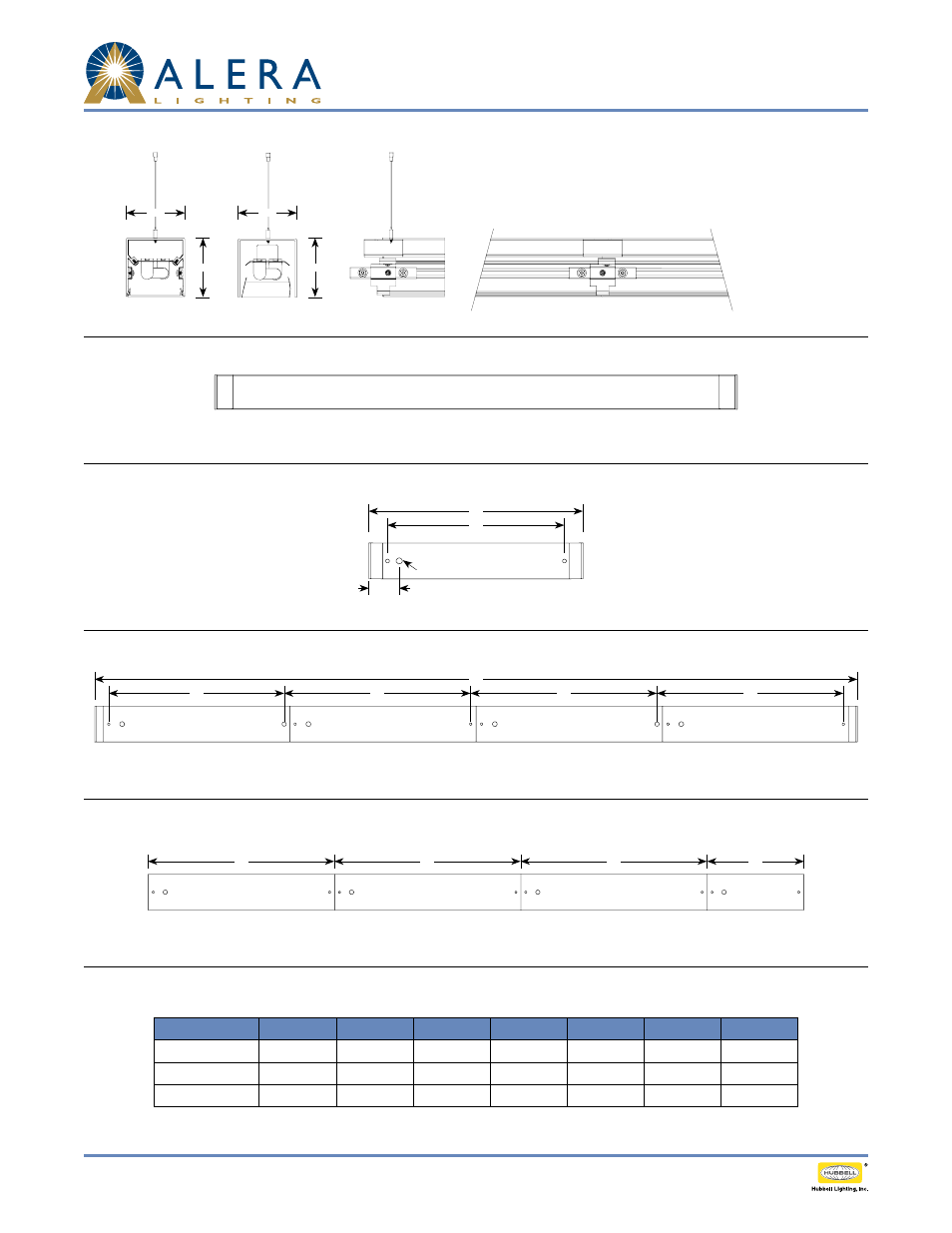

SinGle MounTinG (TypiCAl)
FACTory STAndArd (TypiCAl row wiThouT endCApS)
row MounTinG
dATA ChArT
MA STG
M STG
Intermediate Section
Connection Section
Single
(Shown with Lens)
CroSS SeCTionS
boTToM View
3½"
3½"
3½"
3½"
A
8'
8'
8'
4'
3.375"
0.625" K.O.
B
F
D
E
E
E
