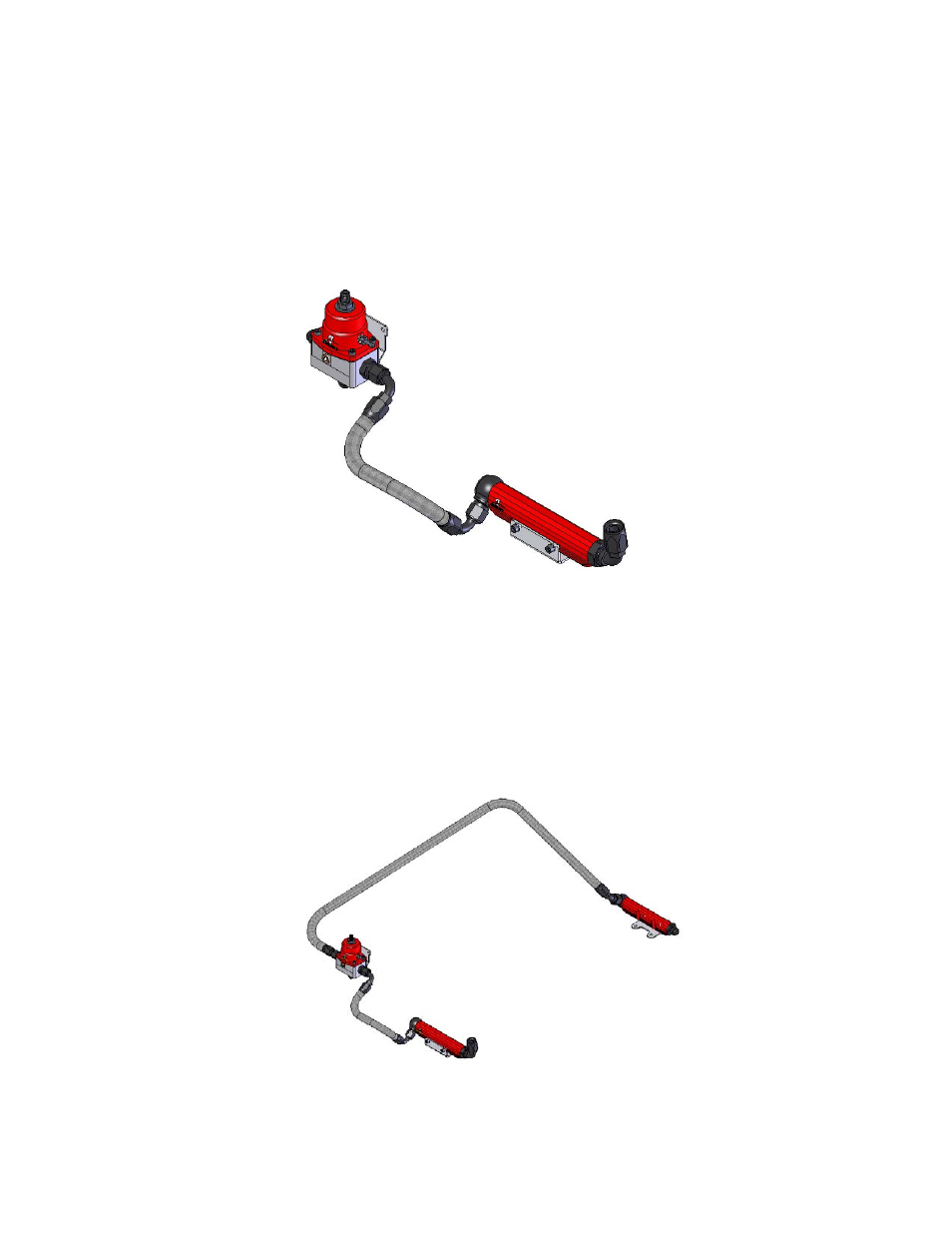

34. Connect one of the AN-06 90-degree hose ends to the fuel pressure regulator and a
second to the Banjo fitting located in the rear of the passenger (right) side fuel rail. Plan a
route for the line between the fuel pressure regulator and the rear of the passenger (right)
side fuel rail, measure the length of fuel line needed. See section titled Hose and Fitting
Assembly for fuel line assembly instructions. Once the hoses are assembled, ensure
there is no debris in the hose and install it
35. Connect one of the AN-06 45-degree hose ends to the Banjo fitting located on the rear of
the driver (left) side fuel rail and an AN-06 straight hose end to fuel pressure regulator.
Plan a route for the line between the fuel rail and the fuel pressure regulator, measure the
length of fuel line needed. See section titled Hose and Fitting Assembly for fuel line
assembly instructions. Once the hoses are assembled, ensure there is no debris in the
hose and install it.
