23. Reinstall intake manifold assembly replacing gaskets and retightening bolts as outlined in

factory service manual.

24. Find suitable place in the vehicle’s engine compartment to mount the Aeromotive

regulator, typically on or near the passenger side strut tower. Using the supplied
mounting bracket as a template, mark the bracket mounting holes and drill to accept a
#10 screw.

25. With the bracket attached to the regulator, mount the bracket and regulator to the vehicle

using two #10 screws, nuts and lock washers.

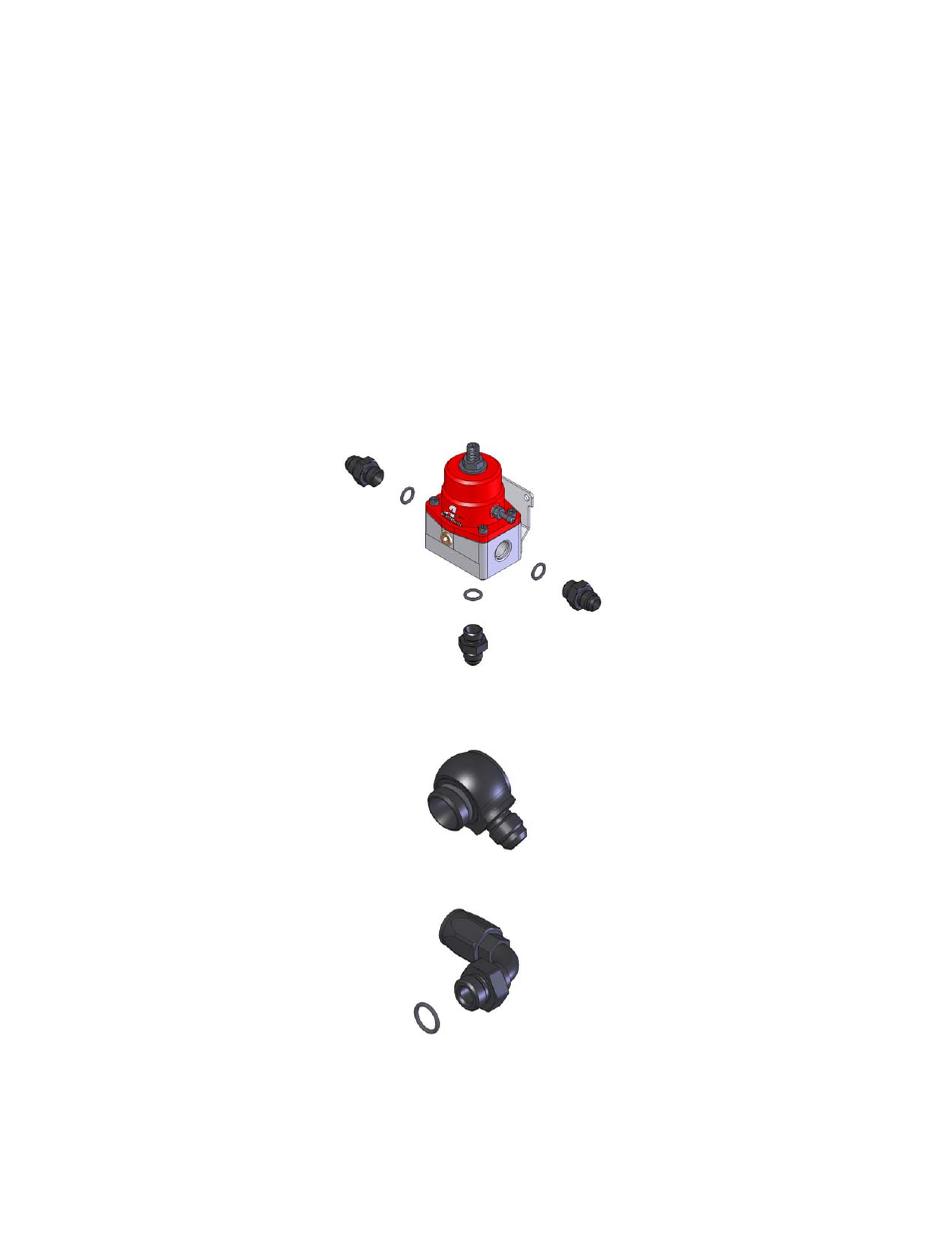

26. Install one AN-06 o-ring on each of the three AN-06 cutoff tapered flare fittings. Thread

the side of the AN-06 cutoff tapered fitting with the o-ring into each of the three AN-06
ports on the regulator.

27. Locate the two 90-Degree AN-08 to AN-06 Banjo fittings and insure that an AN-08 O-

ring is installed on the AN-08 Side of each.

28. Install one AN-08 o-ring on the AN-8 90-degree male ORB hose ends.
