1. Intended use

This converter is used for converting an HD-SDI camera signal into a HDMI interface. Using this converter it is
possible to connect the camera directly to a monitor with HDMI input (1080p25 resolution).
Additionally the converter is equipped with 2 active HD-SDI outputs (BNC). Using those outputs the camera
signal could be transmitted additionally to any HD-SDI monitor or HD-SDI digital video recorder.

A detailed description of all functions can be found in chapter „3 Features and functions“.

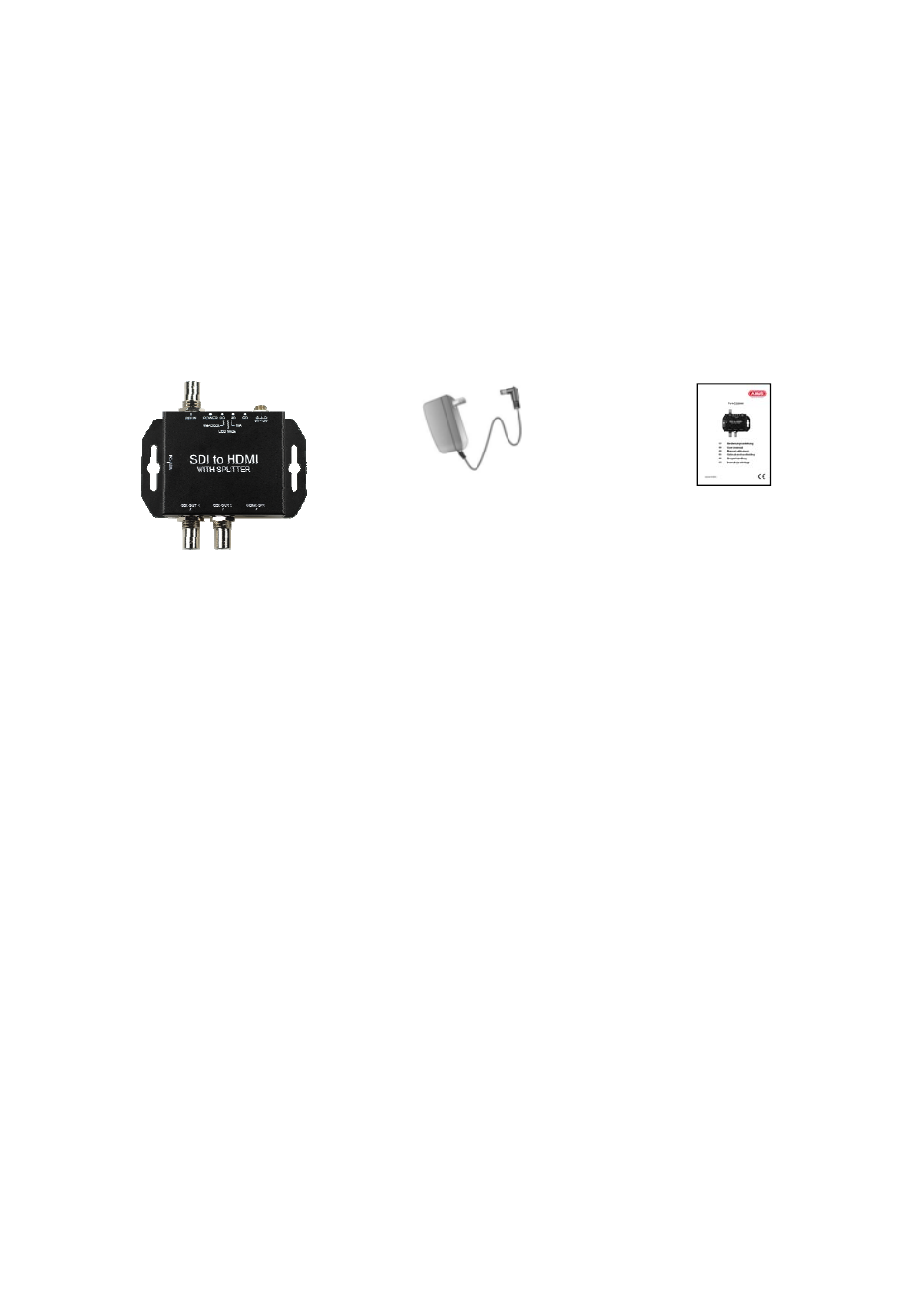

2. Scope of delivery

HD-SDI / HDMI converter

Power supply

User manual

3. Features and functions

• Conversion of a HD-SDI signal into HDMI interface

• HD-SDI standard SMPTE292M

• Status LED for signal quality

• Supported formats: 720p50, 720p60, 1080i50, 1080i60, 1080p24, 1080p25, 1080p30, 1080p50,

1080p60, 2K (2048 x 1080)

• Plug & Play installation

• Dual-mode: HDMI (1x) and HD-SDI (2x)
