ABUS TVVR41210 Quick operating instructions - Manual (Page 21)

21
English

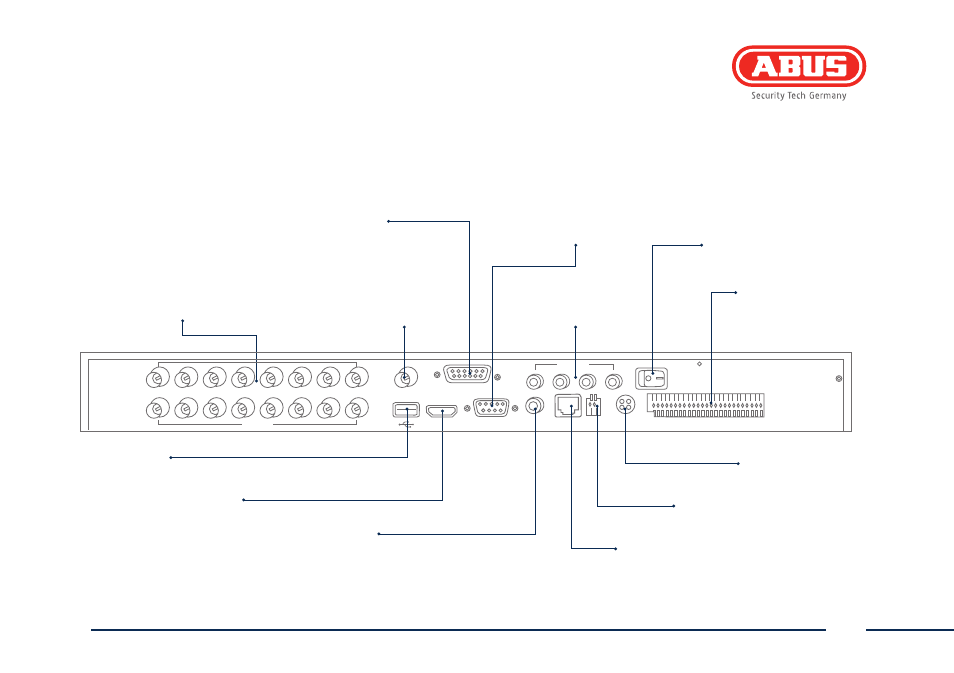

Video IN
BNC input for analogue cameras
Video Out
spot output
Audio IN
cinch inputs
Power
on and off device switch
Alarm IN / Alarm OUT
max. 16 alarm inputs,
max. 4 relay outputs
12 V DC
connection for power supply
RS-485
connection for PTZ cameras
LAN
RJ45 port for a network connection
Loop out
each camera input is looped
here and output again
USB
connection for USB devices
VGA
VGA monitor connection
(9-pin), video output signal
Audio Out
cinch audio output (synchronised
with the video output)
HDMI
HDMI monitor connection
1
9
2
10
3
11
4
12
5
13
6
14
7
15
8
16
POWER
12V VGA HDMI LAN RS-485 AUDIO OUT IN — ALARM — OUT
LOOP OUT
AUDIO IN
1 2 3 4
VIDEO IN
VIDEO OUT
